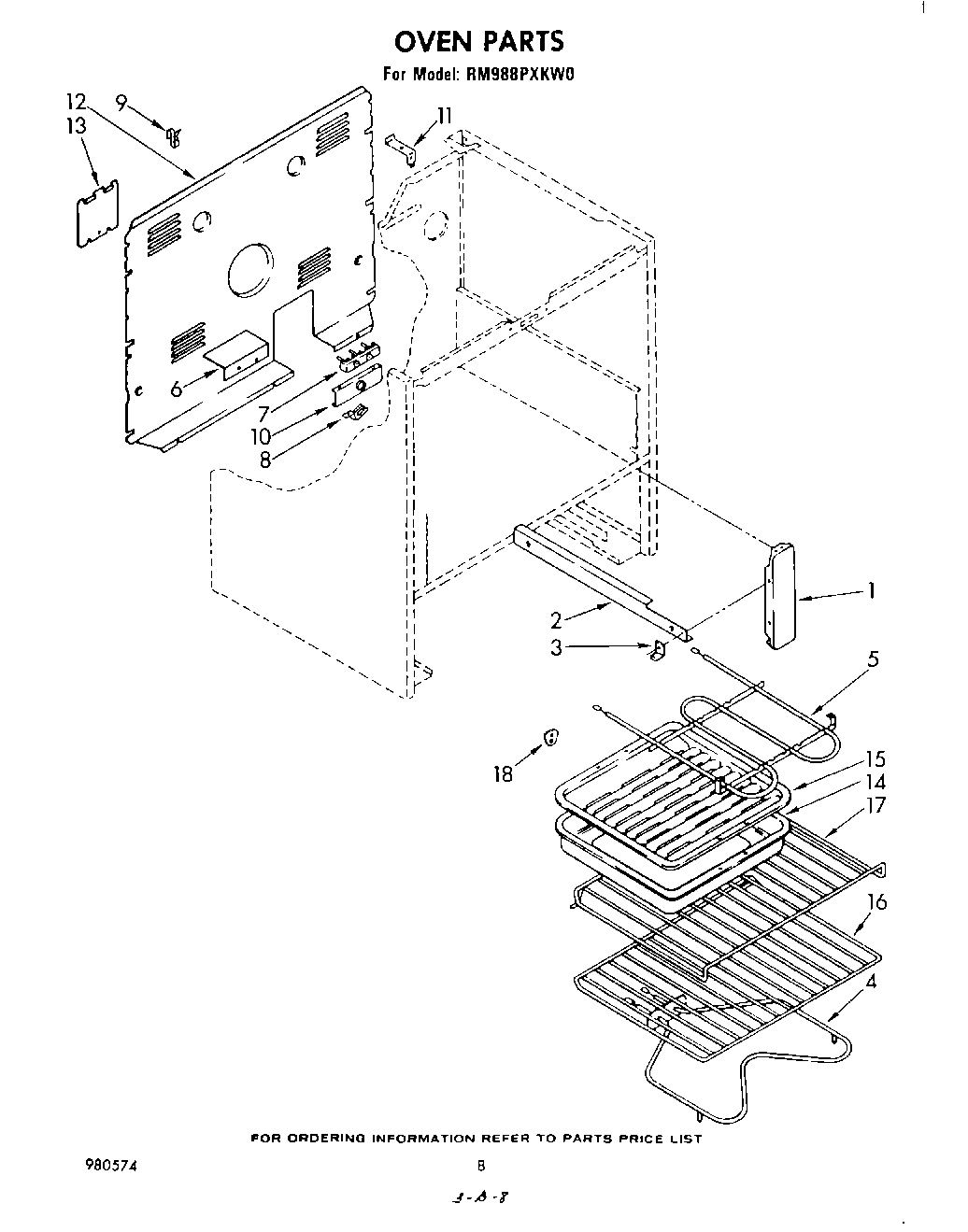

RM988PXKW0 05 – OVEN (CONTINUED)

RM988PXKW0 05 – OVEN (CONTINUED)

Written by

in

RM988PXKW0 05 – OVEN (CONTINUED)

Products

PositionProduct
1Bracket, Mounting (2)
2rail l.h. (includes illus. 3)
2WP308685 Whirlpool Microwave Screw
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw, 10-32 x 5/8 (4)
6Shield, Cook/Counter
7WP8203546 Whirlpool Terminal Block
7W10841059 Whirlpool Screw
7WP112432 Whirlpool Nut Assembly
8SCREW
8WPL 308498
9WPL 309211
10Bracket, Service
11WPL 309102
12Cover, Rear
13WP308544 Whirlpool Screw
13Cover, Service
14Pan, Broiler
15Rack, Broiler
16WPL 308173
17WPL 308172
18WPL 311982
