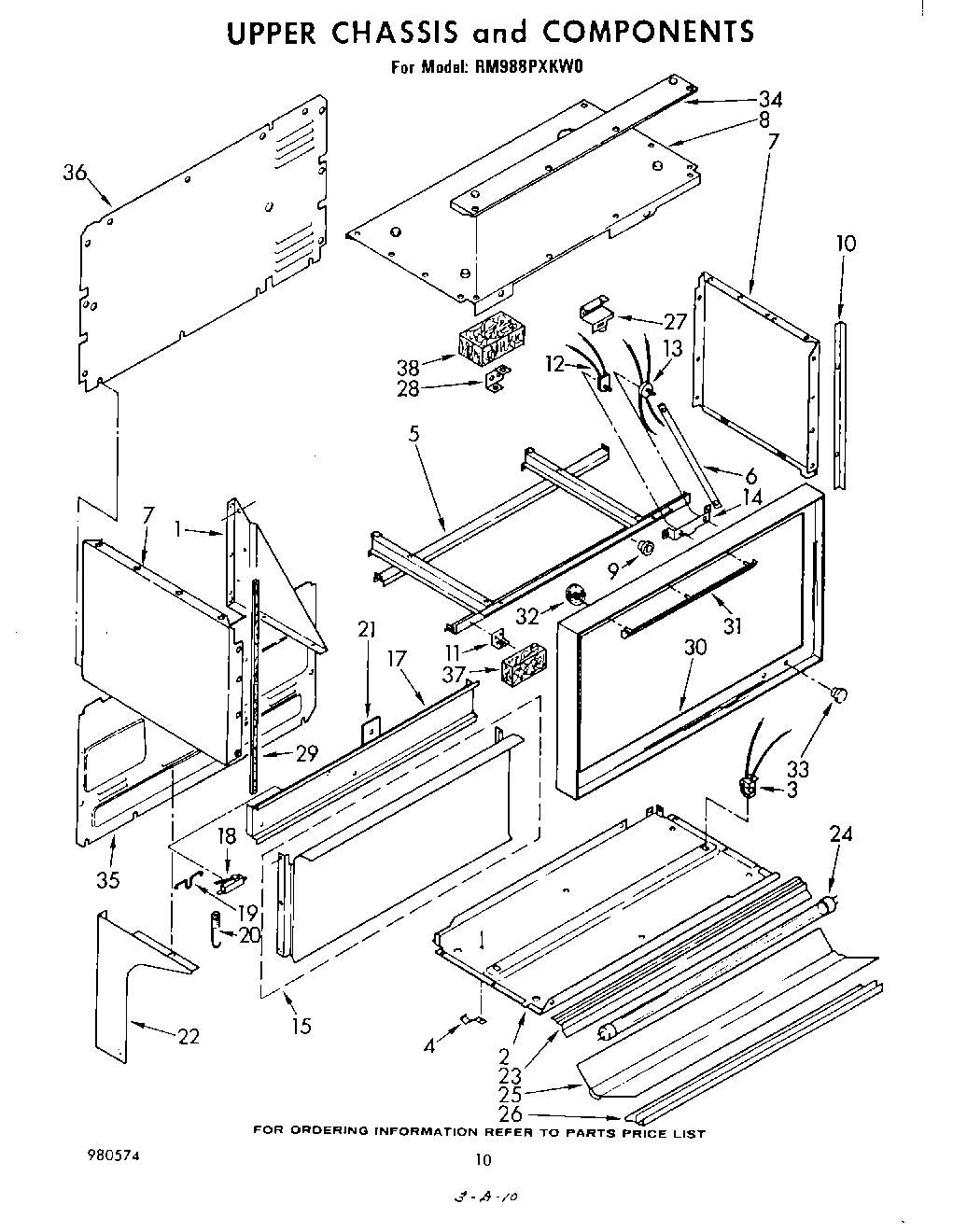

RM988PXKW0 06 – UPPER CHASSIS AND COMPONENTS

Products

Position	Product
1	gusset, r.h.
1	Clip ``J`` (2)
1	Gusset, L.H.
2	Panel, Side L.H. (Screw, 10A x 1/2 (2))
2	WPL 309506
3	Socket Assembly, R.H.
3	Socket Assembly, L. H.
3	Screw
4	spring, glass (4)
5	Frame, Oven Support
6	Strap, Support (2)
7	Panel, Side R.S. (Almond)
7	Panel, Side L.H. (Almond)
7	Panel, Side R.S. (Golden Harvest)
7	Panel, Side R.S. (White)
7	Panel, Side R.S. (White)
7	Panel, Side R.S. (Golden Harvest)
8	Support-Top Burner
8	WPL 309509
8	WPL 309512
8	WPL 309513
9	Snap Bushing
10	WP965173 Whirlpool Dishwasher Screw
10	WPL 309629
11	WPL 309454
12	Support-Storage Drawer (Lt. or Rt.)
13	nut, 3/8 x 27
13	WPL 309550
14	WPL 309455
15	WPL 328509
17	WPL 308776
18	WPL 309448
18	Screw
19	WPL 310347
20	WPL 309447
21	panel, top (screw, 10a x 3/8 (3))
21	WPL 309229
22	Trim, End R.H. (Golden Harvest)
22	Trim, End R.H. (White)
22	Trim, End R.H. (Golden Harvest)
22	WPL 328150
22	WPL 308980
22	WPL 328154
22	Bracket-Insulation Retainer (Lt. or Rt.)
22	WPL 310304
22	Screw (10-12 x .875)
22	WP308544 Whirlpool Screw
24	WP95292 Whirlpool Fluorescent Light Bulb
25	WPL 328306
26	WPL 308897
27	WPL 311953
28	WPL 309453
29	Seal, Light
30	WP488627 Whirlpool Refrigerator Screw
30	WPL 309500
31	WPL 309499
32	Pushnut, Ziptwist (3)
33	bezel, switch (2)
34	WPL 309501
34	Screw, 8A x 3/8 (2)
35	WPL 308112
36	WPL 309507
36	SCREW
37	WPL 311931
38	WPL 311930
