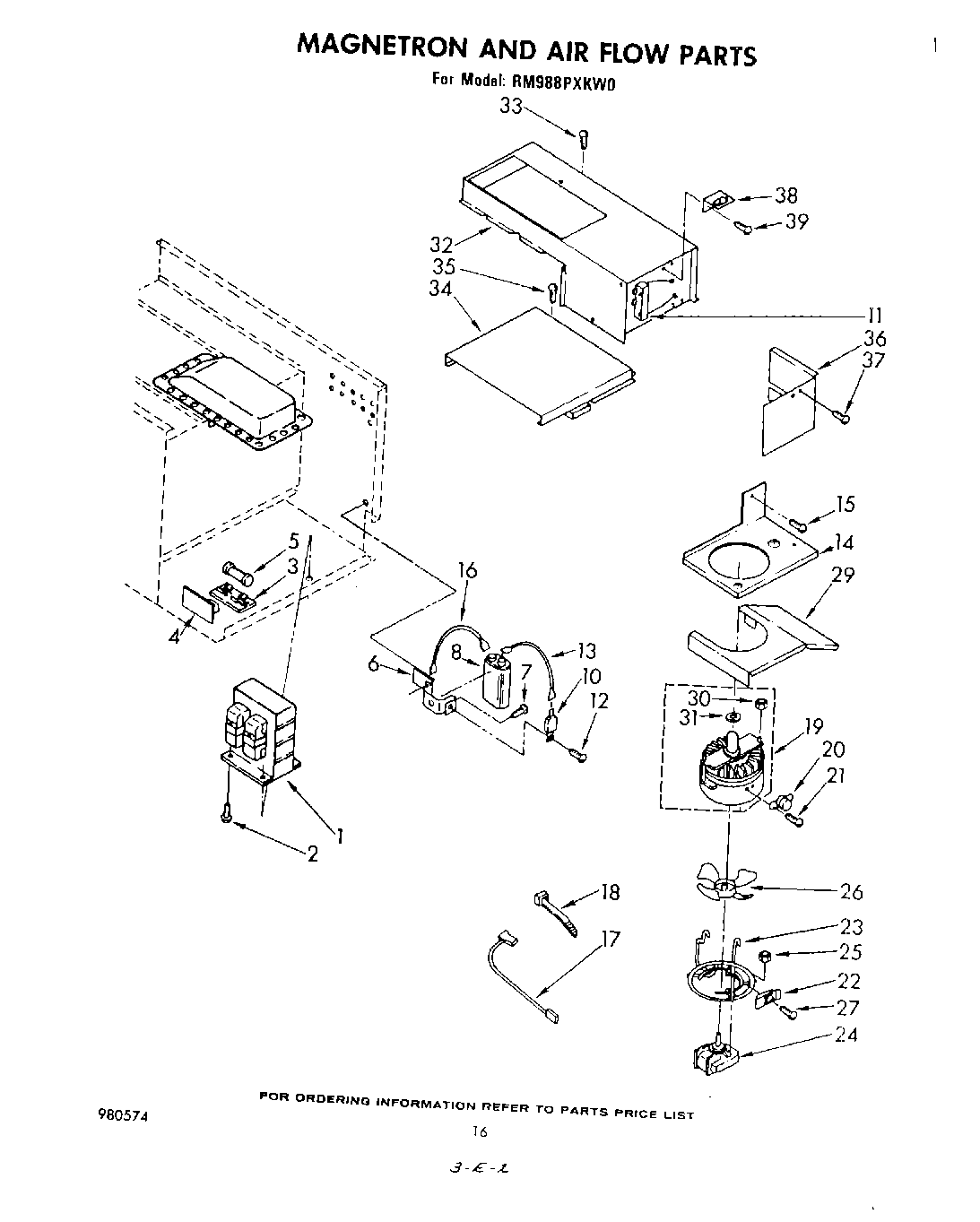

RM988PXKW0 09 – MAGNETRON AND AIR FLOW

RM988PXKW0 09 – MAGNETRON AND AIR FLOW

Written by

in

RM988PXKW0 09 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
2Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3Block, Fuse
4Shield, Fuse
5WPW10017410 Whirlpool Fuse
6Bracket, Capacitor
7Main Chassis (Screw, 10-32 x 1/2)
8Cabinet Side (Left)
8Cabinet Side (Right)
10Rectifier, High Voltage
11Relay, Reed
11Reed Relay (Alternate)
12WPL 310629
13WPL 311466
14Duct, Bottom Air
16WPL 311467
17Wire, High Voltage (Capacitor)
18WPW10339879 Whirlpool Wire Tie
19Magnetron
20Thermostat
21Screw
22fastener, speed nut
23mount, fan motor
24Motor, Fan
25Nut
26Blade, Fan
27SCREW
29Shield, Magnetron
30Flange Nut (4)
31Gasket, Magnetron (Use W/Panasonic Magnetron)
32Platinum
34Duct, Discharge
36Baffle, Air
37WP965173 Whirlpool Dishwasher Screw
38Bracket, Receptacle
39panel, top (screw, 10a x 3/8 (3))
