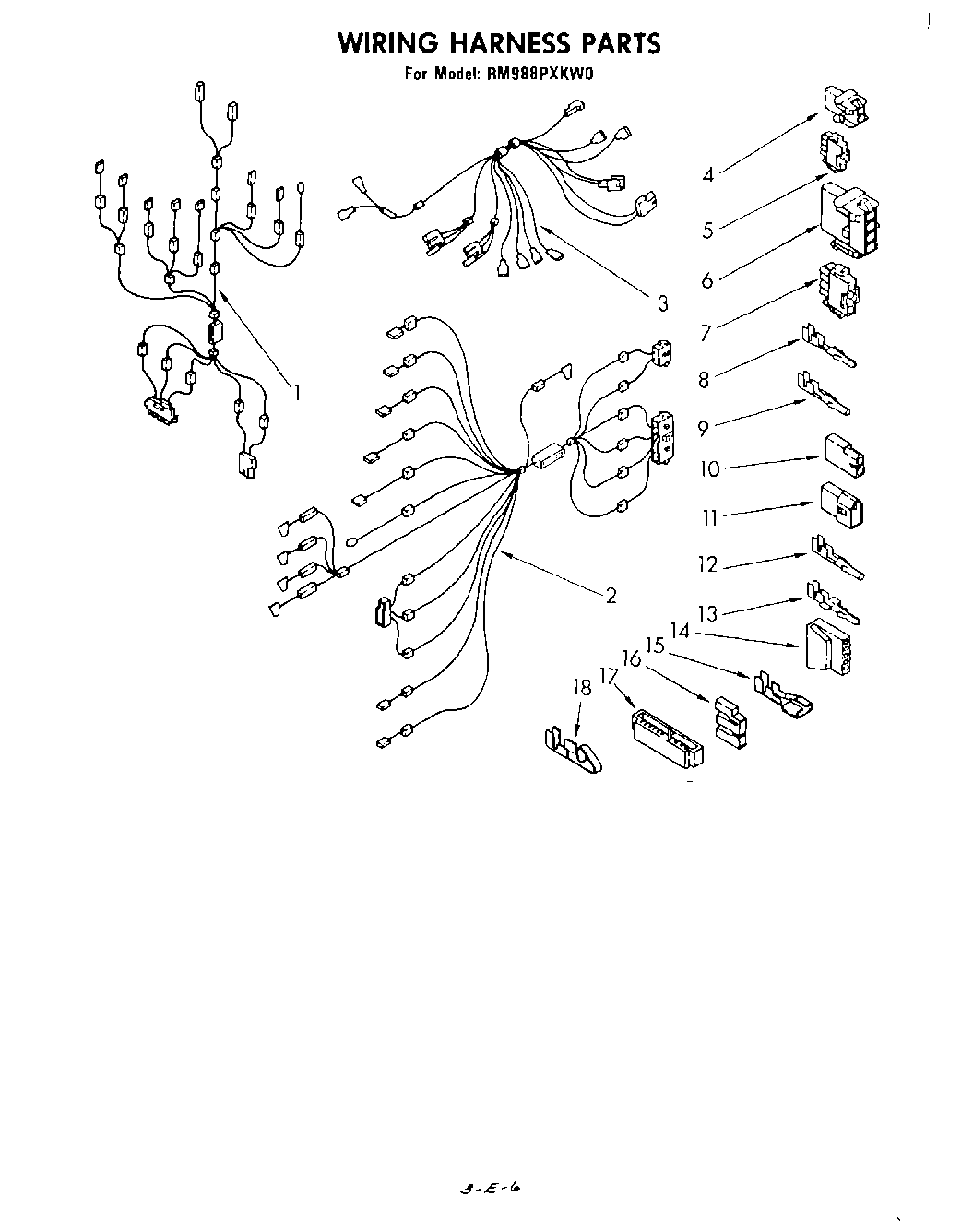

RM988PXKW0 11 – WIRING HARNESS

Products

PositionProduct
1harness, main
2Harness, Control Panel
2Harness, Circuit Board
3Harness, Interlock
4cap, terminal (uses 310222 or 310223 pin terminal)
5plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Disconnect Block (4 Terminal)
8Harness, Wiring (Connector (11))
9Harness, Wiring (Connector (6))
10Receptacle, Latching (2-Way) (Uses Terminal 94614)
11WP717253 Whirlpool Dishwasher Connector
12WP94614 Whirlpool Terminal
13WP596797 Whirlpool Terminal
14Connector, Housing Relay
15Term Or
16Housing, Plug
17WPL 309606
18Terminal
