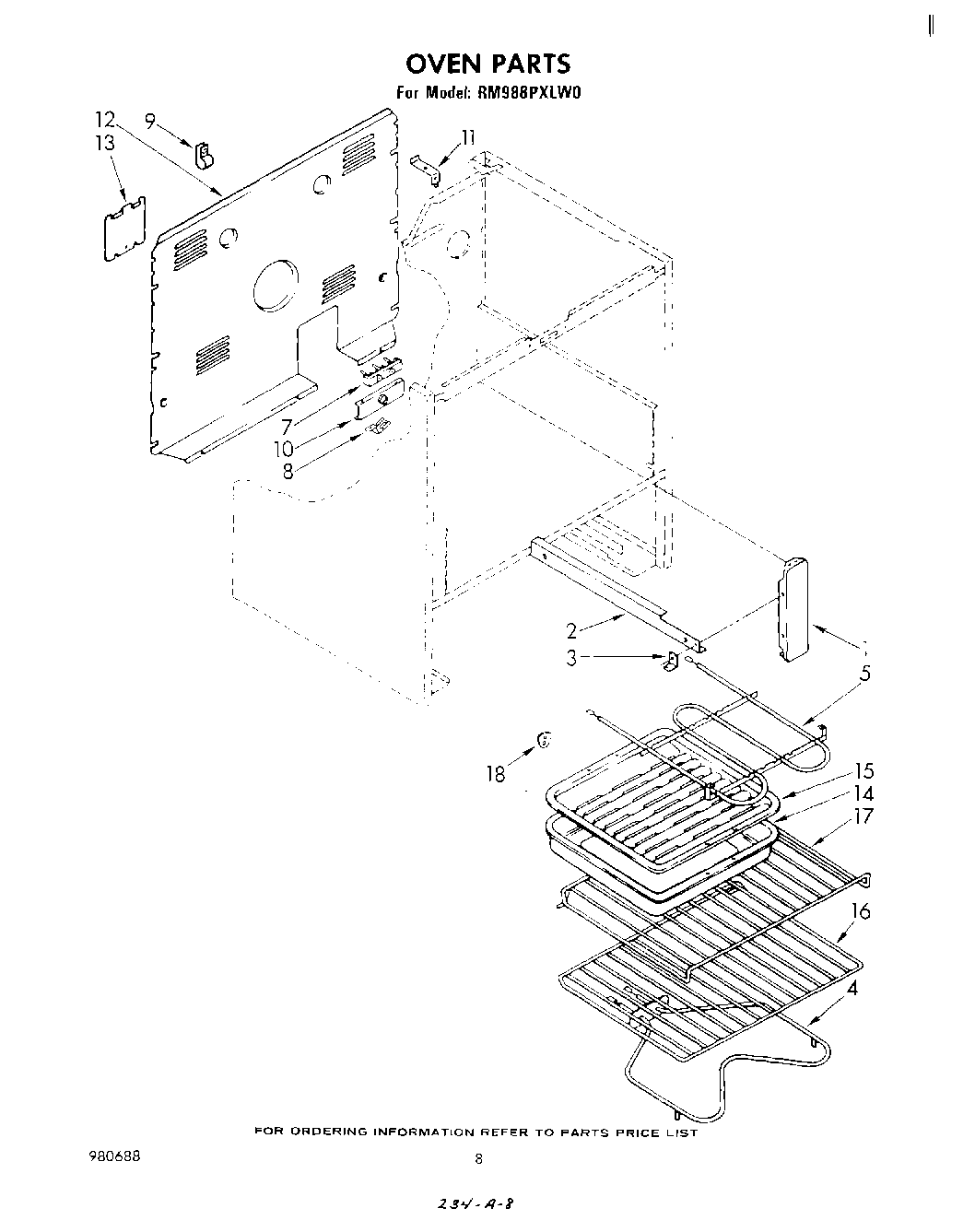

RM988PXLW0 05 – OVEN (CONTINUED)

Products

PositionProduct
1Bracket, Mounting (2)
2WP308685 Whirlpool Microwave Screw
2Rail R.H. (Includes Illus. 3)
2rail l.h. (includes illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw, 10-32 x 5/8 (4)
7WP112432 Whirlpool Nut Assembly
7WP8203546 Whirlpool Terminal Block
7W10841059 Whirlpool Screw
8SCREW
8WPL 308498
9Screw (2)
9WP488366 Whirlpool Refrigerator Clamp
10Bracket, Service
11WPL 309102
12Cover, Rear
13Cover, Service
13WP308544 Whirlpool Screw
154396923 Whirlpool Broil Pan Set Gray Porcelain
16WPL 308173
17WPL 308172
18WPL 311982
