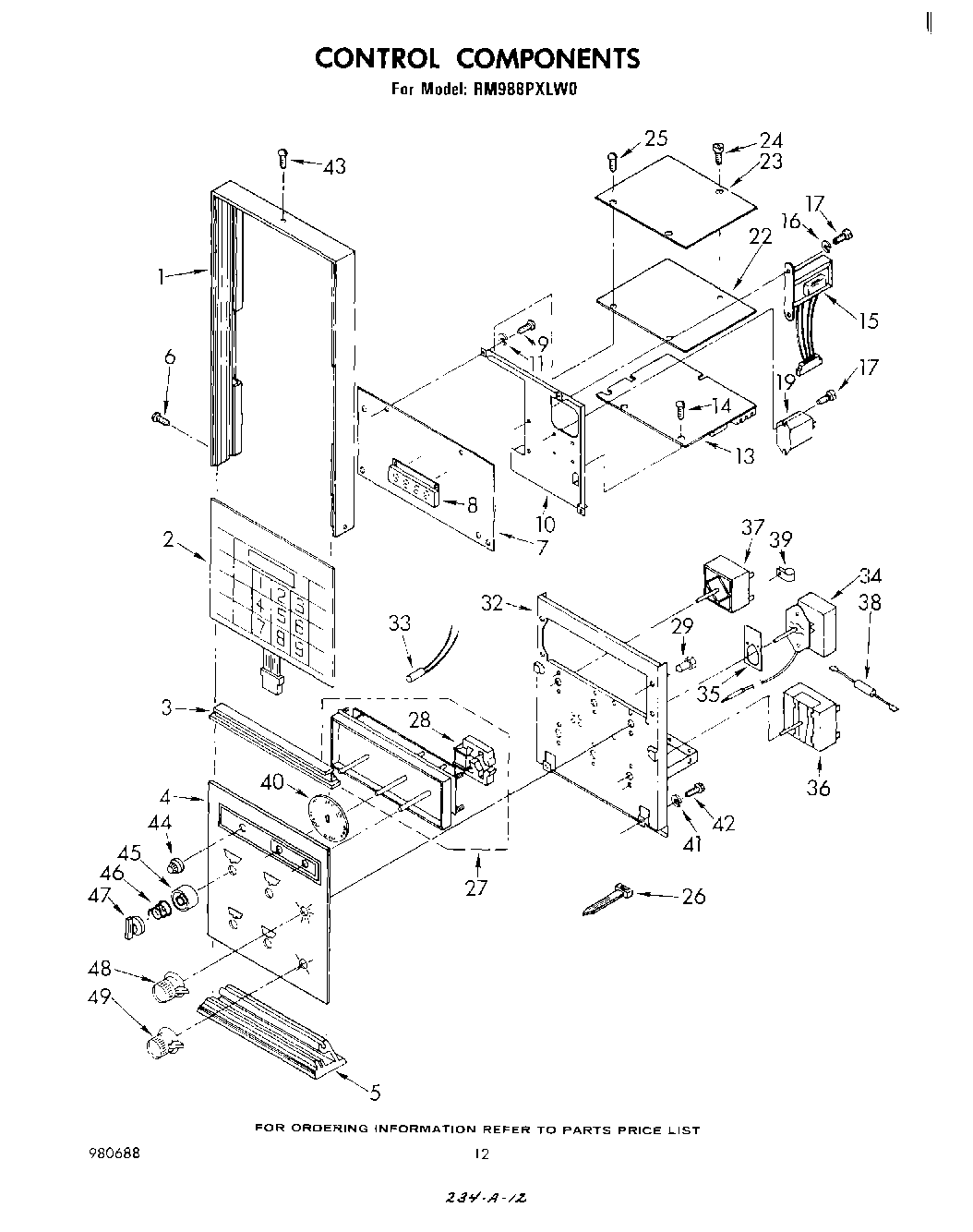

RM988PXLW0 07 – CONTROL COMPONENTS

Products

Position	Product
1	Frame, Control Panel
2	Touch Module
3	Splice Panel
4	Support-Top Burner
4	Control Panel, Glass
5	Cap, Control Panel
6	NAMEPLATE
7	clip, clock to socket (2)
7	Display Assembly (Includes Illus. 8)
8	clock, l.e.d.
10	Bracket, P.C. Board
13	Powe
15	WP313808 Whirlpool Screw
15	Transformer & Harness Assembly
19	Screw
19	relay power (12 v.d.c.) (alternate)
19	relay power (12 v.d.c.) (alternate)
22	Microcomputer Assembly
23	Catch-Storage Door 18850A Models
24	WPL 310951
25	WPL 309080
26	WPW10339879 Whirlpool Wire Tie
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
32	Bracket, Control Mounting
33	Light, Indicator (250V) (7)
34	Thermostat (Lower Oven)
35	Insulator
35	screw, 6-32 x 1/4 (2)
36	Switch, Selector (Pyro)
37	switch, infinite (4)
37	Screw, 8-32 x 3/16 (2)
38	Resistor & Terminal Assembly
39	WP308605 Whirlpool Refrigerator Clamp
39	488946 Whirlpool Air Conditioner Clamp
39	WP965173 Whirlpool Dishwasher Screw
40	Dial, Surface Units (4)
41	Lockwasher
42	WP486754 Whirlpool Compactor Screw
43	Screw
44	knob, timer
45	Bezel, Knob (4)
46	spring, bezel (4)
47	knob, control
48	Knob, Thermostat
49	Knob, Selector
