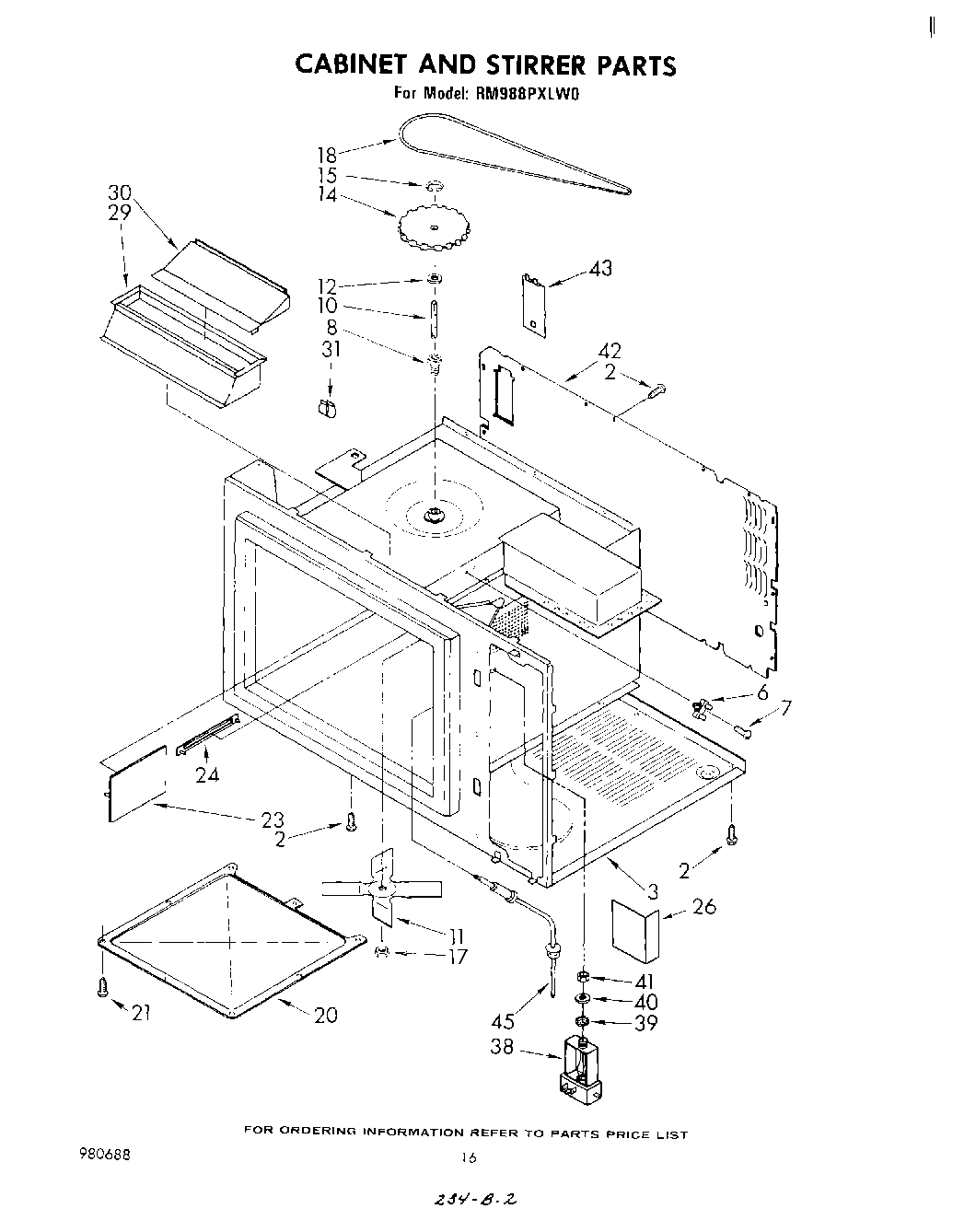

RM988PXLW0 09 – CABINET AND STIRRER

Products

PositionProduct
3Base, Cabinet (Not Serviceable)
6Fuse, Thermal
7Screw
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18Belt, Drive
20Cover, Stirrer
21Fastener (2)
23Shield, Exhaust Probe
24Cover, Rivet
26Shield, Exhaust
29Baffle, Air Exhaust
30Air Deflector
31Clip, Air Cover (3)
38Jack, Probe
39Washer, Internal Lock
40Washer
41Nut
42Cover, Rear
42SCREW
43Cover, Light
43WP308685 Whirlpool Microwave Screw
45temperature probe (alternate)
45temperature probe (alternate)
