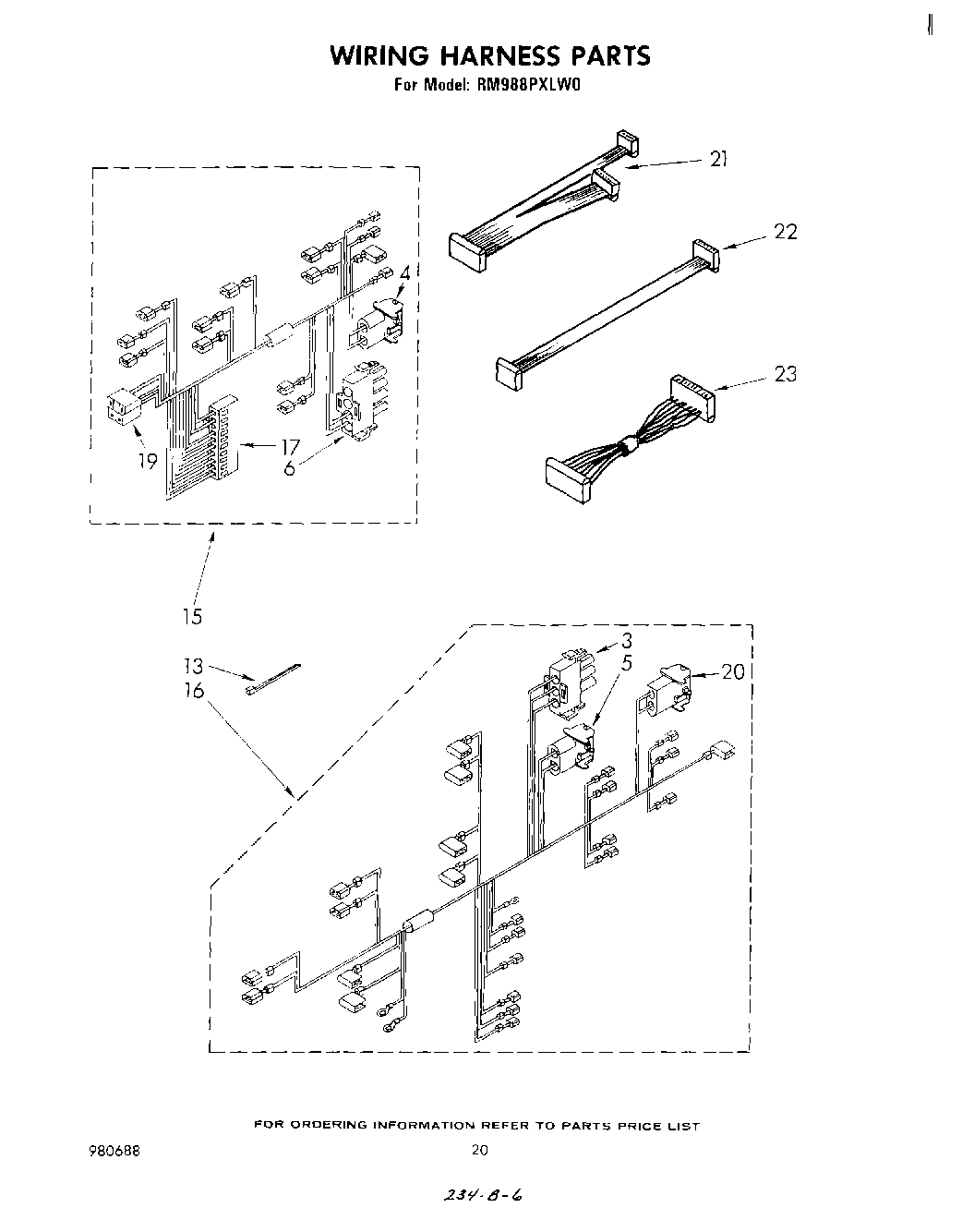

RM988PXLW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

RM988PXLW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

Written by

in

RM988PXLW0 11 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamel, Black (1 Qt. Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
10Housing, Plug
11WP248562 Whirlpool Terminal
13WPW10339879 Whirlpool Wire Tie
15Harness Control Panel
16Harness, Interlock
17housing, ten-circuit connector
19WPL 308568
20Receptacle, Latching (2-Way) (Uses Terminal 94614)
21Display Harness
22Power Supply Harness
23WPL 799351
23261900 Whirlpool Microwave Spray
23WPL 308500
23WP75614 Whirlpool Connector
23WPL 980688
23WPL 312554
23Touch-Up, Oven
23Rack, Meat (Micro)
23WPL 311432
23Touch Harness
23Browning Tray (Micro)
23WPL 309600
23WPL 310848
23WPL 310053
23350930 Whirlpool White Spray Paint
23Grease
23Leveler (Thinner) (2oz.)
23285006 Whirlpool Spray
23Wire, 25“ Roll (White 14 GA.)
23Wire, 25` Roll (Red 14 Ga.)
23Wire, 25` Roll (Black 14 Ga.)
23WPW10208653 Whirlpool Insulation
23WPL 799832
23511873 Whirlpool Refrigerator Paint
23350942 Whirlpool Spray Paint
23Golden Harvest
2372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23WP72107 Whirlpool Touchup
2372017 Whirlpool Appliance Touch-Up Paint White
2372032 Whirlpool Touch Up Paint Black
23WP482338 Whirlpool Refrigerator Adhesive
23242831 Whirlpool Oven Wire
23Rotisserie Kit
23WPL 591014
231
23Wire (14 Ga. 200 c Brown)
2318 Ga. 80~c Rating (Red)
23Wire (12 Ga. 150 c Black)
23Wire (14 Ga. 150 c Yellow)
23Wire (14 Ga. 150 c Orange)
23Wire (14 Ga. 150 c Green)
23Wire (14 Ga. 150 c Brown)
23Wire (14 Ga. 150 c Blue)
23WP261869 Whirlpool Microwave Paint
23350956 Whirlpool Spray Assembly
