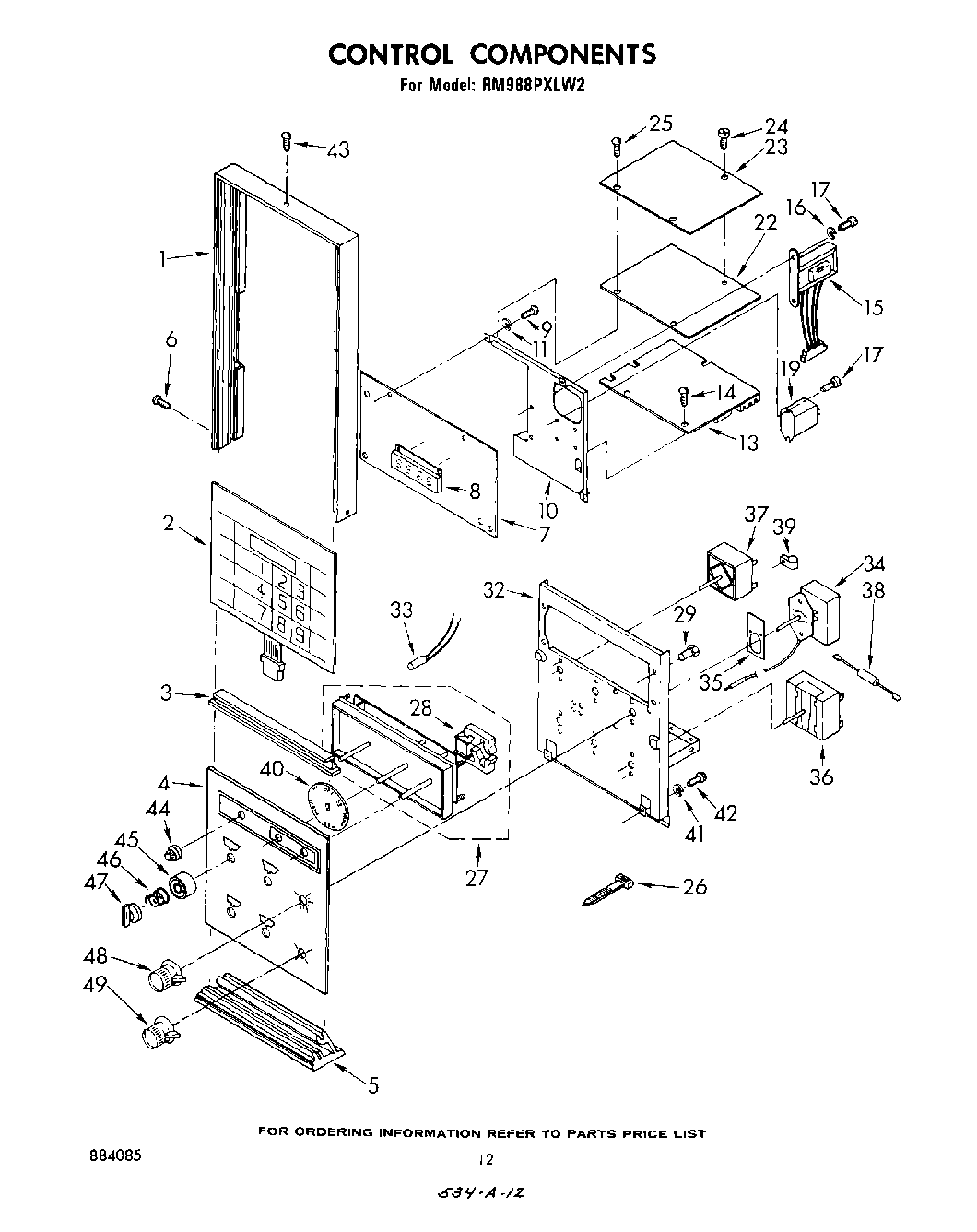

RM988PXLW2 07 – CONTROL COMPONENTS

RM988PXLW2 07 – CONTROL COMPONENTS

Written by

in

RM988PXLW2 07 – CONTROL COMPONENTS

Products

PositionProduct
1Frame, Control Panel
2WPL 312618
3Splice Panel
4Control Panel, Glass
4Support-Top Burner
5Bottom Cap, Control Panel
6NAMEPLATE
7clip, clock to socket (2)
7Display Assembly (Includes Illus. 8)
8clock, l.e.d.
10Bracket, P.C. Board
13Powe
15Transformer & Harness Assembly
19relay power (12 v.d.c.) (alternate)
19relay power (12 v.d.c.) (alternate)
19Screw
22Microcomputer Assembly
23Catch-Storage Door 18850A Models
24WPL 310951
25WPL 309080
26WPW10339879 Whirlpool Wire Tie
27Timer
28Motor, Timer
29Nut, Aluminum (4)
32Bracket, Control Mounting
33Light, Indicator (250V) (7)
34Thermostat (Lower Oven)
35screw, 6-32 x 1/4 (2)
35Insulator
36Switch, Selector (Pyro)
37Screw, 8-32 x 3/16 (2)
37switch, infinite (4)
38Resistor & Terminal Assembly
39488946 Whirlpool Air Conditioner Clamp
39WP308605 Whirlpool Refrigerator Clamp
39WP965173 Whirlpool Dishwasher Screw
40Dial, Surface Units (4)
41Lockwasher
42WP313808 Whirlpool Screw
43Screw
44WPL 312808
45Bezel, Knob (4)
46spring, bezel (4)
47Knob, Control (4)
48Knob, Thermostat
49WP688805 Whirlpool Spring Clip
49Knob, Selector
