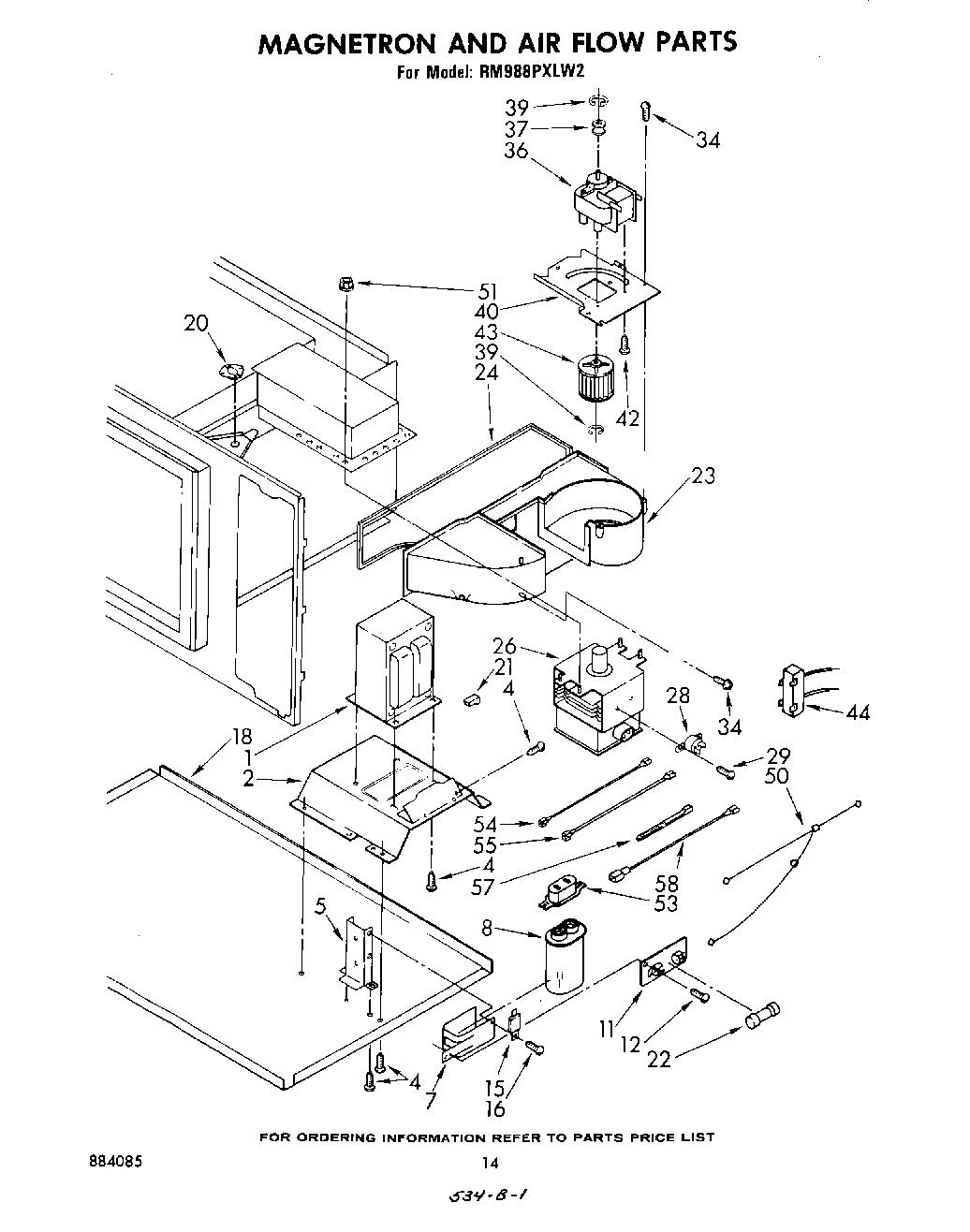

RM988PXLW2 08 – MAGNETRON AND AIRFLOW

RM988PXLW2 08 – MAGNETRON AND AIRFLOW

Written by

in

RM988PXLW2 08 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Transformer (Alt.)
1Transformer (Alt.)
2Bracket, Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
7Strap, Capacitor
8Capacitor (Alt.)
8capacitor (alt.)
11Screw (2)
12WP489069 Whirlpool Compactor Screw
15Rectifier, High Voltage
18Base, Chassis (Not Serviceable)
20screw
20Thermostat
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermostat
29Screw, 6A x 3/8 (2)
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Motor (Alt.)
36Motor (Alt.)
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Reed Relay (Alt.)
44Reed Relay (Alt.)
50Cable, Support
51Flange Nut (4)
53Cover, Capacitor
54Jumper, High Voltage (Black 5-1/2“)
55Jumper, High Voltage, Red (7-7/8“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
