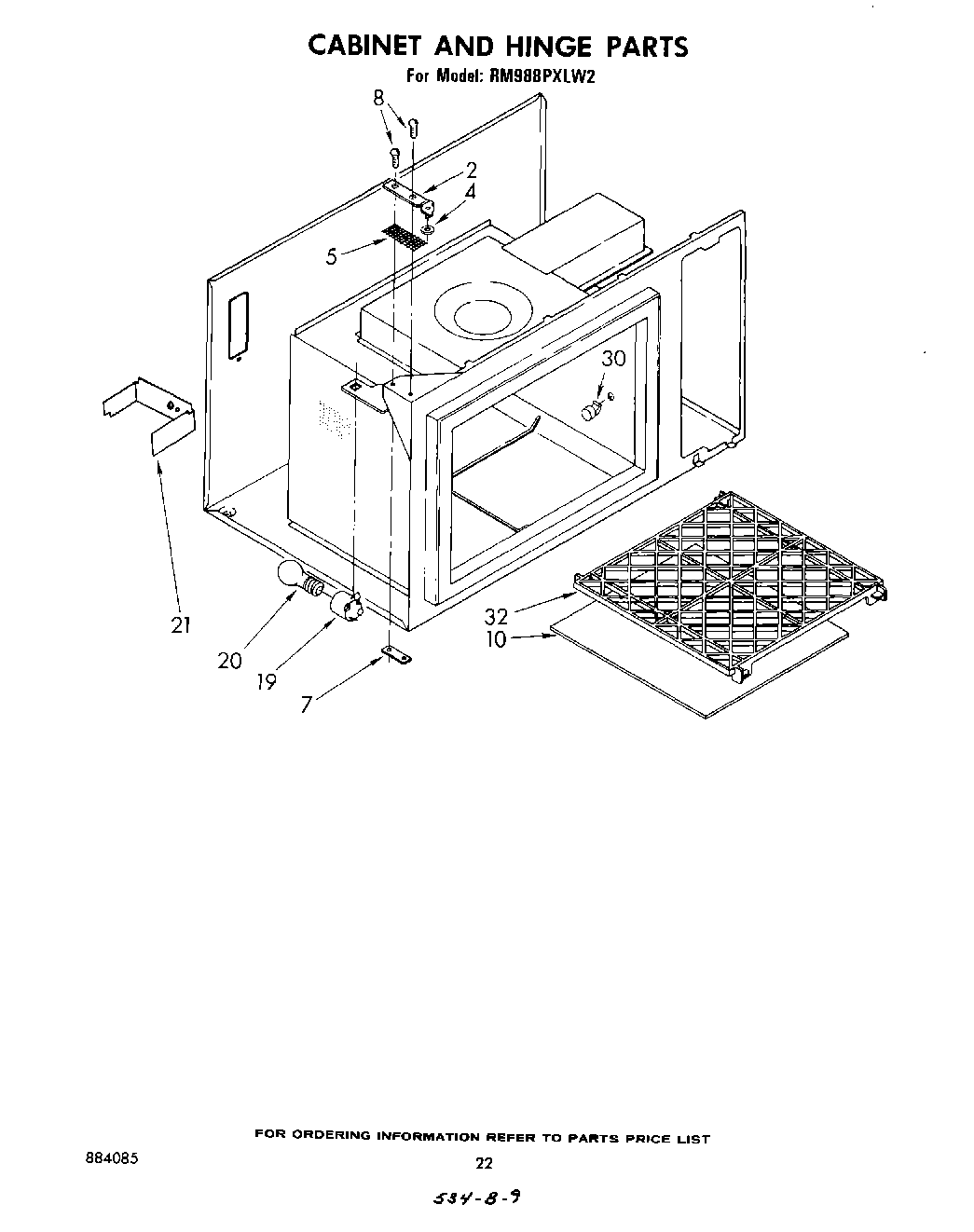

RM988PXLW2 12 – CABINET AND HINGE

Products

Position	Product
2	Hinge Assembly (Bottom)
2	Hinge Assembly (Top)
4	WPL 312147
5	Hinge, Shim Locking (2)
7	Plate, Nut (2)
8	Screw, 12-24 x 3/4 (4)
10	Shelf, Microwave (Alt.) (Install W/Silastic No. 482338)
10	Shelf, Microwave (Alt.)
19	Socket, Snap-In
20	RANGE ONLY 40W 120V APPL BULB
21	screw
21	Shield, Lamp
30	Support, Shelf (4)
32	rack, oven
