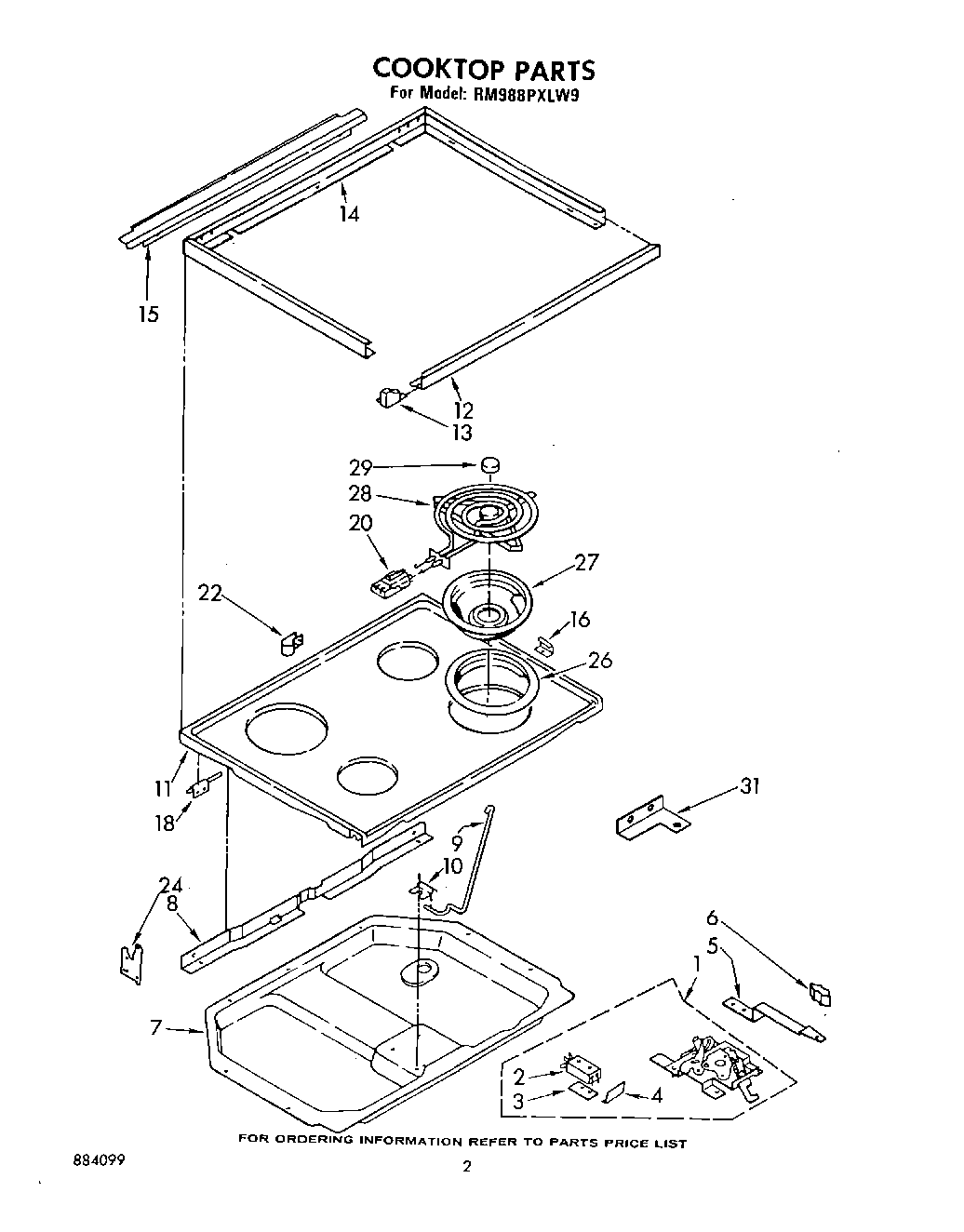

RM988PXLW9 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Screw
6	WP488787 Whirlpool Refrigerator Screw
6	Knob, Latch
7	burner box
8	Shield, Wiring
9	Rod, Cooktop
10	WP3390631 Whirlpool Screw
10	Retainer, Cooktop
11	Cooktop (White)
11	Cooktop (Platinum)
11	Cooktop (Toast)
11	Cooktop (Golden Harvest)
11	Cooktop (Almond)
11	Clip (2)
12	trim, cooktop front
13	end cap trim l.h.
13	end cap trim r.h.
13	Screw, 8A x 3/8 (2)
13	Clip (4)
14	W11693756 Whirlpool Screw Assembly
14	trim, cooktop side & rear
15	trim, rear
16	bracket, cooktop (6)
18	Hinge, Leaf Cooktop L.H.
18	Hinge, Leaf Cooktop R.H.
20	BURNER RECEPTACLE KIT
20	WP313808 Whirlpool Screw
22	WP965173 Whirlpool Dishwasher Screw
22	WP308605 Whirlpool Refrigerator Clamp
24	SCREW
24	hinge (2)
26	W10854470 Whirlpool Trim Ring
26	W10858781 Whirlpool Trim Ring
27	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
28	WP660533 Whirlpool Oven 8" Surface Element
28	326789 Whirlpool Surface Element 8 Inch
28	WPY04100165 Whirlpool Surface Element
29	medallion
31	WPL 312320
31	Screw, 10A x 1/2 (2) (Black)
