RM988PXLW9 04 – DOOR AND DRAWER

RM988PXLW9 04 – DOOR AND DRAWER

Written by

in

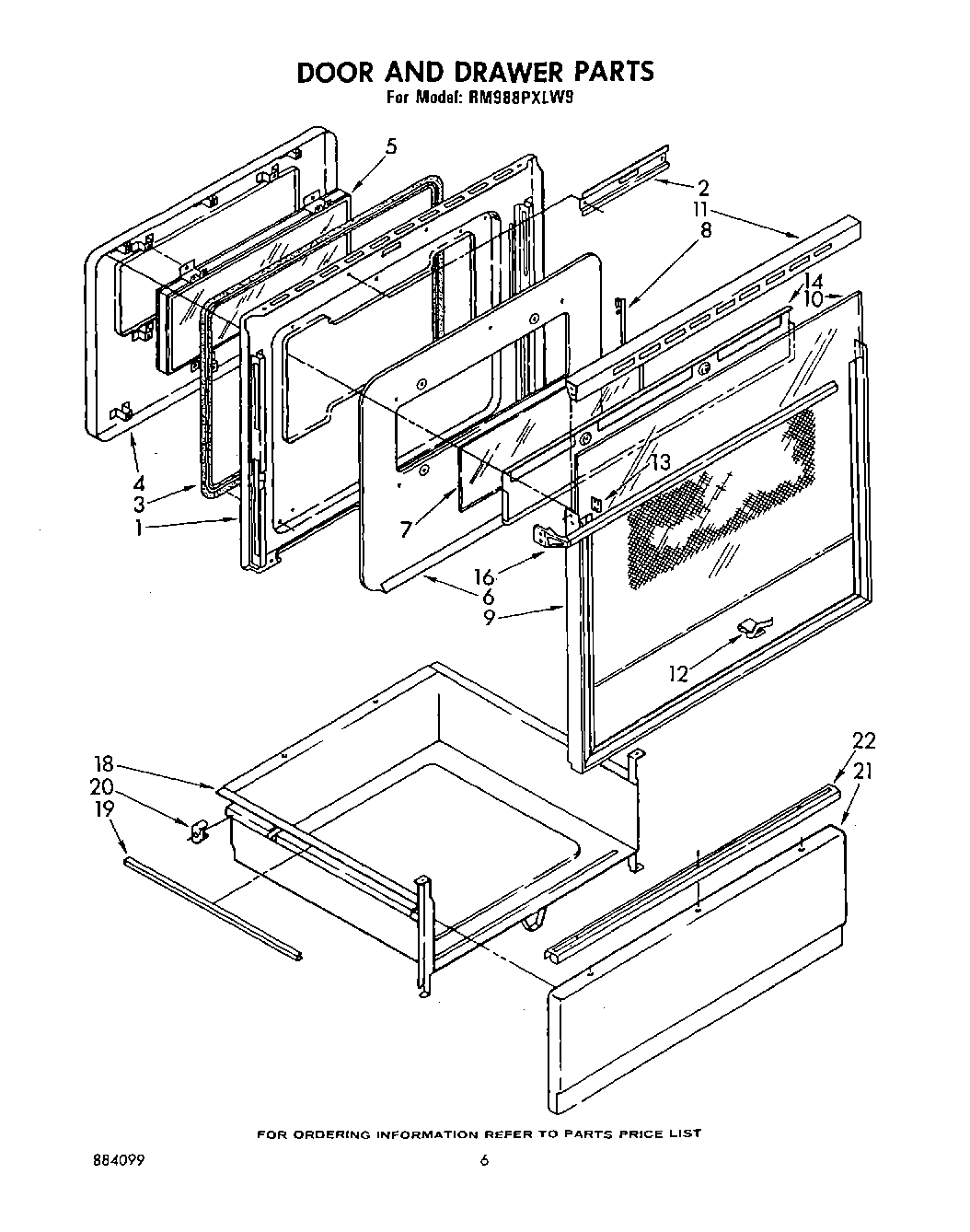

RM988PXLW9 04 – DOOR AND DRAWER

Products

PositionProduct
1Clip (2)
1Liner, Door
2Screw (2)
2Channel, Latch
3Seal, Fiberglass
4Panel, Inner
5Window Package
6Retainer, Insulation
7Glass (6.81“ x 18.31“)
8Retainer, Glass (2)
9frame, door 30“
10Glass, Outer
11Top, Door Frame
12clip, glass (10)
13screw (3)
14Baffle, Heat
14WP90296 Whirlpool Clip
16WP912618 Whirlpool Dishwasher Screw
16WP355515 Whirlpool Screw
16Handle, Oven Door
18Drawer, Utility
19Protector, Drawer (2)
20Screw, 10A x 1/2 (2) (Black)
20Glide, Rear (2)
21Panel, Drawer (Toast)
21Panel Drawer (Harvest Gold)
21WP488787 Whirlpool Refrigerator Screw
21Panel Drawer (Black)
21Panel Drawer (White)
21Panel, Drawer (Almond)
21Panel, Drawer (Platinum)
22Handle, Drawer
22WP488627 Whirlpool Refrigerator Screw
