RM988PXLW9 06 – UPPER CHASSIS AND COMPONENT
Written by
in

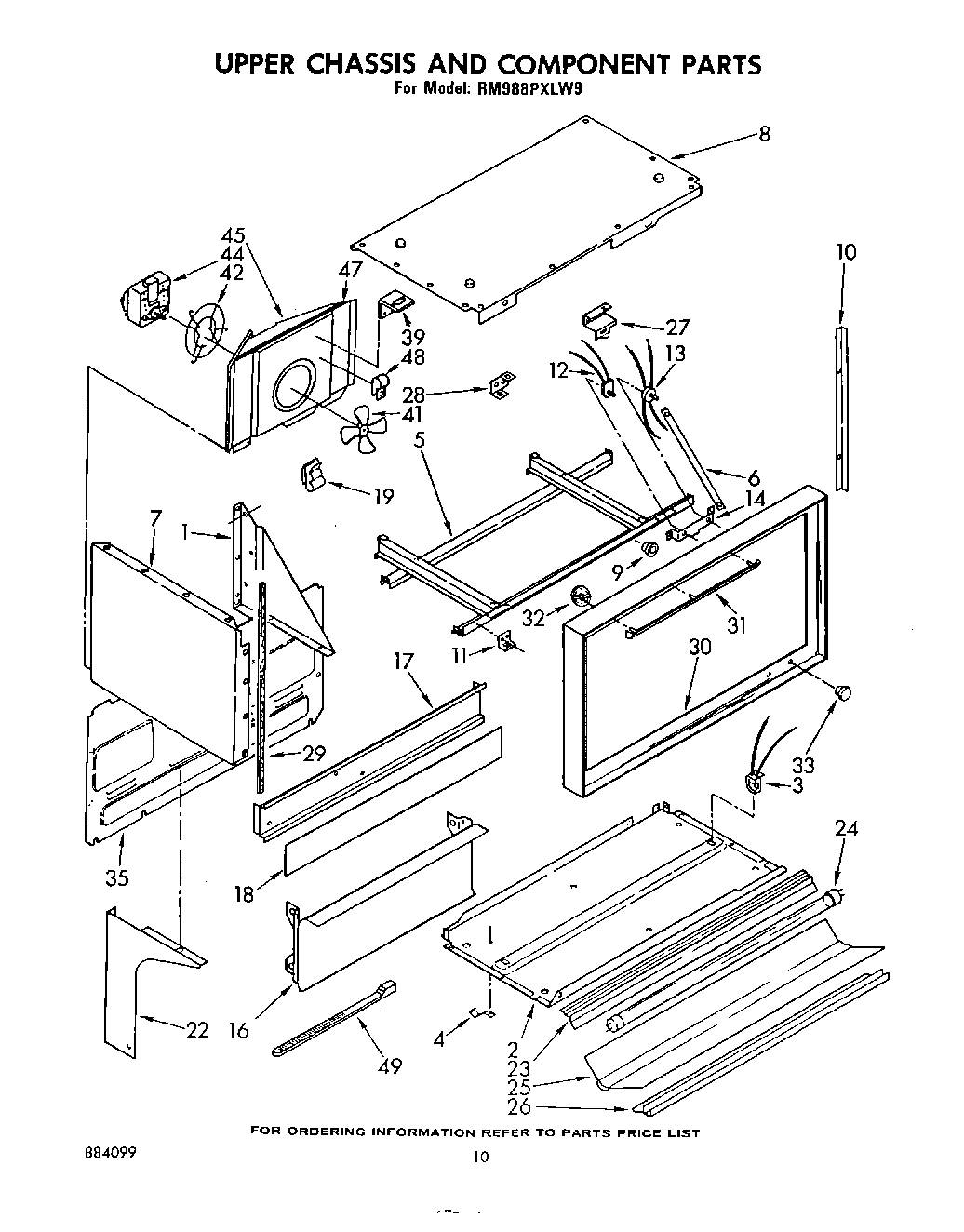

RM988PXLW9 06 – UPPER CHASSIS AND COMPONENT
Products
Position
Product
1
Gusset, R.H.
1
Gusset, L.H.
2
WPL 309506
3
Socket Assembly, L. H.
3
Socket Assembly, R.H.
4
spring, glass (4)
5
Frame, Oven Support
6
Strap, Support (2)
7
Side Panel L.H. (White)
7
Side Panel L.H. (Almond)
7
Side Panel L.H. (Harvest Gold)
7
Side Panel L.H. (White)
7
Side Panel L.H. (Harvest Gold)
7
Side Panel L.H. (Toast)
7
Side Panel L.H. (Platinum)
7
Side Panel L.H. (Toast)
7
Side Panel L.H. (Platinum)
7
Side Panel L.H. (Almond)
8
Support-Top Burner
8
Top Panel (Toast)
8
Top Panel (White)
8
Top Panel (Harvest Gold)
8
Top Panel (Almond)
8
Top Panel (Platinum)
9
Snap Bushing
10
WP965173 Whirlpool Dishwasher Screw
10
WPL 309629
11
WPL 309454
12
Support-Storage Drawer (Lt. or Rt.)
13
WPL 309550
14
WPL 309455
16
WPL 312553
17
Seal, Foam
17
WPL 308776
18
WPL 309144
19
WPL 309211
22
WPL 328152
22
Trim, End R.H. (Golden Harvest)
22
Trim, End R.H. (White)
22
WPL 328155
22
Trim, End R.H. (Golden Harvest)
22
WPL 328151
22
WPL 308980
22
WPL 310304
22
WPL 328150
22
WPL 328156
22
WPL 328154
22
Screw (10-12 x .875)
22
Bracket-Insulation Retainer (Lt. or Rt.)
23
WPL 308896
24
WP95292 Whirlpool Fluorescent Light Bulb
25
WPL 328306
26
WPL 308897
27
WPL 311953
28
WPL 312237
29
Seal, Light
30
WPL 312599
30
WP488627 Whirlpool Refrigerator Screw
31
WPL 309499
32
WP90296 Whirlpool Clip
33
Bezel Switch (1)
35
WPL 308112
35
SCREW
39
Bracket, Receptacle
41
Blade, Fan
41
Nut, Hex 6-32 (2)
42
Screw
42
Mount, Fan Motor
44
Motor, Fan
45
WPL 312340
47
SEAL
48
WP488366 Whirlpool Refrigerator Clamp
48
panel, top (screw, 10a x 3/8 (3))
49
WPW10339879 Whirlpool Wire Tie
←
