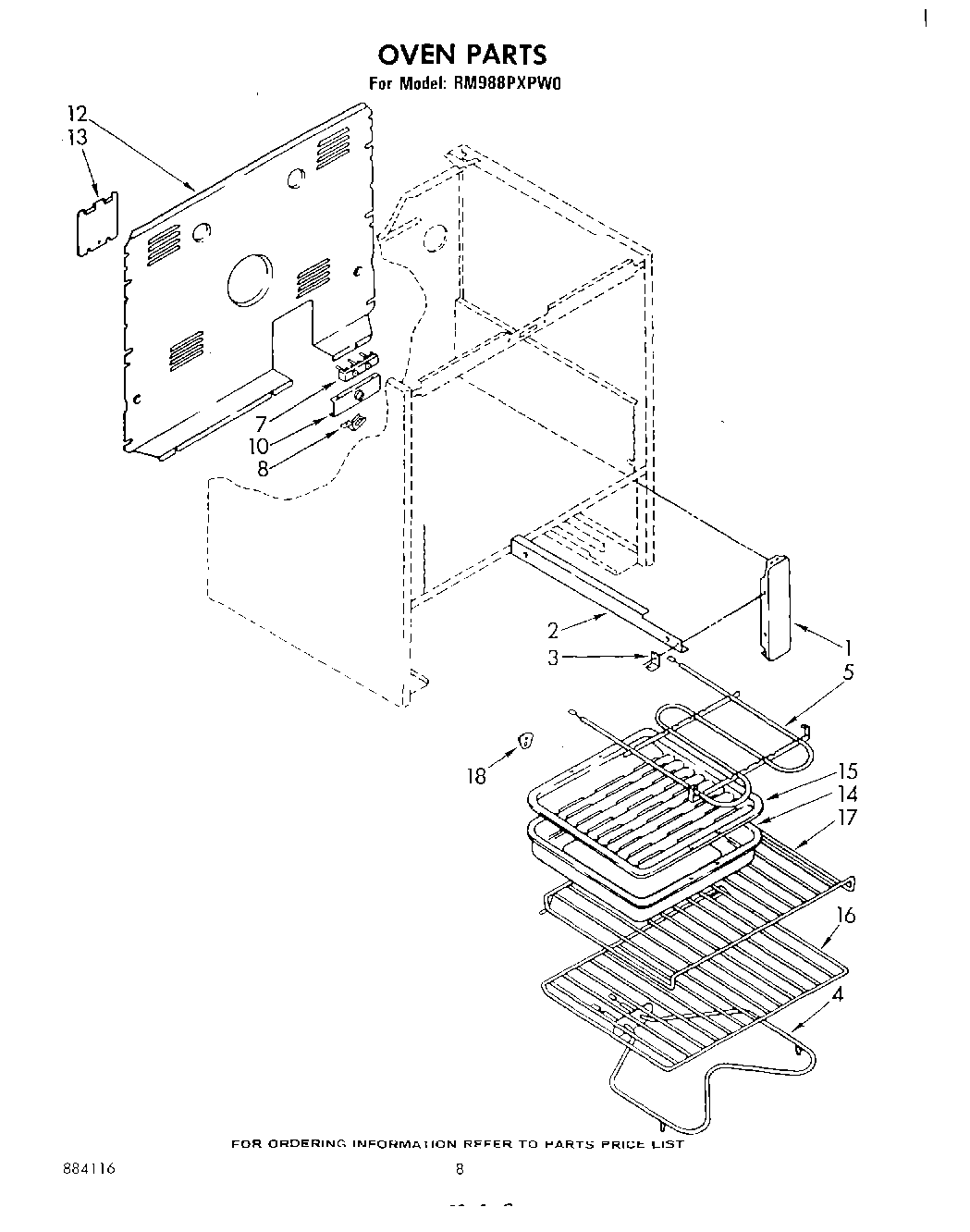

RM988PXPW0 05 – OVEN
Written by
in
RM988PXPW0 05 – OVEN
Products
Position
Product
Unit, Broil (208V)
1
Bracket, Mounting (2)
2
rail l.h. (includes illus. 3)
2
Rail R.H. (Includes Illus. 3)
3
Glide, Front (2)
4
WP312309 Whirlpool Bake Element
4
ELMNT-BAKE
5
Screw, 10-32 x 5/8 (4)
5
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
7
WP112432 Whirlpool Nut Assembly
7
Screw, (2) 10-16 x 1
7
WP8203546 Whirlpool Terminal Block
8
Clip, Ground Wire
8
WPL 308498
10
Bracket, Service
12
Cover, Rear
13
Cover, Service
13
SCREW
15
4396923 Whirlpool Broil Pan Set Gray Porcelain
16
WPL 308173
17
WPL 308172
18
Screw, 10A x 1/2 (2) (Black)
18
WPL 311982
←
