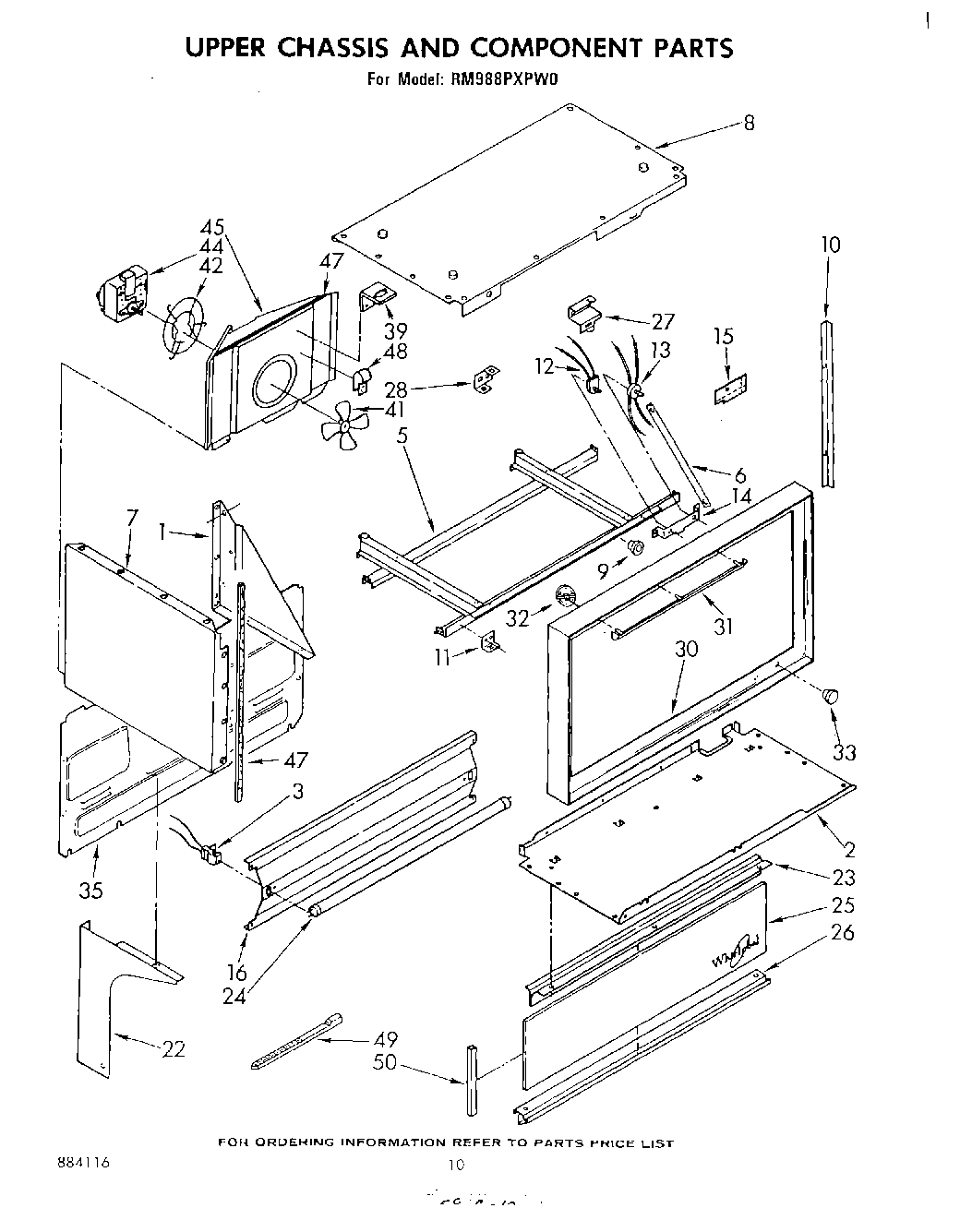

RM988PXPW0 06 – UPPER CHASSIS AND COMPONENT
Written by
in
RM988PXPW0 06 – UPPER CHASSIS AND COMPONENT
Products
Position
Product
1
Gusset, R.H.
1
Gusset, L.H.
2
Channel, Rubber (4)
2
Panel, Bottom
3
Socket Assembly R.H.
3
Socket Assembly L.H.
5
Frame, Oven Support
6
Strap, Support (2)
7
Side Panel L.H. (White)
7
Side Panel L.H. (Harvest Gold)
7
Side Panel L.H. (White)
7
Side Panel L.H. (Harvest Gold)
7
Side Panel L.H. (Almond)
7
Side Panel L.H. (Almond)
7
Side Panel L.H. (Platinum)
7
Side Panel L.H. (Toast)
7
Side Panel L.H. (Platinum)
7
Side Panel L.H. (Toast)
8
Top Panel (Platinum)
8
Top Panel (Toast)
8
Top Panel (White)
8
Top Panel (Almond)
8
Top Panel (Harvest Gold)
8
Support-Top Burner
9
Snap Bushing
10
WPL 309629
11
WPL 309454
12
Push, Switch
13
Switch, Fluorescent Light
14
WPL 309455
15
Barrier
16
Panel, Backguard
16
WPL 246134
22
WPL 330203
22
WPL 330200
22
WPL 330197
22
WPL 330194
22
Screw (10-12 x .875)
22
WPL 330201
22
WPL 330196
22
WPL 330202
22
WPL 330204
22
WPL 330198
22
WPL 330195
23
WPL 313320
23
WP965173 Whirlpool Dishwasher Screw
24
WP95292 Whirlpool Fluorescent Light Bulb
25
WPL 313322
26
WP90767 Whirlpool Screw
26
WPL 313321
27
WPL 311953
28
WPL 312237
28
W11693756 Whirlpool Screw Assembly
30
WPL 312599
30
WP488627 Whirlpool Refrigerator Screw
30
Screw, 80 x 5/16
31
WPL 309499
32
WP90296 Whirlpool Clip
33
Bezel Switch (1)
35
WPL 308112
39
Bracket, Receptacle
41
Blade, Fan
41
Nut, Hex 6-32 (2)
42
Screw
42
Mount, Fan Motor
42
SCREW
44
Motor, Fan
45
WPL 312340
47
SEAL
48
panel, top (screw, 10a x 3/8 (3))
48
WP488366 Whirlpool Refrigerator Clamp
49
WPW10339879 Whirlpool Wire Tie
50
WPL 313319
←
