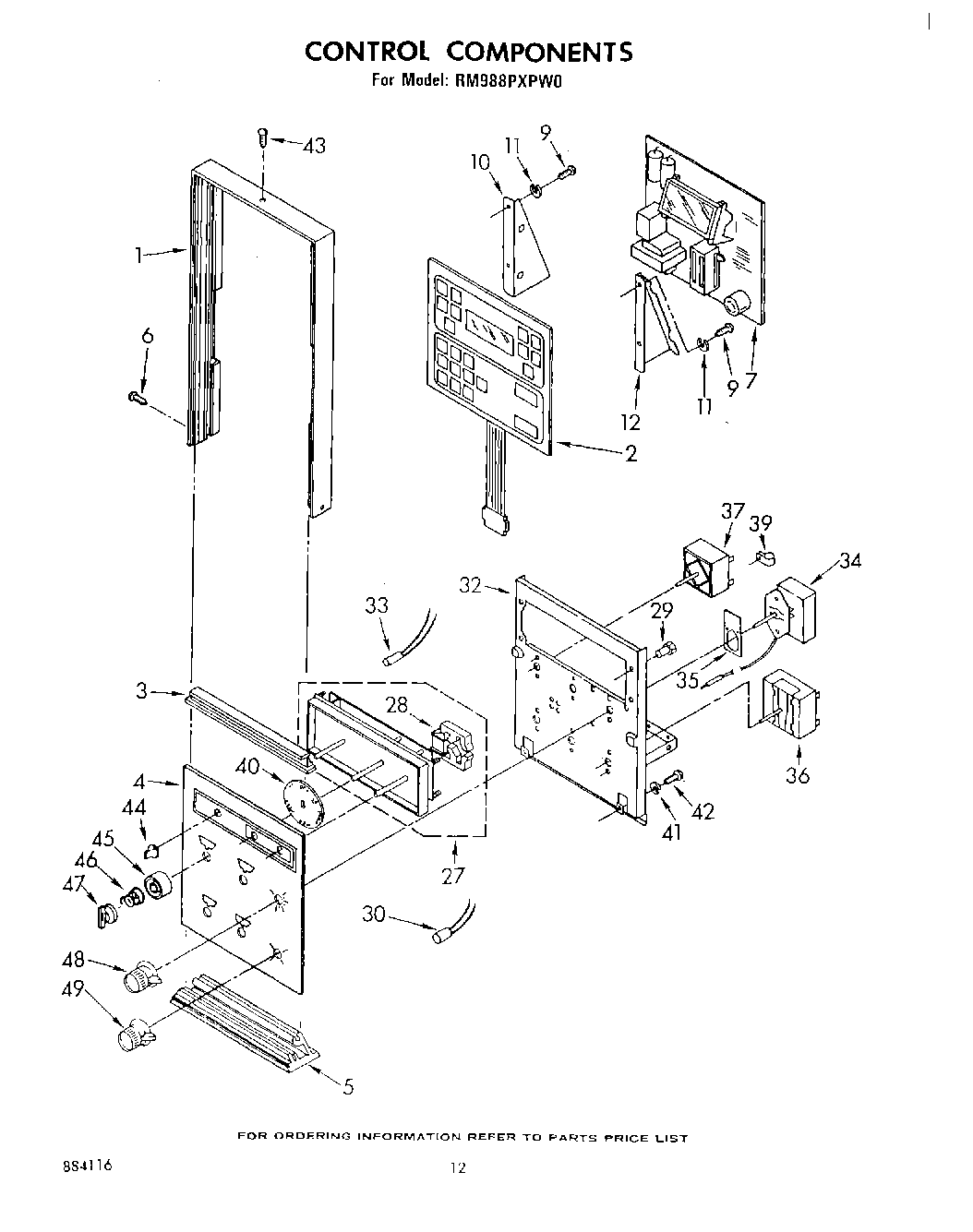

RM988PXPW0 07 – CONTROL
Written by
in
RM988PXPW0 07 – CONTROL
Products
Position
Product
1
Frame, Control Panel
2
Membrane, Switch
3
Splice Panel
4
Socket Assembly R.H.
4
Support-Top Burner
5
Bottom Cap, Control Panel
6
NAMEPLATE
7
Board, Power Control
10
Bracket, P.C. Board
12
Bracket, P.C. Board
27
Timer
28
Motor, Timer
29
Nut, Aluminum (4)
30
Light, Indicator
32
Bracket, Control Mounting
32
SCREW
33
Indicator Light (6)
34
Thermostat, Oven (Lower)
35
Insulator
36
Switch, Selector (Pyro)
37
switch, infinite (4)
37
Screw, 8-32 x 3/16 (2)
39
WP308605 Whirlpool Refrigerator Clamp
39
488946 Whirlpool Air Conditioner Clamp
39
WP965173 Whirlpool Dishwasher Screw
40
Dial, Surface Units (4)
41
Lockwasher
42
WP313808 Whirlpool Screw
43
Screw
44
Spring (3)
44
WP3169181 Whirlpool Knob
45
Bezel, Knob (4)
46
spring, bezel (4)
47
Knob, Control (4)
48
Knob, Thermostat
49
Screw
49
Knob, Selector
49
WP688805 Whirlpool Spring Clip
←
