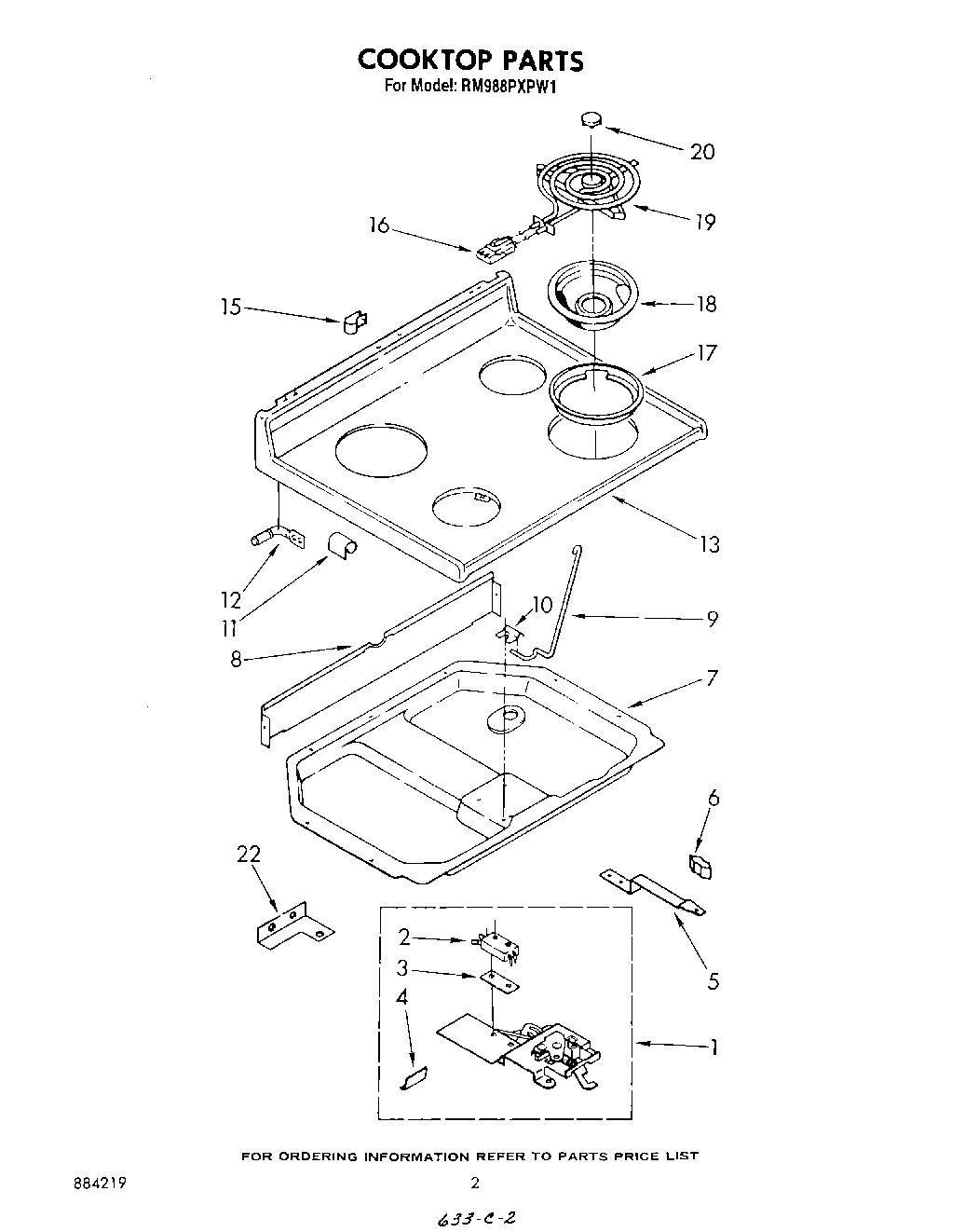

RM988PXPW1 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4WP313808 Whirlpool Screw
4Shield, Latch
4Screw
5Screw
5Handle, Latch
5WP488627 Whirlpool Refrigerator Screw
6Knob, Latch
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10Retainer, Cooktop
10WP3390631 Whirlpool Screw
11Bracket, Cooktop (2)
12SCREW
12Pin, Cooktop (2)
13Cooktop (Harvest Gold)
13Cooktop (Platinum)
13WP308685 Whirlpool Microwave Screw
13Cooktop (White)
13Cooktop (Almond)
13Cooktop (Toast)
15WP965173 Whirlpool Dishwasher Screw
15WP308605 Whirlpool Refrigerator Clamp
16BURNER RECEPTACLE KIT
17W10858781 Whirlpool Trim Ring
17W10854470 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19WP660533 Whirlpool Oven 8" Surface Element
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
22WPL 312320
22Screw, 10A x 1/2 (2) (Black)
