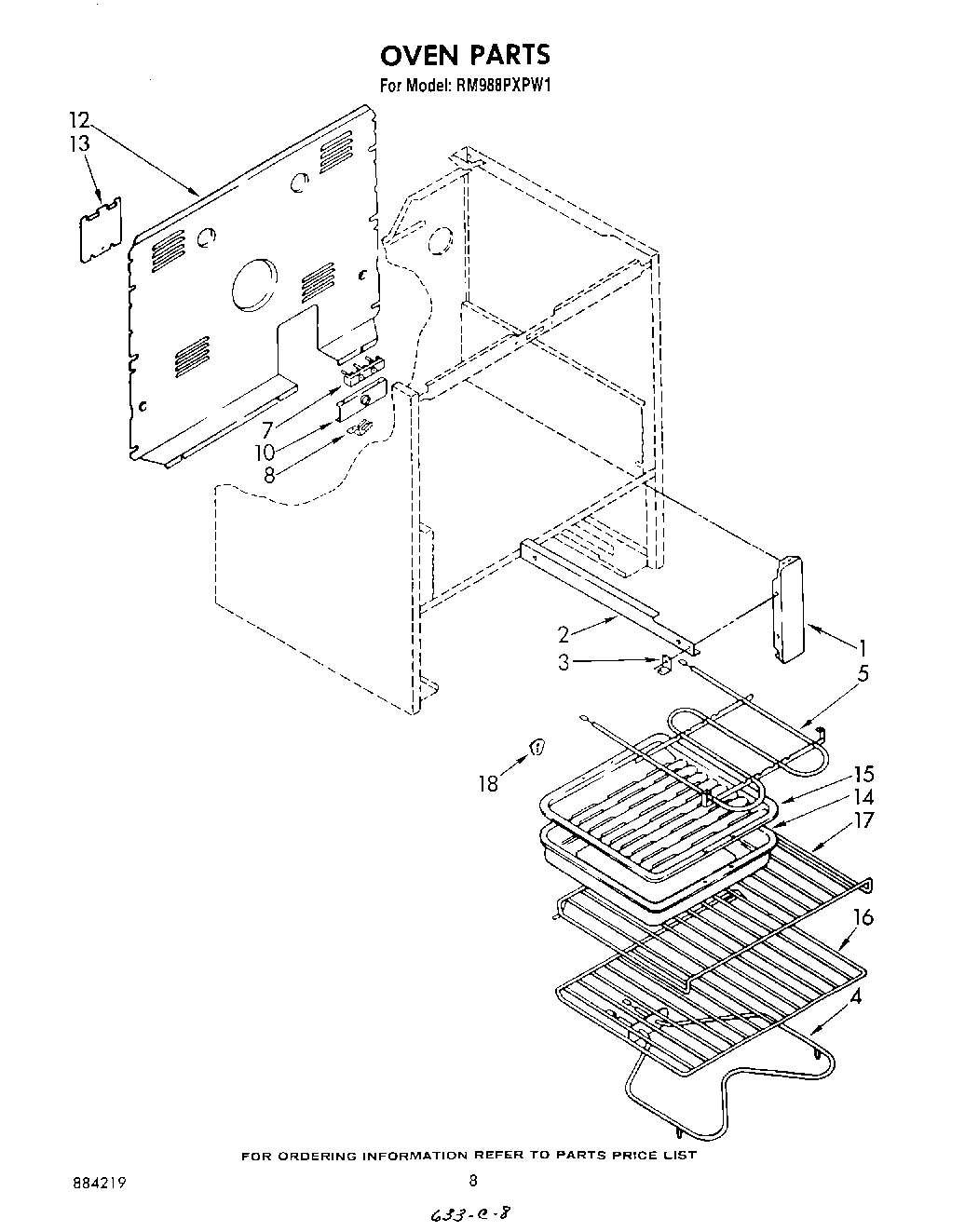

RM988PXPW1 05 – OVEN (CONTINUED)

Products

PositionProduct
1Bracket, Mounting (2)
2rail l.h. (includes illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
4WP312309 Whirlpool Bake Element
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw, 10-32 x 5/8 (4)
5Unit, Broil (208V)
7Screw, (2) 10-16 x 1
7WP112432 Whirlpool Nut Assembly
7WP8203546 Whirlpool Terminal Block
8Clip, Ground Wire
8WPL 308498
10Bracket, Service
12Cover, Rear
13Cover, Service
13SCREW
154396923 Whirlpool Broil Pan Set Gray Porcelain
16WPL 308173
17WPL 308172
18Screw, 10A x 1/2 (2) (Black)
18WPL 311982
