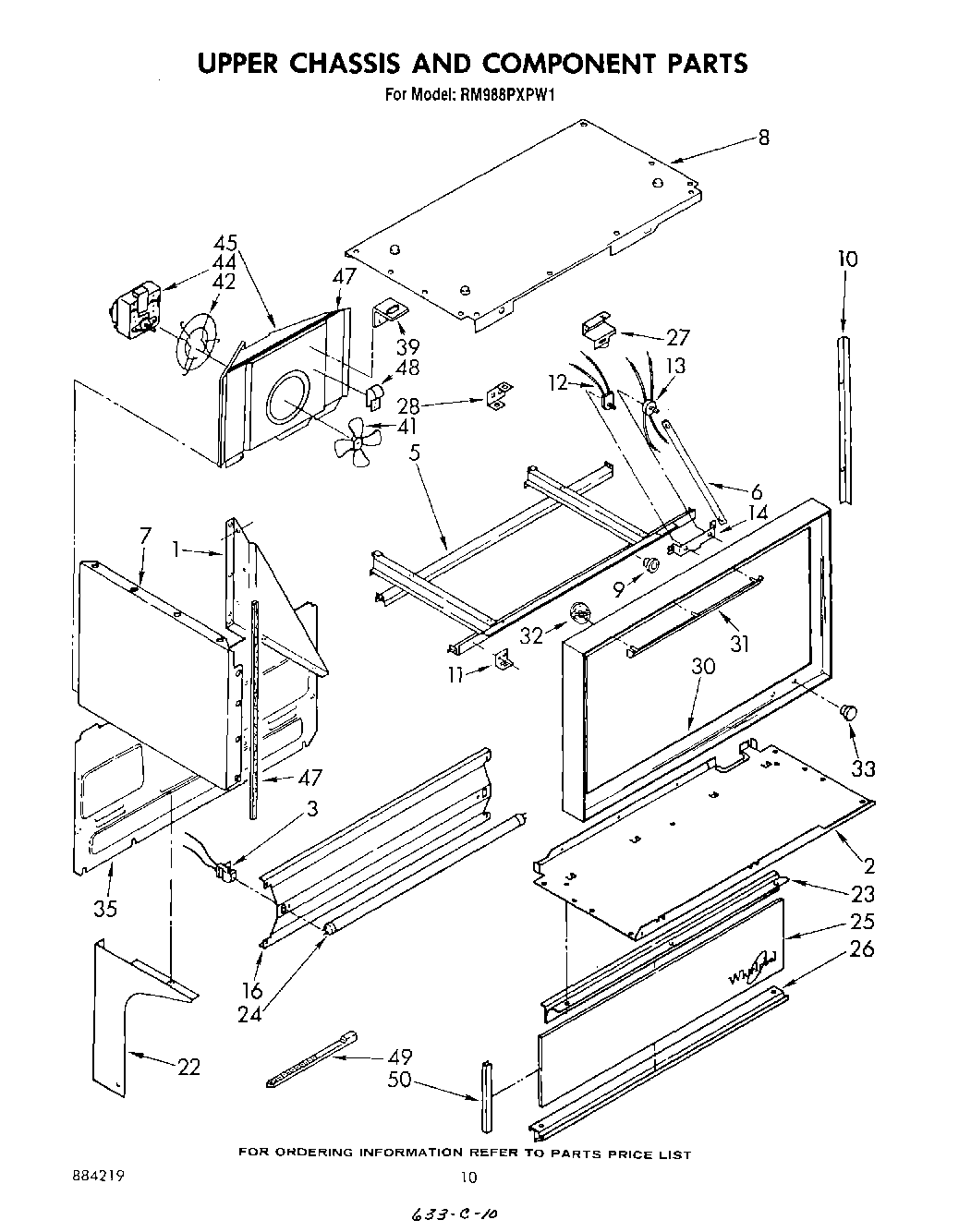

RM988PXPW1 06 – UPPER CHASSIS AND COMPONENT

Products

PositionProduct
1Gusset, R.H.
1Gusset, L.H.
2Panel, Bottom
2Channel, Rubber (4)
3Socket Assembly R.H.
3Socket Assembly L.H.
5Frame, Oven Support
6Strap, Support (2)
7Side Panel L.H. (Almond)
7Side Panel L.H. (White)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (Almond)
7Side Panel L.H. (Toast)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (Toast)
7Side Panel L.H. (Harvest Gold)
7Side Panel L.H. (Platinum)
7Side Panel L.H. (White)
8Support-Top Burner
8Top Panel (White)
8Top Panel (Harvest Gold)
8Top Panel (Almond)
8Top Panel (Toast)
8Top Panel (Platinum)
9Snap Bushing
10WPL 309629
11WPL 309454
12Push, Switch
13Switch, Fluorescent Light
14WPL 309455
16Panel, Backguard
22WPL 330195
22WPL 330204
22Screw (10-12 x .875)
22WPL 330194
22WPL 330197
22WPL 330200
22WPL 330203
22WPL 330196
22WPL 330198
22WPL 330201
22WPL 330202
23WPL 313320
23WP965173 Whirlpool Dishwasher Screw
24WP95292 Whirlpool Fluorescent Light Bulb
25WPL 313322
26WPL 313321
27WPL 311953
28WPL 312237
30WP488627 Whirlpool Refrigerator Screw
30WPL 312599
31WPL 309499
32WP90296 Whirlpool Clip
33Bezel Switch (1)
35WPL 308112
39Bracket, Receptacle
41Blade, Fan
41Nut, Hex 6-32 (2)
42Screw
42Mount, Fan Motor
42SCREW
44Motor, Fan
45WPL 312340
47SEAL
48WP488366 Whirlpool Refrigerator Clamp
48panel, top (screw, 10a x 3/8 (3))
49WPW10339879 Whirlpool Wire Tie
50WPL 313319
