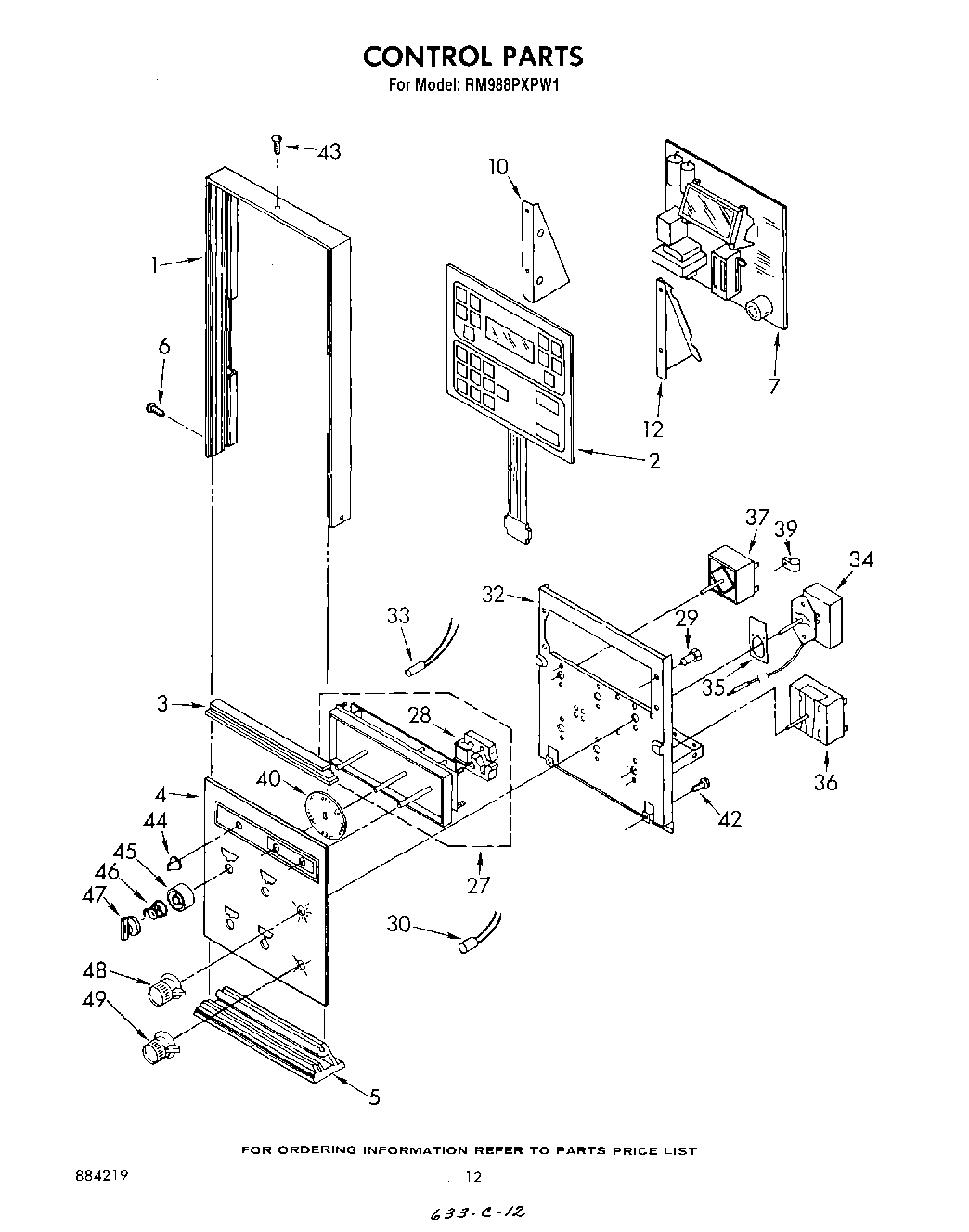

RM988PXPW1 07 – CONTROL

Products

PositionProduct
1Frame, Control Panel
2Membrane, Switch
3Splice Panel
4Support-Top Burner
4Socket Assembly R.H.
5Bottom Cap, Control Panel
6NAMEPLATE
7Board, Power Control
10Bracket, P.C. Board
12Bracket, P.C. Board
27Timer
28Motor, Timer
29Nut, Aluminum (4)
30Light, Indicator
32Bracket, Control Mounting
32SCREW
33Indicator Light (6)
34Thermostat, Oven (Lower)
35Insulator
36Switch, Selector (Pyro)
37switch, infinite (4)
37Screw, 8-32 x 3/16 (2)
39WP965173 Whirlpool Dishwasher Screw
39WP308605 Whirlpool Refrigerator Clamp
40Dial, Surface Units (4)
42WP313808 Whirlpool Screw
43Screw
44Spring (3)
44WP3169181 Whirlpool Knob
45Bezel, Knob (4)
46spring, bezel (4)
47Knob, Control (4)
48Knob, Thermostat
49Screw
49Knob, Selector
49WP688805 Whirlpool Spring Clip
