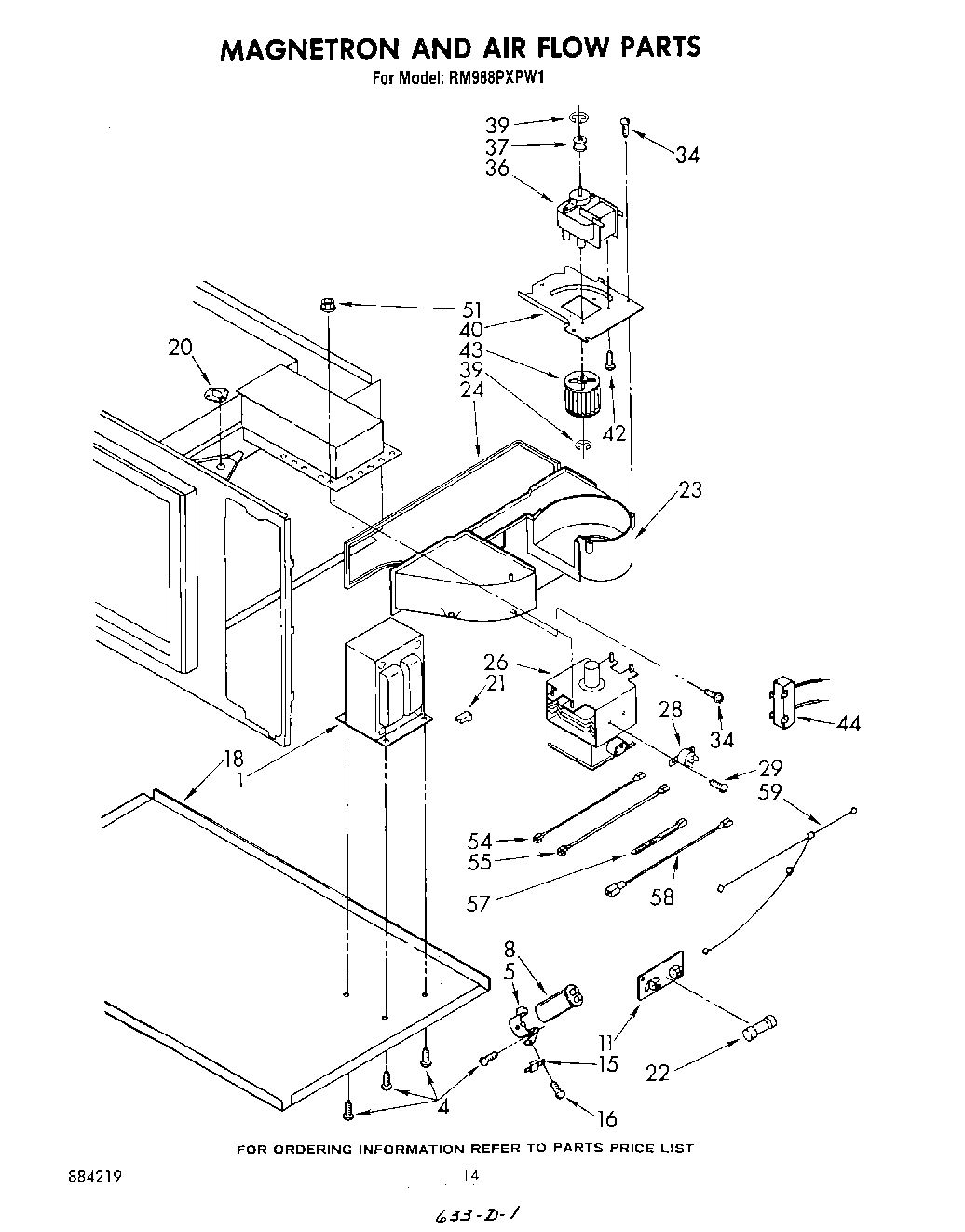

RM988PXPW1 08 – MAGNETRON AND AIR FLOW

RM988PXPW1 08 – MAGNETRON AND AIR FLOW

Written by

in

RM988PXPW1 08 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
11Block, Fuse
15rectifier, high voltage
20Thermostat
20screw
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron
28Thermal Protector
29Screw, 6A x 3/8 (2)
36Motor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Reed Relay
51Flange Nut (4)
54Jumper, High Voltage (Black 6-5/16“)
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
59Clip, Harness
59Cable, Support
59Screw
59Screw, 11-16 x 1/2 Double Load Space Thread (5)
