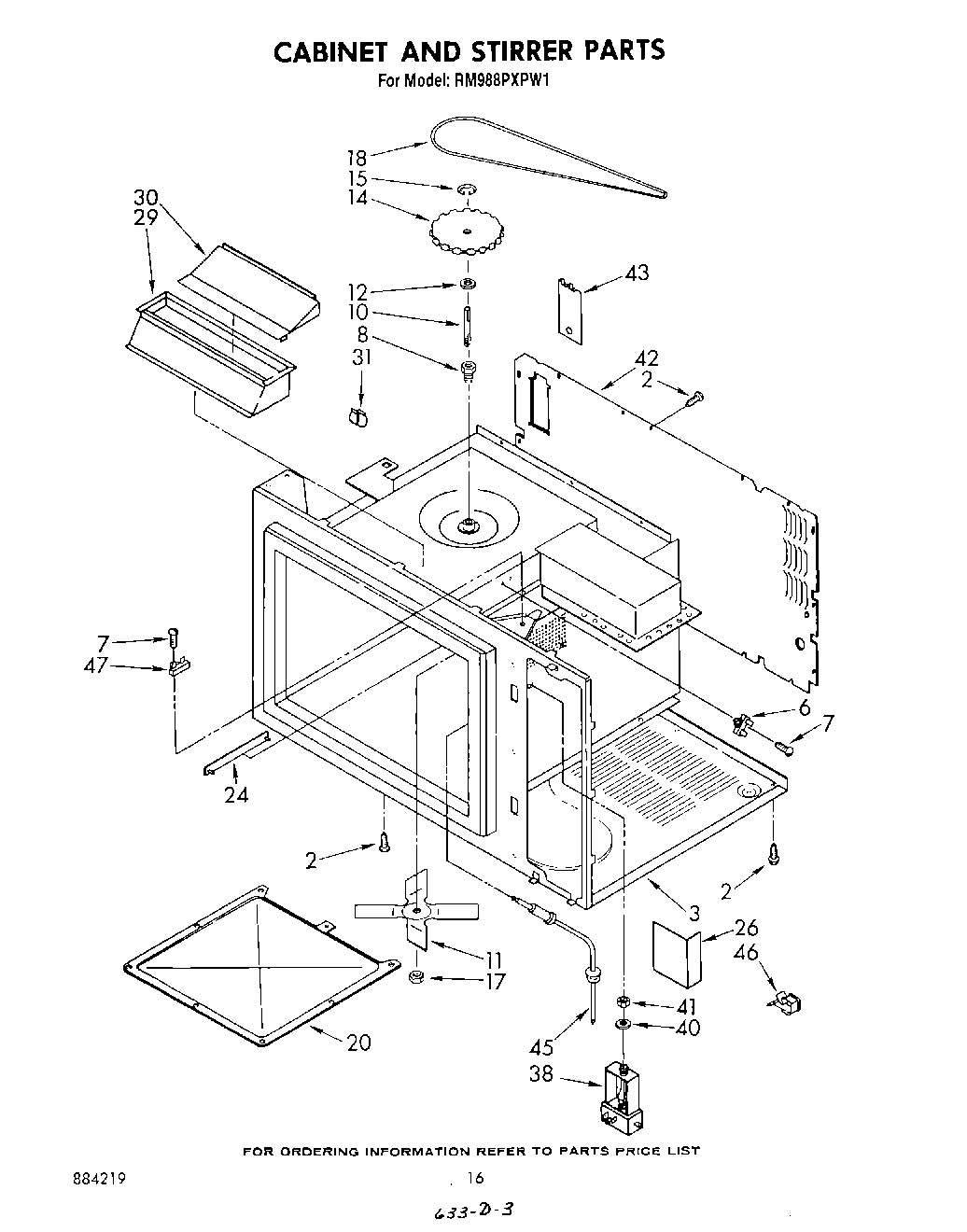

RM988PXPW1 09 – CABINET AND STIRRER , LITERATURE

Products

PositionProduct
WPL LIT312880
Cook
WPL LIT313358
WPL LIT313480
WPL LIT312878
WPL LIT3147633
WPL LIT884219
2WP308685 Whirlpool Microwave Screw
3Base, Cabinet (Not Serviceable)
6Thermal Fuse (Includes Illus.7)
7screw
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18Belt, Drive
20Fastener (4)
20Stirrer Cover
24Cover, Rivet
26Shield, Exhaust
29Baffle, Air Exhaust
30Air Deflector
31Clip, Air Cover (3)
38Jack, Probe
40Washer, Internal Lock
41Nut
42Cover, Rear
43Cover, Light
43SCREW
45(Alt.)
45(Alt.)
45Probe, Temperature
46Clip, Harness
47Browning Tray (Micro)
47WP75614 Whirlpool Connector
47Rotisserie Kit (RCK 81)
47Golden Harvest
47WP3196548 Whirlpool Thermal Fuse
47WPL 242860
47Rack, Meat (Micro)
47261900 Whirlpool Microwave Spray
47Grease
47WPL 591014
47Enamel, Black (1 Qt. Uncut)
47511873 Whirlpool Refrigerator Paint
47350942 Whirlpool Spray Paint
47WPL 72112
47Platinum (Uncut)
47Enamal, Toast (1 Qt. Uncut)
47Paint, Spray (13 Oz.) (Platinum)
47Toast
47Golden Harvest (Uncut)
4772113 Whirlpool Touch-Up Paint
4772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47Almond (Uncut)
47Leveler (Thinner)
47WP72107 Whirlpool Touchup
47799344 Whirlpool Refrigerator Paint
4772017 Whirlpool Appliance Touch-Up Paint White
47350956 Whirlpool Spray Assembly
47WPL 799832
47WPW10208653 Whirlpool Insulation
471
47Wire (14 Ga. 200 c Brown)
4718 Ga. 80~c Rating (Red)
47Wire (12 Ga. 150 c Black)
47Wire (14 Ga. 150 c Yellow)
47Wire (14 Ga. 150 c Orange)
47Wire (14 Ga. 150 c Green)
47Wire (14 Ga. 150 c Brown)
47Wire (14 Ga. 150 c Blue)
47WP261869 Whirlpool Microwave Paint
47242831 Whirlpool Oven Wire
47WP482338 Whirlpool Refrigerator Adhesive
4772032 Whirlpool Touch Up Paint Black
47285006 Whirlpool Spray
47Wire, 25“ Roll (White 14 GA.)
47Wire, 25` Roll (Red 14 Ga.)
47Wire, 25` Roll (Black 14 Ga.)
47350930 Whirlpool White Spray Paint
