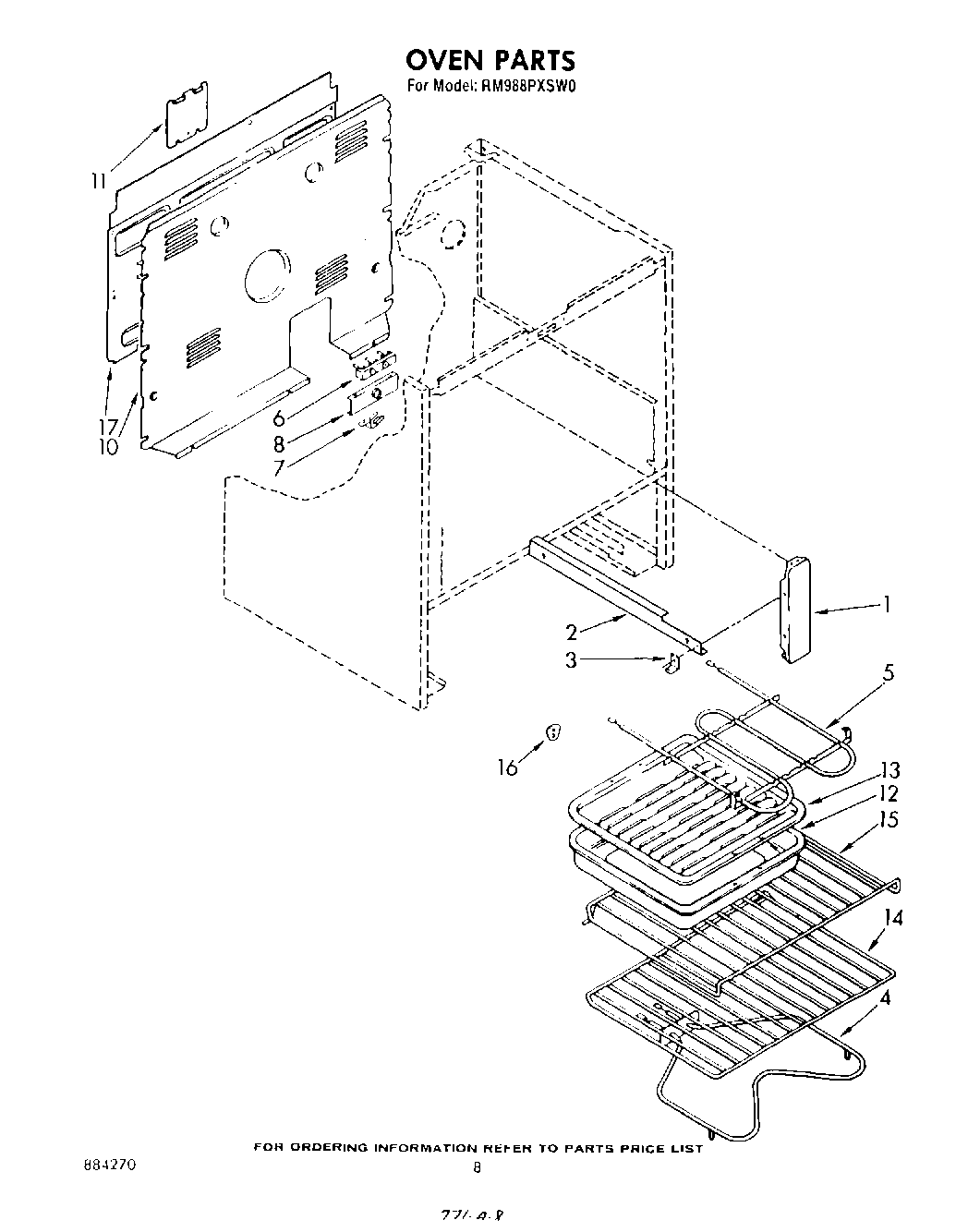

RM988PXSW0 05 – OVEN (CONTINUED)

Products

Position	Product
	Screw, 10-32 x 5/8 (4)
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
16	Screw, 10A x 1/2 (2) (Black)
17	SCREW
17	Cover
