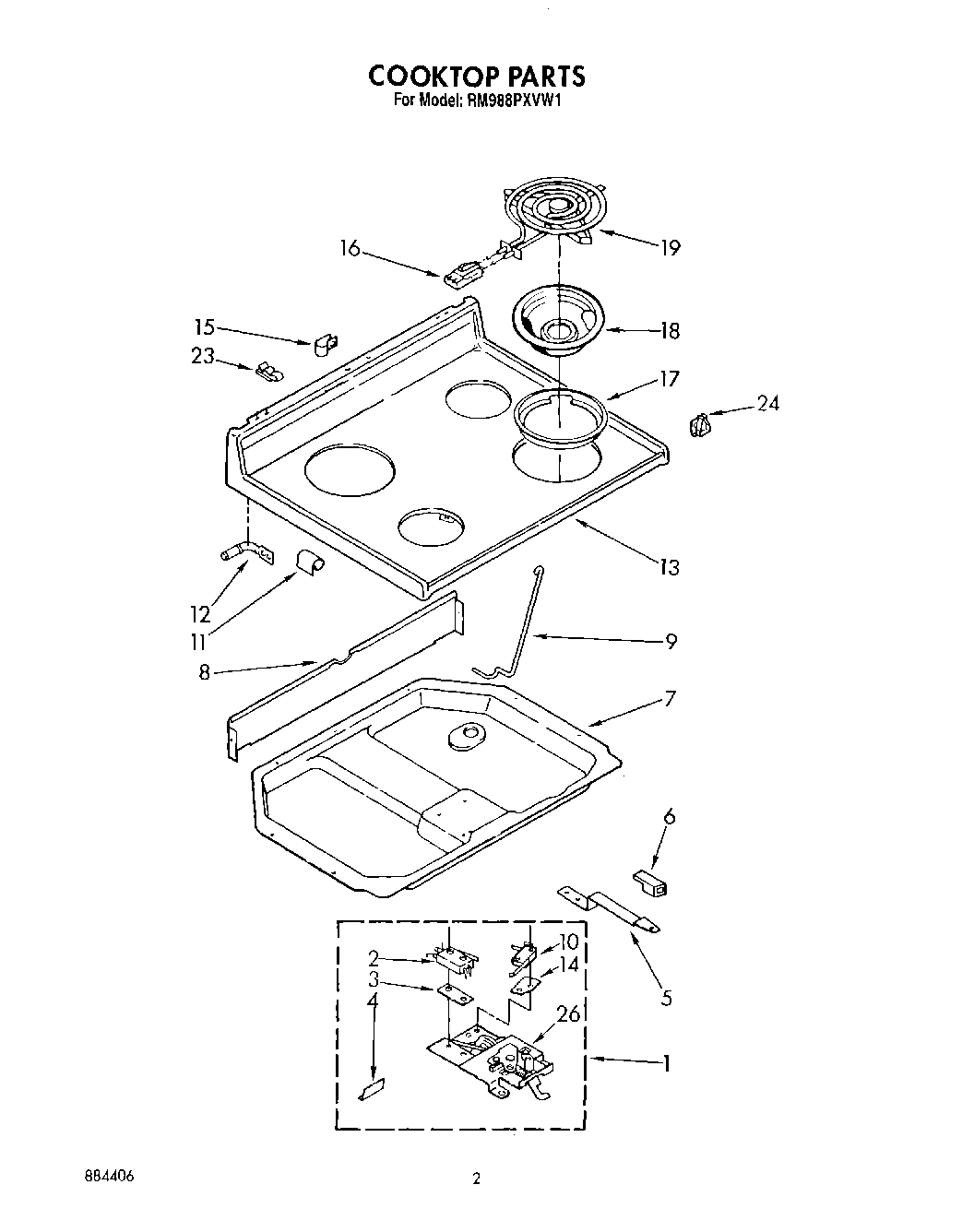

RM988PXVF1 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	WP313808 Whirlpool Screw
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Screw (3)
5	Screw
5	WP488627 Whirlpool Refrigerator Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
10	Switch, Lock
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	Cooktop (White)
13	Cooktop (Almond)
13	Cooktop (Toast)
13	Cooktop (Platinum)
14	WPL 3147864
15	WP308605 Whirlpool Refrigerator Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	WP4332752 Whirlpool Clip
17	W10858781 Whirlpool Trim Ring
17	W10854470 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
23	Clip, Tube
24	814103 Whirlpool Clip
26	WPL 3149270
