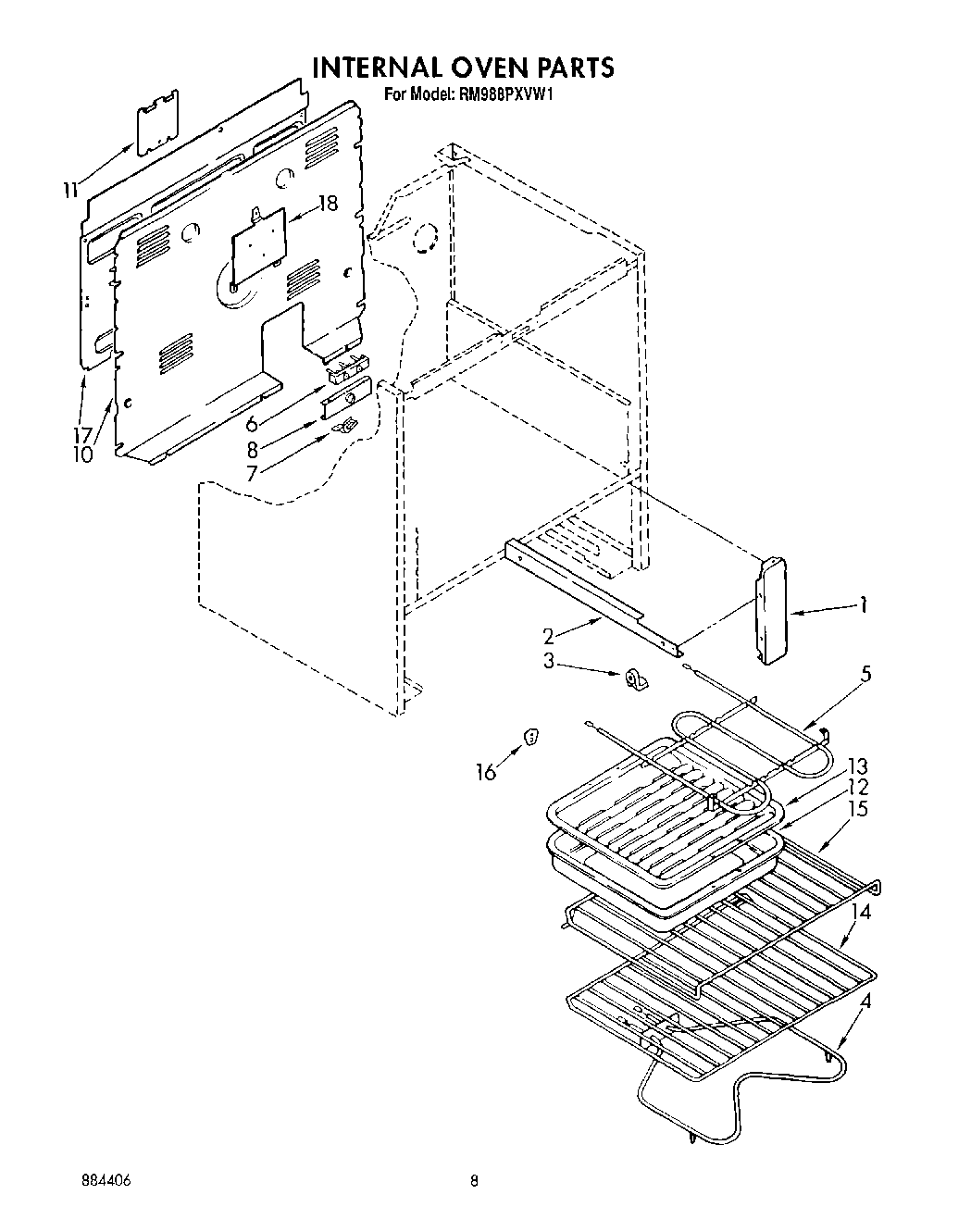

RM988PXVF1 05 – INTERNAL OVEN

Products

Position	Product
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	WP112432 Whirlpool Nut Assembly
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
16	WPL 312318
16	Screw, 10A x 1/2 (2) (Black)
17	Cover
18	SCREW
18	Plate, Mounting Terminal Block
