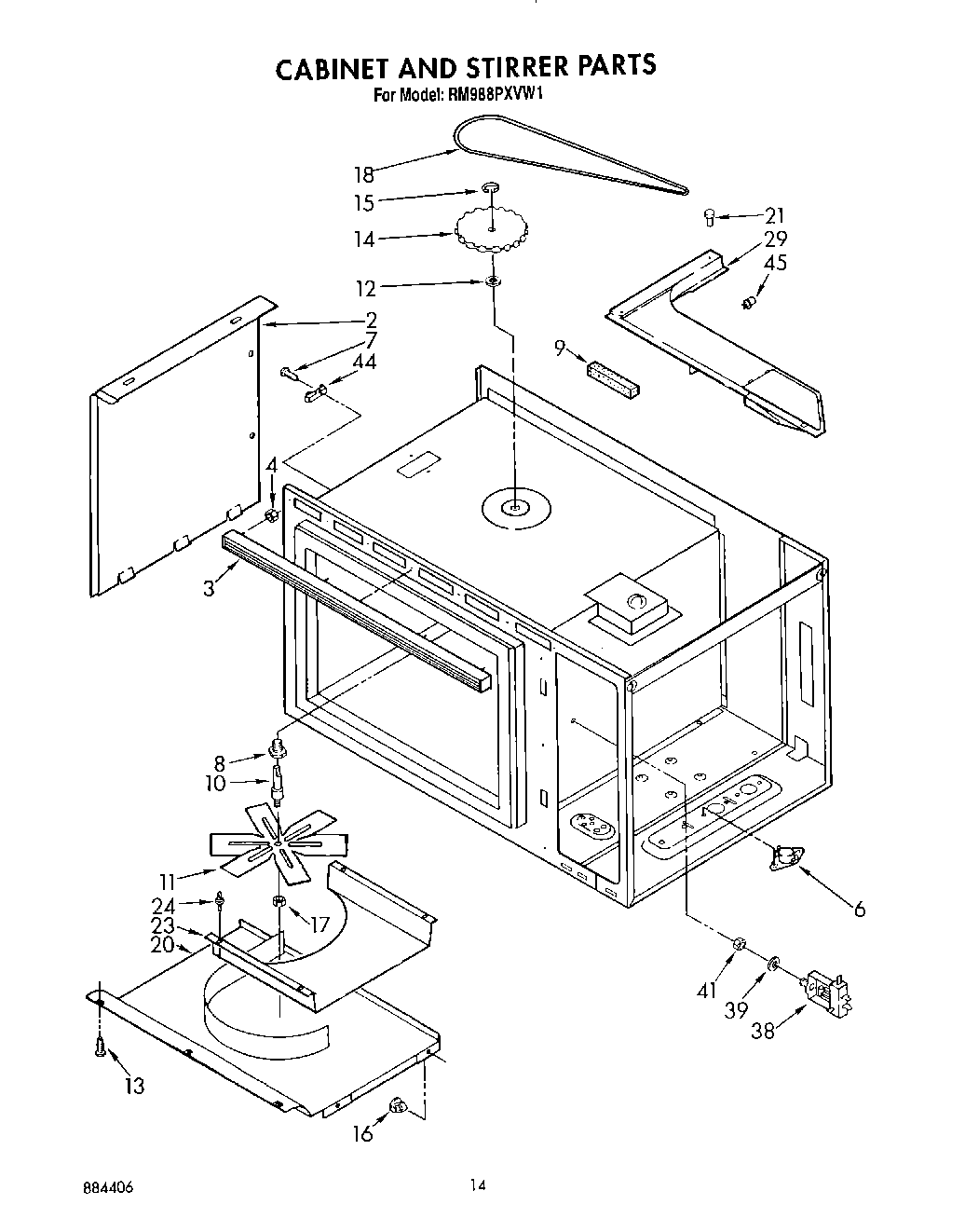

RM988PXVM1 09 – CABINET AND STIRRER

Products

Position	Product
2	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Side
3	grille, air
4	Nut (3)
6	Screw
6	Thermostat
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	screw, 8-32 x 1/2 (3)
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
21	Fastener (2)
23	Plate, Tuning
24	Support (4)
29	Baffle, Air Exhaust
38	Probe Jack
39	Washer, Internal Lock
41	Nut
44	Fuse, Thermal
45	Sensor, Gas
