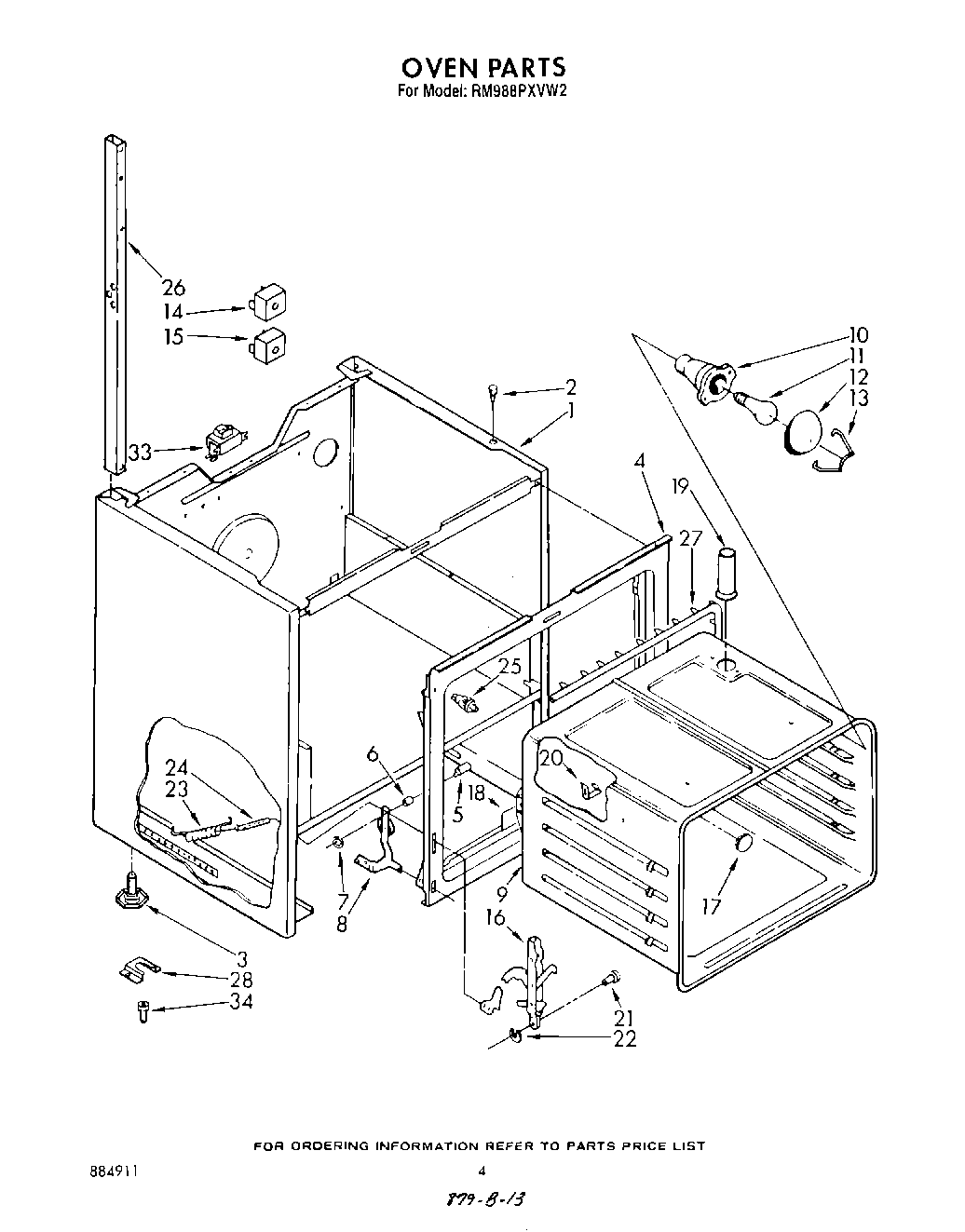

RM988PXVM2 03 – OVEN

RM988PXVM2 03 – OVEN

Written by

in

RM988PXVM2 03 – OVEN

Products

PositionProduct
WPL LIT3147571
WPL LIT3147575
Use & Care Guide (Microwave)
WPL LIT3147391
WPL LIT884911
WPL LIT313358
Cook
Use & Care Guide
Tech She
1Main Chassis (Almond)
1Main Chassis (White)
1Main Chassis (Platinum)
1Main Chassis (Toast)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Screw (Top)
4Frame, Front
5Pin, Hinge Ear (2)
6Snubber, Door (2)
7Pushnut (2)
8Hinge (L.H.)
8Hinge (R.H.)
9Oven (30“ Pyro)
10Socket, Oven Light
10Screw (10-12 x .875)
11RANGE ONLY 40W 120V APPL BULB
12Cover, Light
13Retainer, Light
14Sw
15WPL 314215
15Switch, Bake
16Channel, Arm (2)
17Plug Button
18Bracket, Oven (Mounting)
18Screw (3)
19Vent, Oven
19Screw, 10A x 1/2 (2) (Black)
2098005642 Whirlpool Clip
21WP307986 Whirlpool Hinge Pin
22Retainer Ring (2)
23WP308126 Whirlpool Door Spring
24WP308125 Whirlpool Microwave Range/Cooktop Anchor
25Switch, Door
26Support, Tubing R.H.
26support, tubing L.H.
27WP313808 Whirlpool Screw
27Seal, Door
288273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
28Screw
33SCREW
33Ballast
34WPL 310433
34WPW10208653 Whirlpool Insulation
34Anchor, Plastic
