RM988PXVM2 05 – UNIT
Written by
in

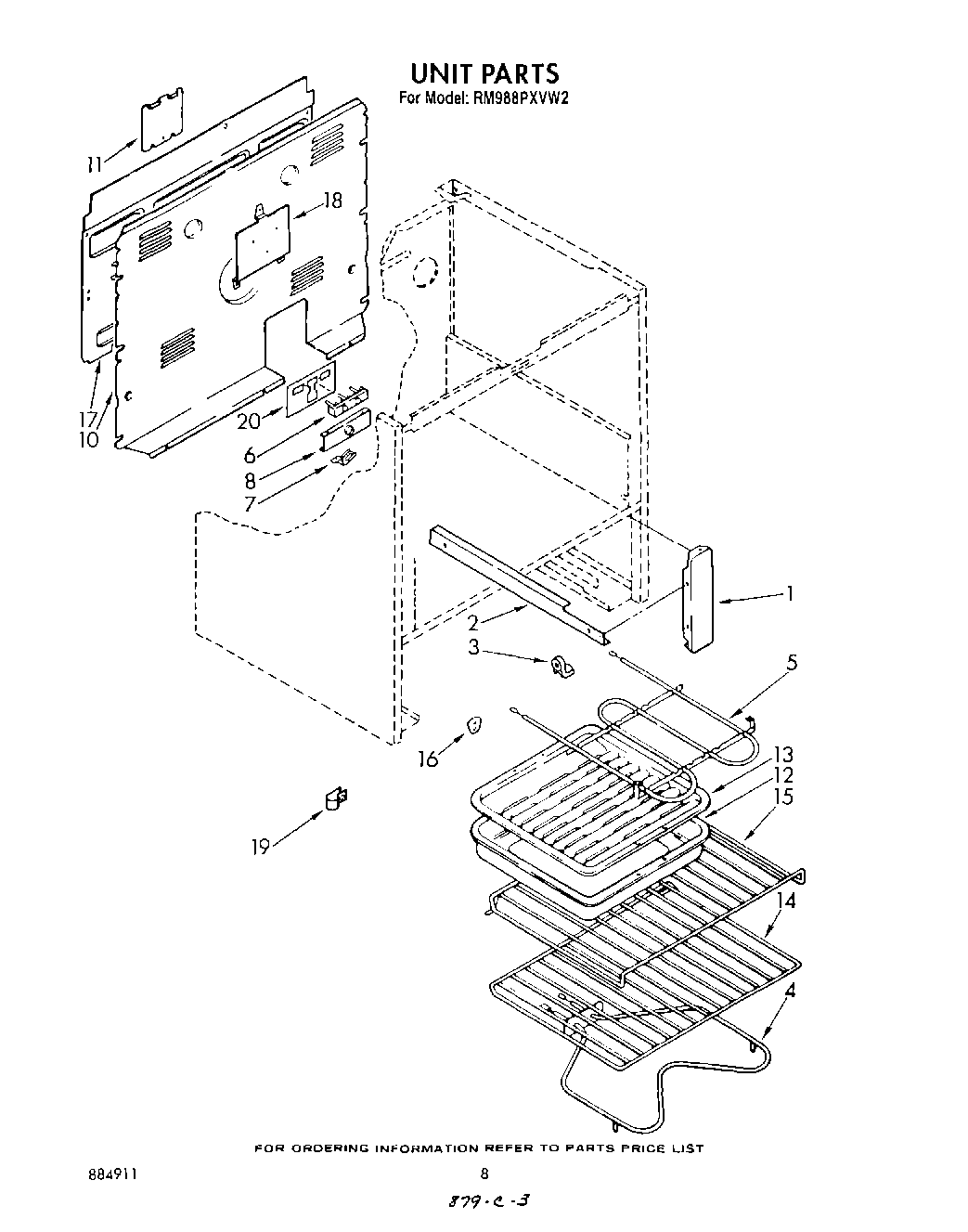

RM988PXVM2 05 – UNIT
Products
Position
Product
Screw (2)
1
Bracket, Mounting (2)
2
Screw, 10A x 1/2 (2) (Black)
2
Rail R.H. (Includes Illus. 3)
2
Rail L.H. (Includes Illus. 3)
3
Glide, Front (2)
4
ELMNT-BAKE
5
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6
WP8203546 Whirlpool Terminal Block
6
Screw, (2) 10-16 x 1
7
WPL 308498
7
Clip, Ground Wire
8
Bracket, Service
10
Cover, Rear
11
Cover, Service
11
WP112432 Whirlpool Nut Assembly
13
4396923 Whirlpool Broil Pan Set Gray Porcelain
14
WPL 308173
15
WPL 308172
16
WPL 312318
16
WPL 311982
17
Cover
18
SCREW
18
Plate, Mounting Terminal Block
19
Strain Relief (3)
19
WP488729 Whirlpool Refrigerator Door Screw
20
Barrier, Shield
←
