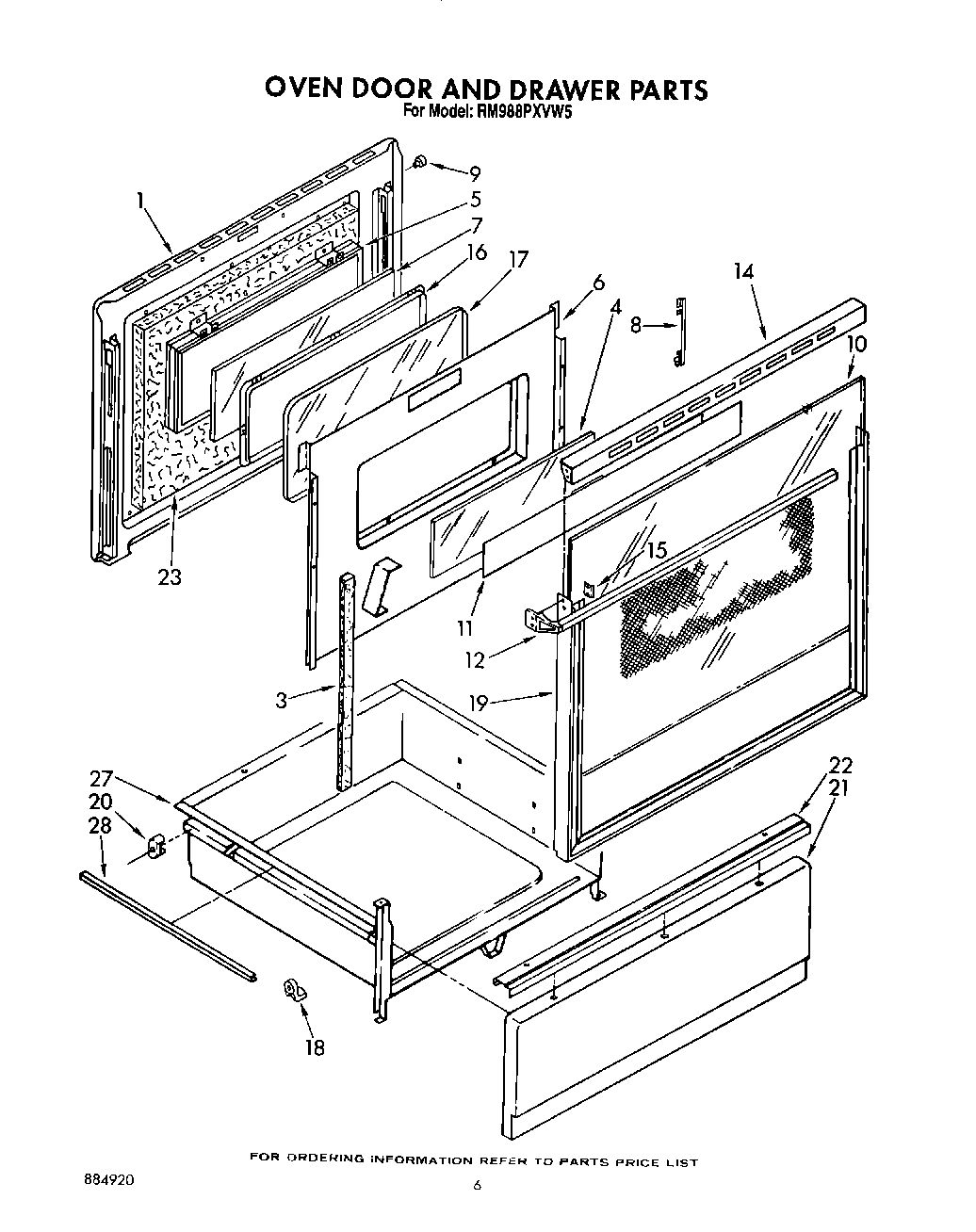

RM988PXVM5 04 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Screw
11	Foil, Door
12	Handle, Oven Door
14	Top, Door (Black Model)
15	Clip, Mtg (2)
15	Back Splash (Screw (4) 10AB x 1/2``)
15	WP355515 Whirlpool Screw
16	Frame, Inner
16	Screw
18	Glide, Front (2)
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
21	Panel, Drawer (Toast)
21	Panel, Drawer (Platinum)
21	WP488787 Whirlpool Refrigerator Screw
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Insulation, Door
23	16515 Whirlpool Clip
27	Drawer, Utility
28	Protector, Drawer (2)
