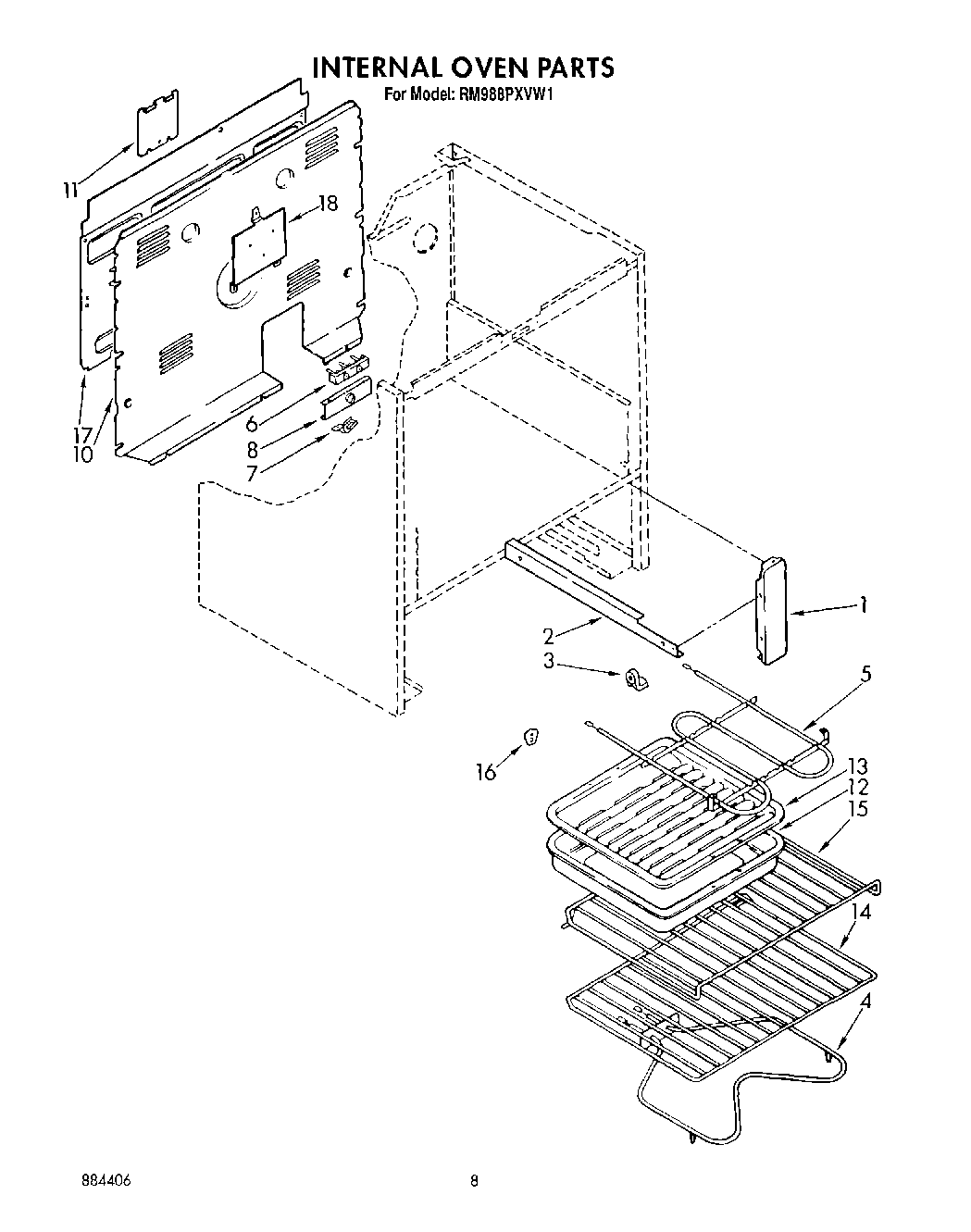

RM988PXVN1 05 – INTERNAL OVEN
Written by
in
RM988PXVN1 05 – INTERNAL OVEN
Products
Position
Product
1
Bracket, Mounting (2)
2
rail l.h. (includes illus. 3)
2
Rail R.H. (Includes Illus. 3)
3
Glide, Front (2)
4
ELMNT-BAKE
5
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5
Screw, 10-32 x 5/8 (4)
6
WP8203546 Whirlpool Terminal Block
6
Screw, (2) 10-16 x 1
7
Clip, Ground Wire
7
WPL 308498
8
Bracket, Service
10
Cover, Rear
11
WP112432 Whirlpool Nut Assembly
11
Cover, Service
13
4396923 Whirlpool Broil Pan Set Gray Porcelain
14
WPL 308173
15
WPL 308172
16
WPL 311982
16
WPL 312318
16
Screw, 10A x 1/2 (2) (Black)
17
Cover
18
SCREW
18
Plate, Mounting Terminal Block
←
