RM988PXVN1 06 – UPPER CHASSIS AND COMPONENT
Written by
in

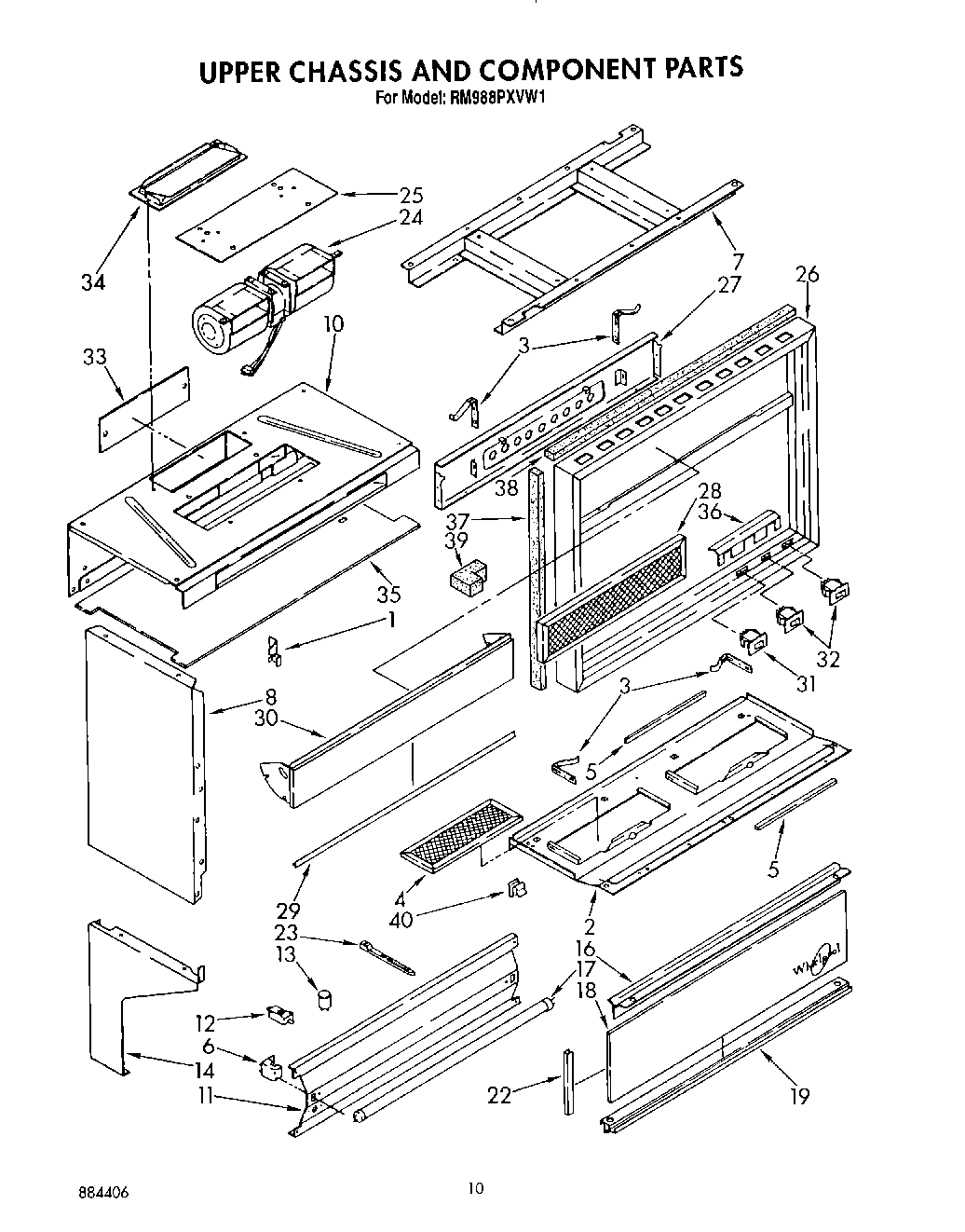

RM988PXVN1 06 – UPPER CHASSIS AND COMPONENT
Products
Position
Product
1
Bracket, Stop R.H.
1
Bracket, Stop L.H.
2
Panel, Bottom
2
Seal, Foam
2
Channel, Rubber (4)
4
Filter, Mesh (2)
5
Edge, Protector (2)
6
Socket, Assembly L.H.
6
Socket, Assembly R.H.
7
Support, Frame
8
WPL 3171913
8
Side Panel L.H. (Seal, Foam (2))
8
Side Panel, L.H. (Seal, Foam (2) Side Panel, R.H.)
8
Side Panel,
8
Side Panel, L.H. (White)
8
Side Panel, L.H. (White)
8
Side Panel L.H. (Platinum)
8
Side Panel L.H. (Toast)
8
Side Panel L.H. (Toast)
8
Side Panel L.H. (Platinum)
10
Top Panel
11
Panel, Backguard
12
WP965173 Whirlpool Dishwasher Screw
12
Socket, Flourscent
13
Starter, Lamp
14
SCREW
14
End Trim L.H. (Toast)
14
End Trim R.H. (Almond)
14
End Trim R.H. (Almond)
14
End Trim R.H. (Platinum)
14
End Trim R.H. (Toast)
14
End Trim R.H. (White)
14
Screw (10-12 x .875)
14
End Trim R.H. (Platinum)
14
end trim R.H. (almond)
16
WPL 313320
16
WP488627 Whirlpool Refrigerator Screw
17
WP95292 Whirlpool Fluorescent Light Bulb
18
WPL 313322
19
WPL 313321
19
WP90767 Whirlpool Screw
22
WPL 313319
23
WPW10339879 Whirlpool Wire Tie
24
Blower, Exhaust
25
Cover, Access
25
Nut (6)
26
WPL 3149557
27
Screw, Schoulder (2)
27
WPL 3147755
27
WPL 3147764
27
WPL 3147858
27
Panel, Vent Door
27
Screw
28
WPL 3147525
28
WPL 3147607
29
WP313808 Whirlpool Screw
29
WPL 3149007
30
WPL 3170269
31
WP3147265 Whirlpool Rocker Switch
32
WP4314961 Whirlpool Lite Switch
33
WPL 3147726
34
WPL 3147843
35
WP488729 Whirlpool Refrigerator Door Screw
35
WPL 3147250
35
WPL 3147590
36
WPL 3148158
37
WPL 3147595
38
WPL 3147596
39
WPL 3149016
40
Clip
←
