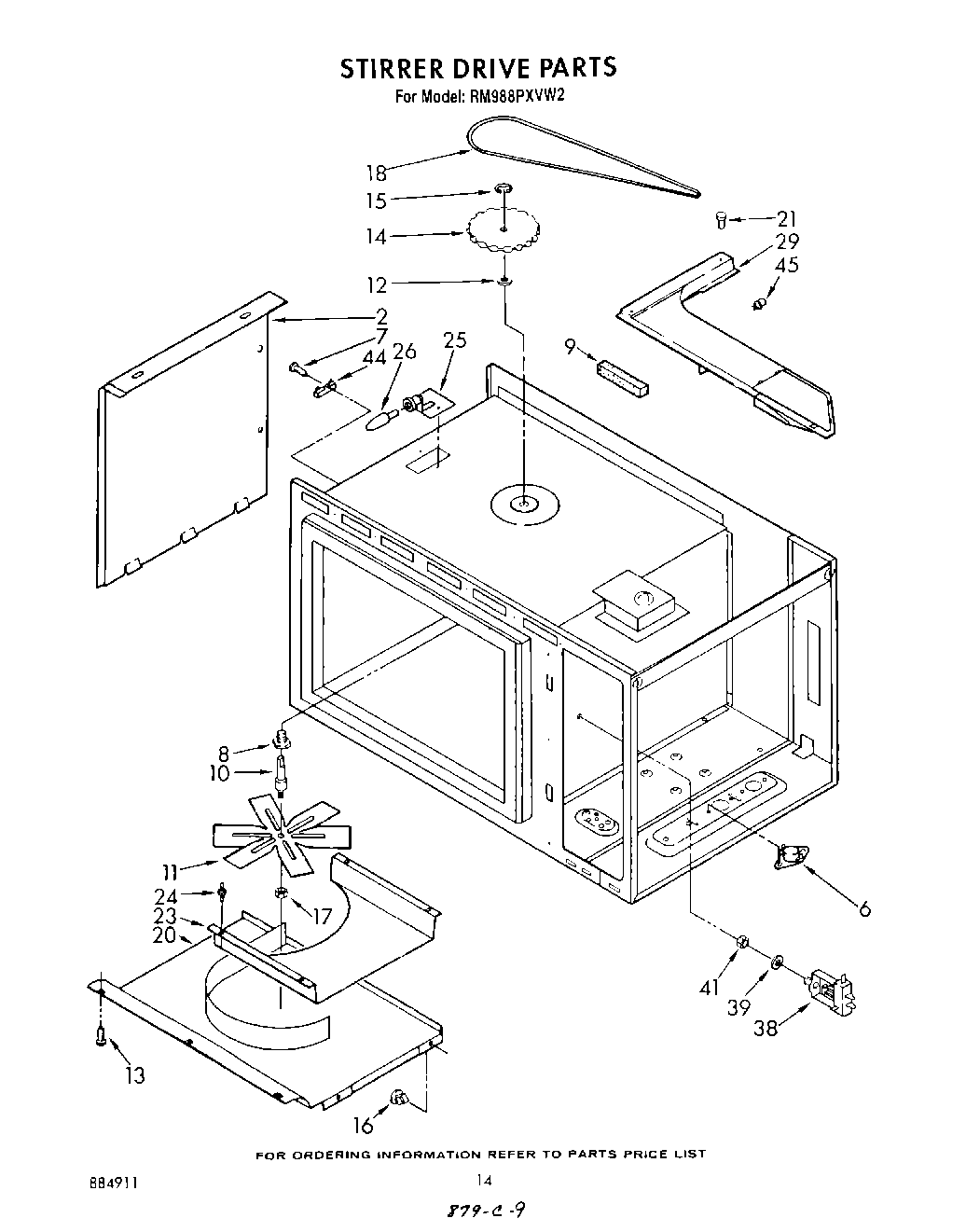

RM988PXVN2 09 – STIRRER DRIVE
Written by
in
RM988PXVN2 09 – STIRRER DRIVE
Products
Position
Product
2
WP488729 Whirlpool Refrigerator Door Screw
2
Cover, Side
6
Thermostat
6
Screw, 6AB x 3/8 (2)
8
Bushing, Stirrer
9
Seal, Foam
10
Shaft, Stirrer
11
Stirrer Blade
12
Washer, Nylon
13
screw, 8-32 x 1/2 (3)
14
Pulley, Stirrer Blade
15
“E“ Ring
16
Fastener (4)
17
WP487939 Whirlpool Refrigerator Nut
18
WP313646 Whirlpool Microwave Drive Belt
20
Silicone Rubber Gasket
21
Fastener (2)
23
Plate, Tuning
24
Support (4)
25
Snap-In Socket
26
WP3395618 Whirlpool Light Bulb
29
Baffle, Air Exhaust
38
Probe Jack
39
Washer, Internal Lock
41
Nut
44
Fuse, Thermal
44
screw
45
Screw
45
Sensor, Gas
←
