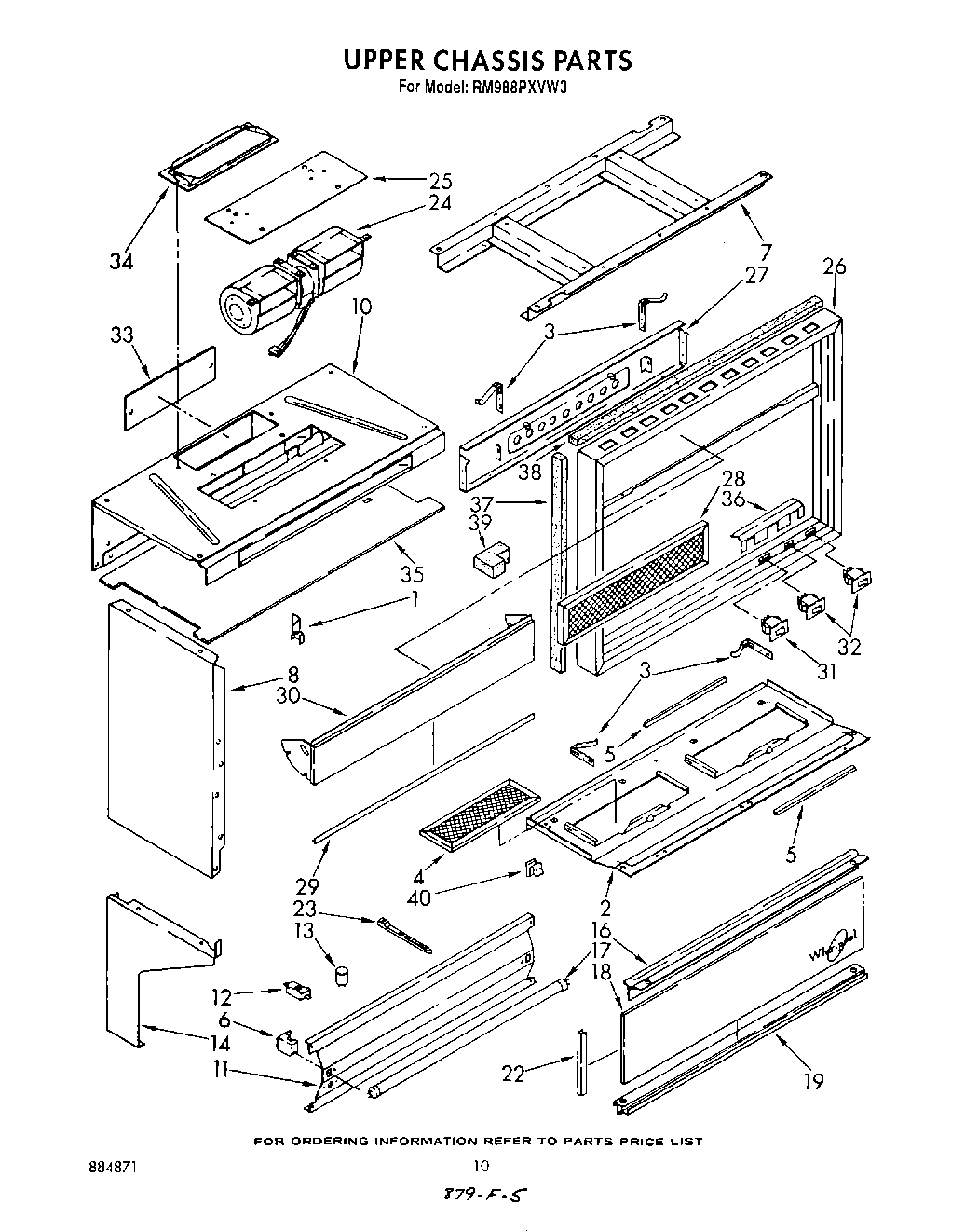

RM988PXVN3 06 – UPPER CHASSIS

Products

Position	Product
1	Bracket, Stop R.H.
1	Bracket, Stop L.H.
2	Panel, Bottom
2	Seal, Foam
2	Channel, Rubber (4)
4	Filter, Mesh (2)
5	Edge, Protector (2)
6	Socket, Assembly L.H.
6	Socket, Assembly R.H.
7	Support, Frame
8	WPL 3171913
8	Side Panel L.H. (Seal, Foam (2))
8	Side Panel, L.H. (Seal, Foam (2) Side Panel, R.H.)
8	Side Panel,
8	Side Panel, L.H. (White)
8	Side Panel, L.H. (White)
8	Side Panel L.H. (Platinum)
8	Side Panel L.H. (Toast)
8	Side Panel L.H. (Toast)
8	Side Panel L.H. (Platinum)
10	Top Panel
11	Panel, Backguard
12	WP965173 Whirlpool Dishwasher Screw
12	Socket, Flourscent
13	Starter, Lamp
14	SCREW
14	End Trim L.H. (Toast)
14	End Trim R.H. (Almond)
14	End Trim R.H. (Almond)
14	End Trim R.H. (Platinum)
14	End Trim R.H. (Toast)
14	End Trim R.H. (White)
14	Screw (10-12 x .875)
14	End Trim R.H. (Platinum)
14	end trim R.H. (almond)
16	WPL 313320
16	WP488627 Whirlpool Refrigerator Screw
17	WP95292 Whirlpool Fluorescent Light Bulb
18	WPL 313322
19	WPL 313321
19	WP90767 Whirlpool Screw
22	WPL 313319
23	WPW10339879 Whirlpool Wire Tie
24	Blower, Exhaust
25	Cover, Access
25	Nut (6)
26	WPL 3149557
27	Washer (2)
27	Screw
27	Panel, Vent Door
27	Screw, Schoulder (2)
27	WPL 3147755
27	WPL 3147764
27	WPL 3147858
28	WPL 3147525
28	WPL 3147607
29	WPL 3149007
29	WP313808 Whirlpool Screw
30	WPL 3170269
31	WP3147265 Whirlpool Rocker Switch
32	WP4314961 Whirlpool Lite Switch
33	WPL 3147726
34	WPL 3147843
35	WPL 3147250
35	WPL 3147590
35	WP488729 Whirlpool Refrigerator Door Screw
36	WPL 3148158
37	WPL 3147595
38	WPL 3147596
39	WPL 3149016
40	Clip
