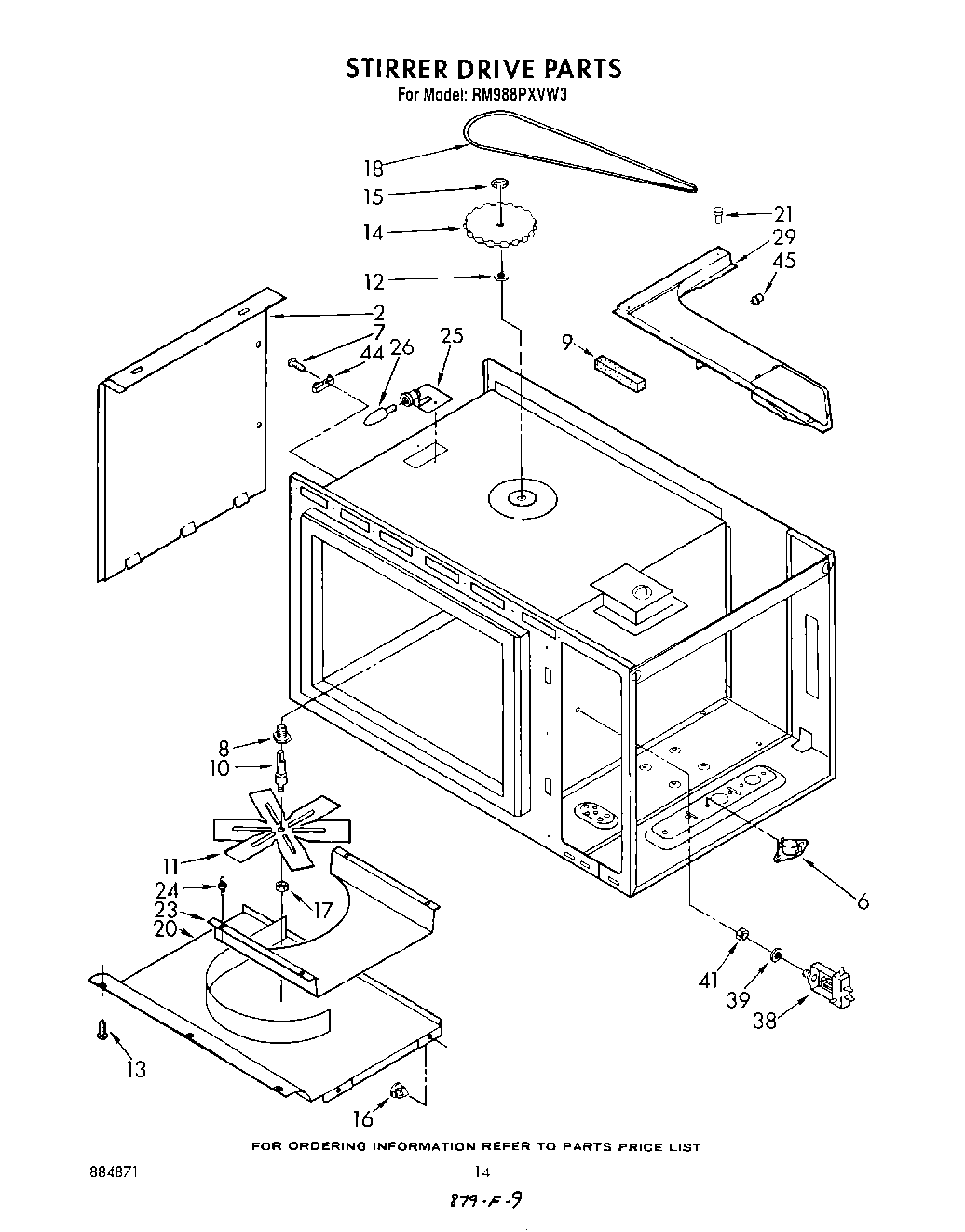

RM988PXVN3 09 – STIRRER DRIVE

Products

Position	Product
2	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Side
3	grille, air
4	Nut (3)
6	Screw, 6AB x 3/8 (2)
6	Thermostat
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	screw, 8-32 x 1/2 (3)
14	Pulley, Stirrer Blade
15	``E`` Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
20	Silicone Rubber Gasket
21	Fastener (2)
23	Plate, Tuning
24	Support (4)
25	Snap-In Socket
26	WP3395618 Whirlpool Light Bulb
29	Baffle, Air Exhaust
38	Probe Jack
39	Washer, Internal Lock
41	Nut
44	screw
44	Fuse, Thermal
45	Sensor, Gas
45	Screw
