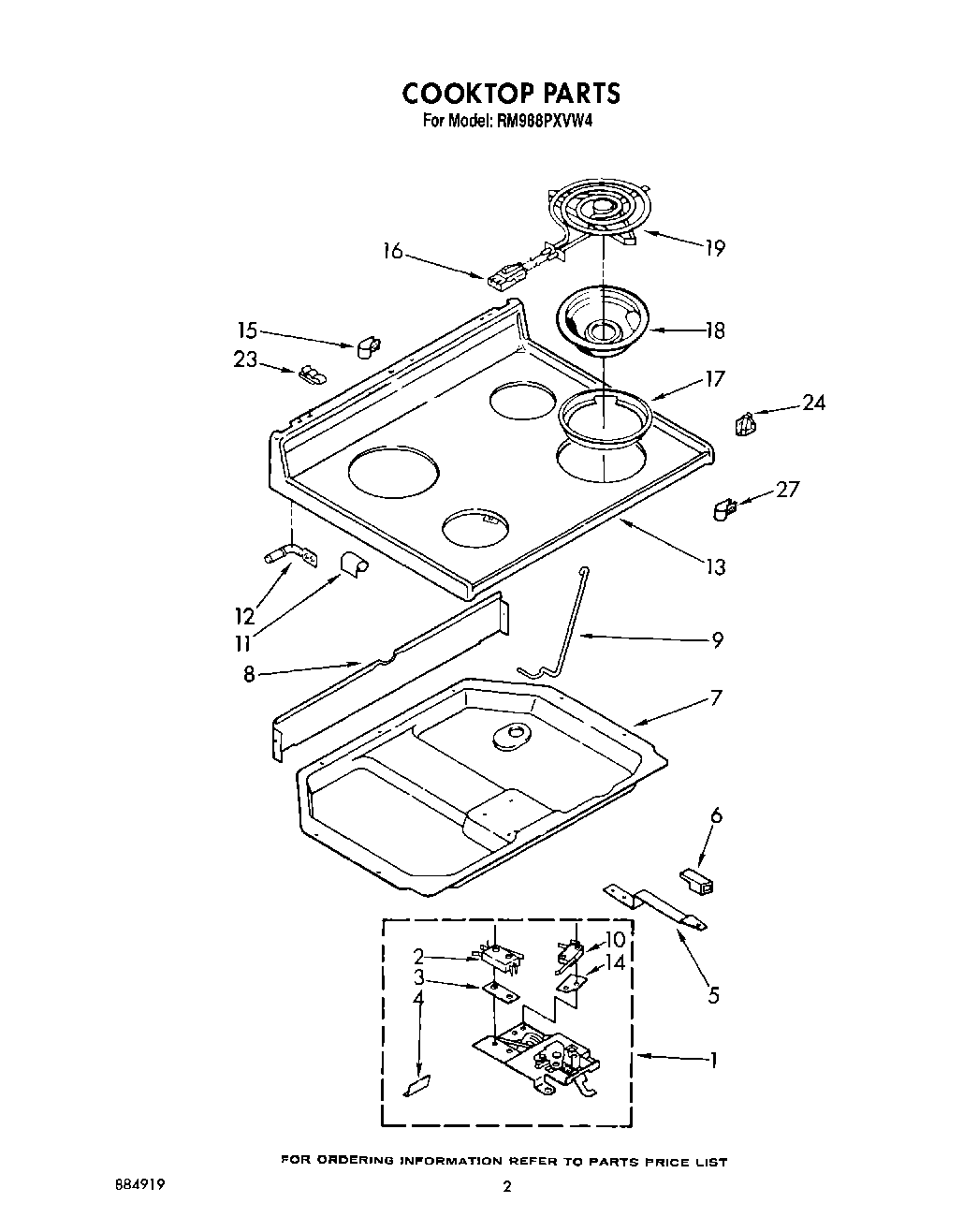

RM988PXVN4 02 – COOKTOP

RM988PXVN4 02 – COOKTOP

Written by

in

RM988PXVN4 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4WP313808 Whirlpool Screw
4Shield, Latch
4Screw
5WP488627 Whirlpool Refrigerator Screw
5Screw (3)
5Screw
5Handle, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7WP3390631 Whirlpool Screw
7Box, Burner
8Shield, Wiring
9Rod, Cooktop
10Switch, Lock
11Bracket, Cooktop (2)
12SCREW
12Pin, Cooktop (2)
13Cooktop (Toast)
13Cooktop (White)
13Cooktop (Almond)
13Cooktop (Platinum)
14WPL 3147864
16WP4332752 Whirlpool Clip
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18Reflector Pan (6“ (2))
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
23Clip, Tube
24814103 Whirlpool Clip
27WP308605 Whirlpool Refrigerator Clamp
27WP965173 Whirlpool Dishwasher Screw
