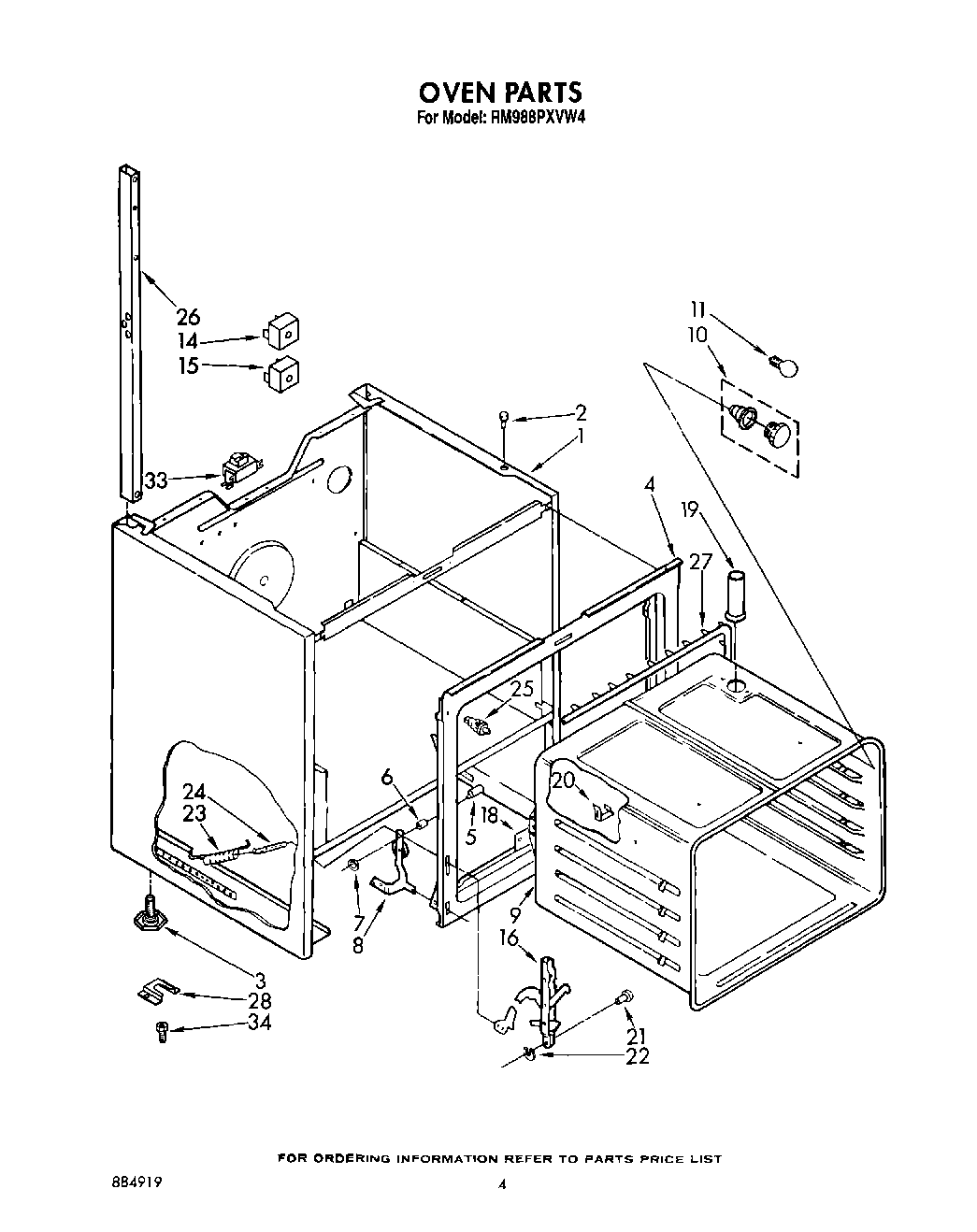

RM988PXVN4 03 – OVEN, LIT/OPTIONAL
Written by
in
RM988PXVN4 03 – OVEN, LIT/OPTIONAL
Products
Position
Product
WPL LIT3150400
WPL LIT3147571
WPL LIT312913
WPL LIT3147575
WPL LIT3147391
Cook
Tech She
Repair Parts List
WPL LIT313358
1
Main Chassis (Toast)
1
Main Chassis (Almond)
1
Main Chassis (White)
1
Main Chassis (Platinum)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Frame, Front
5
Pin, Hinge Ear (2)
6
Snubber, Door (2)
7
Pushnut (2)
8
Hinge (L.H.)
8
Hinge (R.H.)
9
Oven
9
Screw (Top)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
14
Sw
15
Switch, Bake
15
WPL 314215
16
Channel, Arm (2)
18
Screw (3)
18
Bracket, Oven (Mounting)
19
Vent, Oven
19
Screw, 10A x 1/2 (2) (Black)
20
98005642 Whirlpool Clip
21
WP307986 Whirlpool Hinge Pin
22
Retainer Ring (2)
23
WP308126 Whirlpool Door Spring
24
WP308125 Whirlpool Microwave Range/Cooktop Anchor
25
Switch, Door
26
Support, Tubing R.H.
26
support, tubing L.H.
27
Seal, Door
27
WP313808 Whirlpool Screw
28
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
28
Screw
33
SCREW
33
WPL 3147001
33
Ballast
34
WPL 310433
34
Anchor, Plastic
34
WPW10208653 Whirlpool Insulation
←
