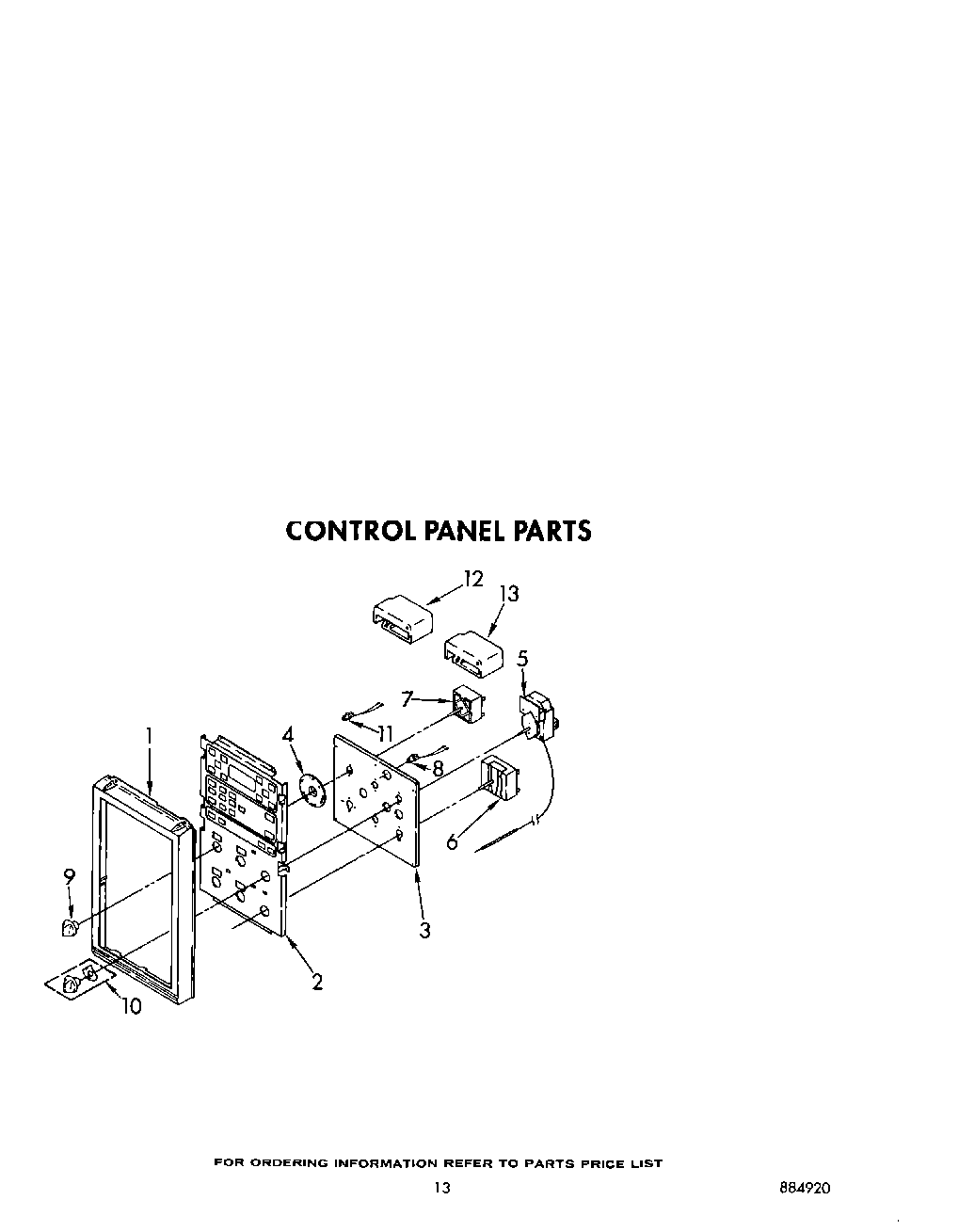

RM988PXVN5 08 – CONTROL PANELadmin2025-04-26T12:08:52+00:00RM988PXVN5 08 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | Module, Control |
| 3 | bracket, control (mounting) |
| 3 | Screw |
| 4 | Screw |
| 4 | Skirt, Dail (4) |
| 5 | thermostat |
| 5 | WP313808 Whirlpool Screw |
| 6 | Switch, Selector |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | switch, infinite (4) |
| 7 | Screw, 8-32 x 3/16 (2) |
| 8 | light, indicator (3) |
| 9 | Knob, Control (4) |
| 10 | knob, selector (2) |
| 11 | light, indicator |
| 12 | Relay, Vent (24V, Clear) |
| 13 | Screw |
| 13 | 697811 Whirlpool Relay |
