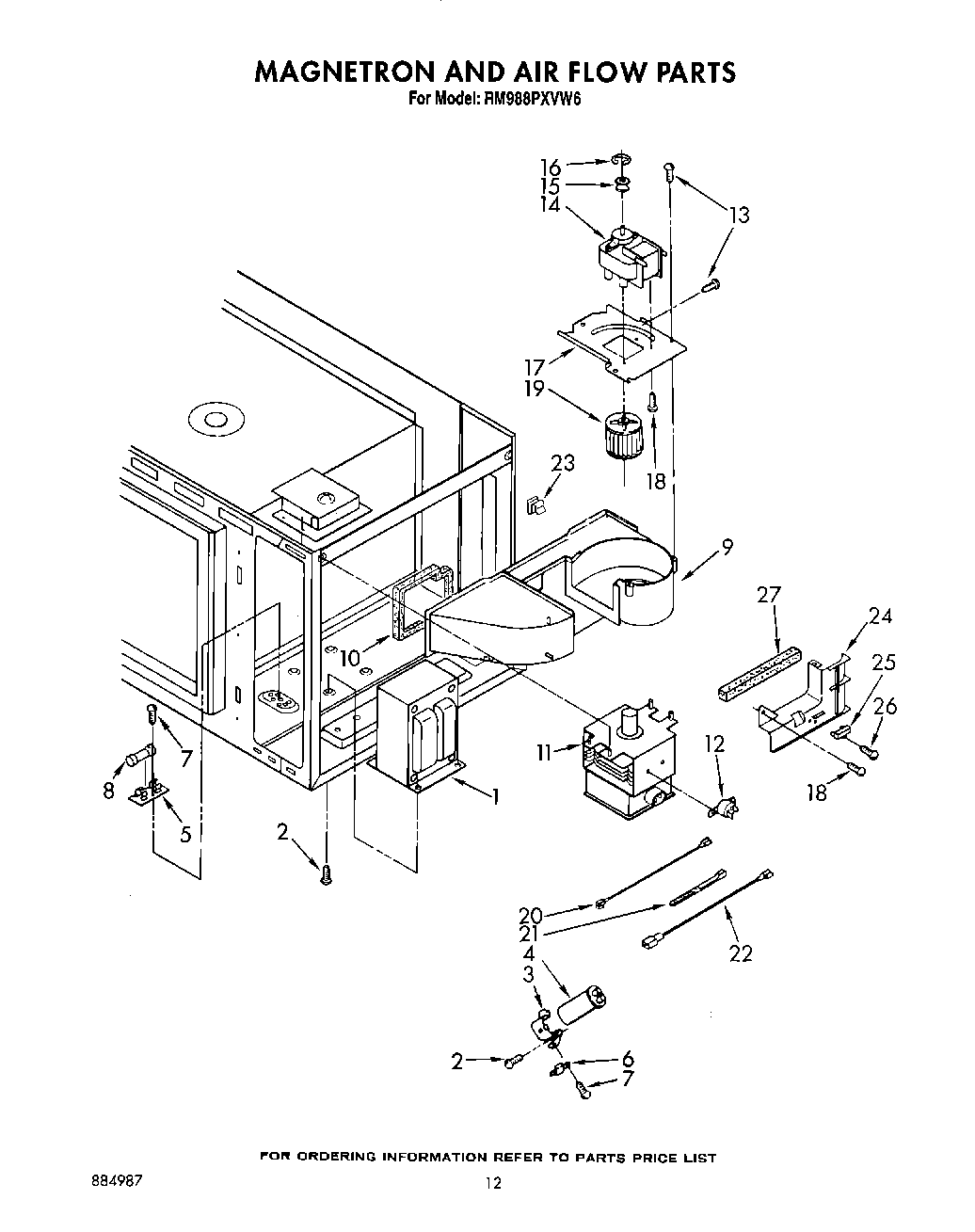

RM988PXVN6 07 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer (Alt.)
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3	Bracket, Capacitor
4	Capacitor
4	Capacitor (Alt.)
4	capacitor (alt.)
5	4454949 Whirlpool Oven Fuse Block
6	Rectifier, High Voltage
8	WPW10017410 Whirlpool Fuse
9	Air Duct (Horizontal)
10	Seal, Air Duct
11	Magnetron (Alt.)
11	Magnetron
11	Magnetron (Alt.)
11	Magnetron (Alt.)
11	Magnetron (Alt.)
11	Magnetron (Alt.)
12	Thermal Protector (Alt.)
12	Thermal Protector
12	Thermal Protector (Alt.)
14	Transmotor
15	Pulley, Motor
16	“E“ Ring
17	Bracket, Motor
18	WP486579 Whirlpool Air Conditioner Screw
19	Wheel, Blower
20	Jumper, High Voltage Red (6-5/16“)
21	WPW10339879 Whirlpool Wire Tie
22	High Voltage Lead, Gray 6-3/4“ (2)
23	screw
23	Clip
24	Screw, 11-16 x 1/2 Double Load Space Thread (5)
24	Extension, Air Duct
25	Fuse, Thermal
26	Screw
27	Seal, Foam
