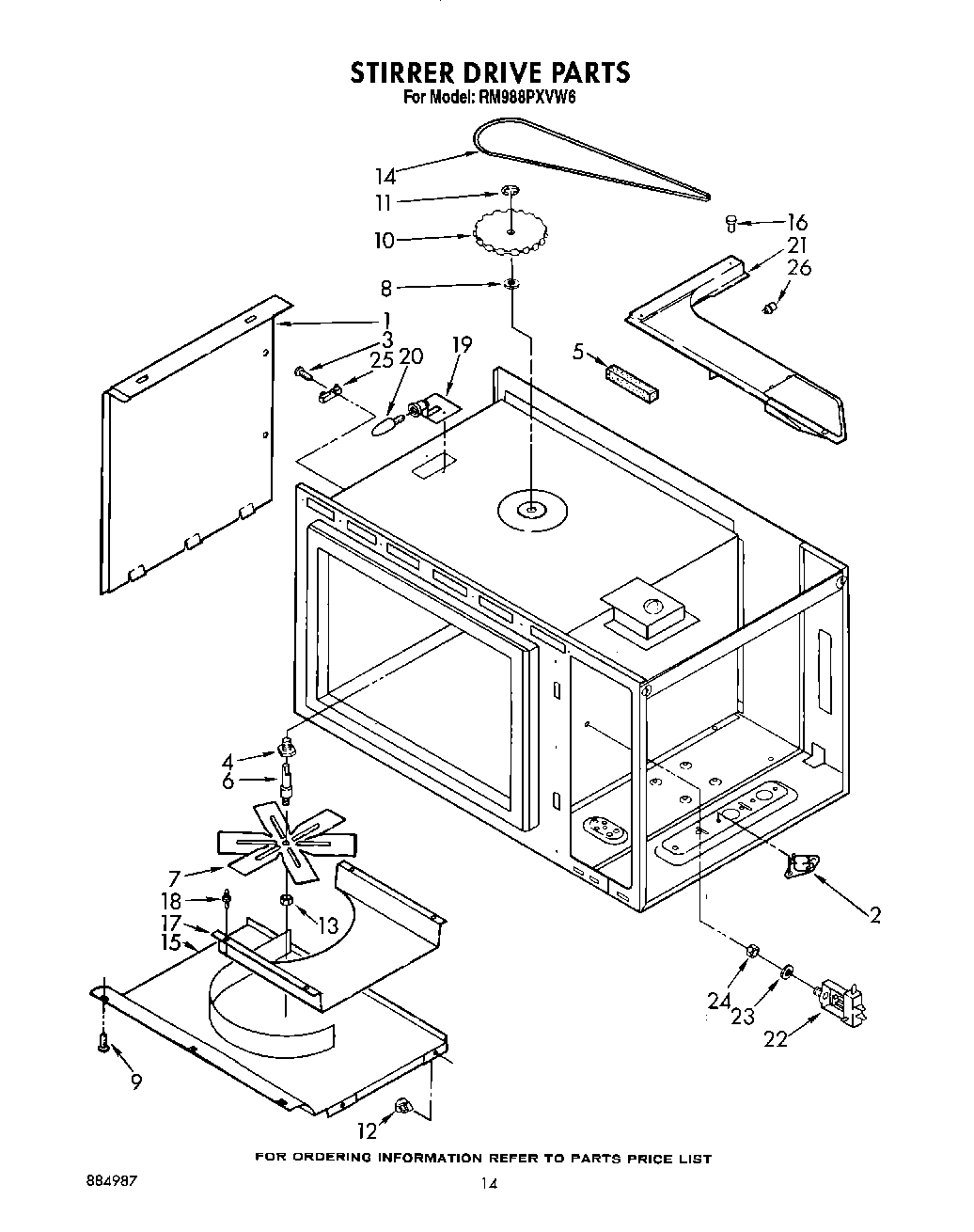

RM988PXVN6 09 – STIRRER DRIVE

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cover, Side
2	Thermostat
4	Bushing, Stirrer
5	Seal, Foam
6	Shaft, Stirrer
7	Stirrer Blade
8	Washer, Nylon
9	screw, 8-32 x 1/2 (3)
10	Pulley, Stirrer Blade
11	“E“ Ring
12	Fastener (4)
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	Silicone Rubber Gasket
16	Fastener (2)
17	Plate, Tuning
18	Support (4)
19	Snap-In Socket
20	WP3395618 Whirlpool Light Bulb
21	Baffle, Air Exhaust
22	Probe Jack
23	Washer, Internal Lock
24	Nut
25	Fuse, Thermal
25	screw
26	Screw
26	Sensor, Gas
