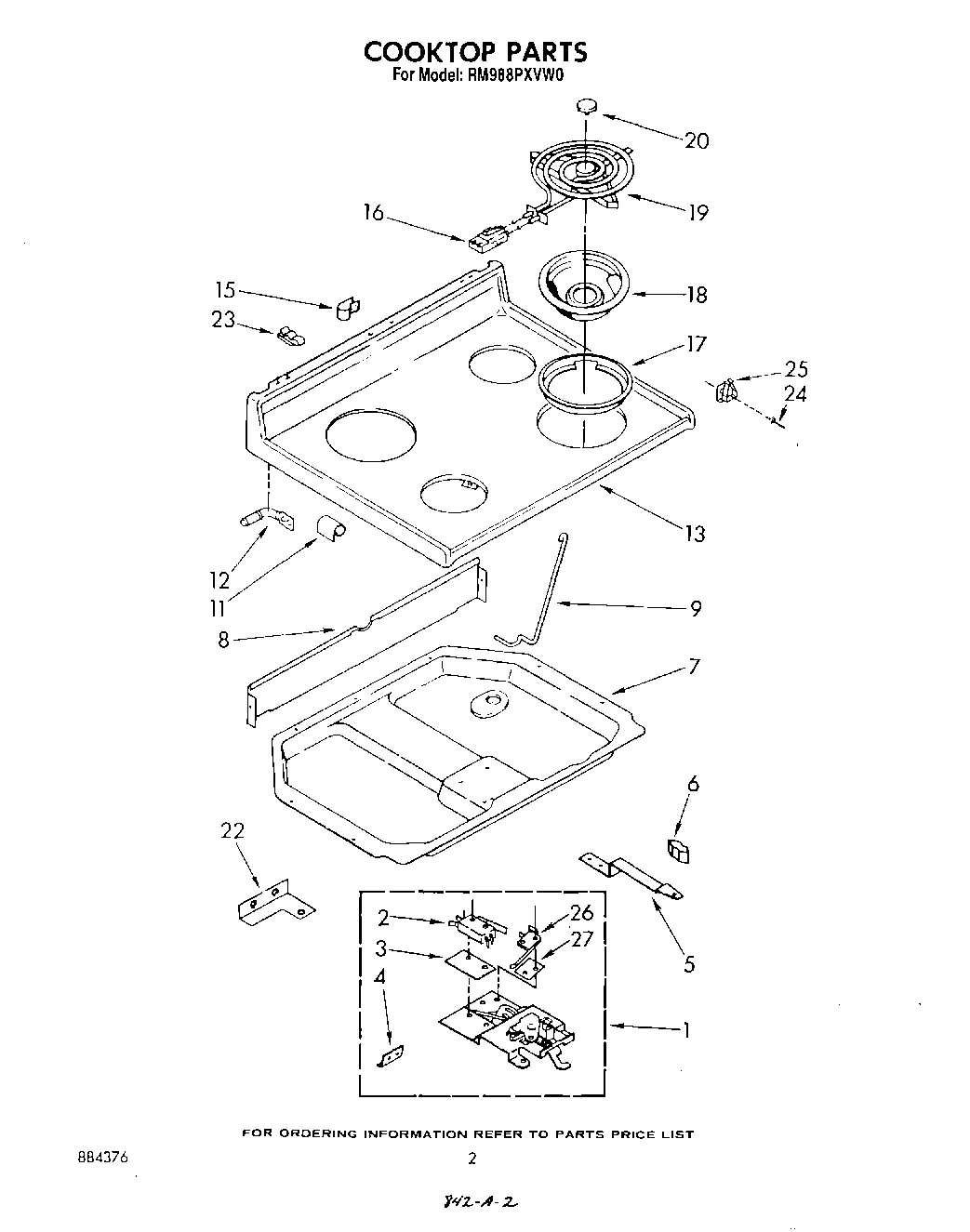

RM988PXVW0 02 – COOK TOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	WP313808 Whirlpool Screw
4	Screw
4	Shield, Latch
5	Handle, Latch
5	WP488627 Whirlpool Refrigerator Screw
5	Screw (3)
5	Screw
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	SCREW
11	Bracket, Cooktop (2)
13	Cooktop (White)
13	Cooktop (Almond)
15	WP308605 Whirlpool Refrigerator Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	WP4332752 Whirlpool Clip
17	W10858781 Whirlpool Trim Ring
17	W10854470 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
22	WPL 312320
22	Screw, 10A x 1/2 (2) (Black)
23	Clip, Tube
25	814103 Whirlpool Clip
26	Switch, Lock
27	WPL 3147864
