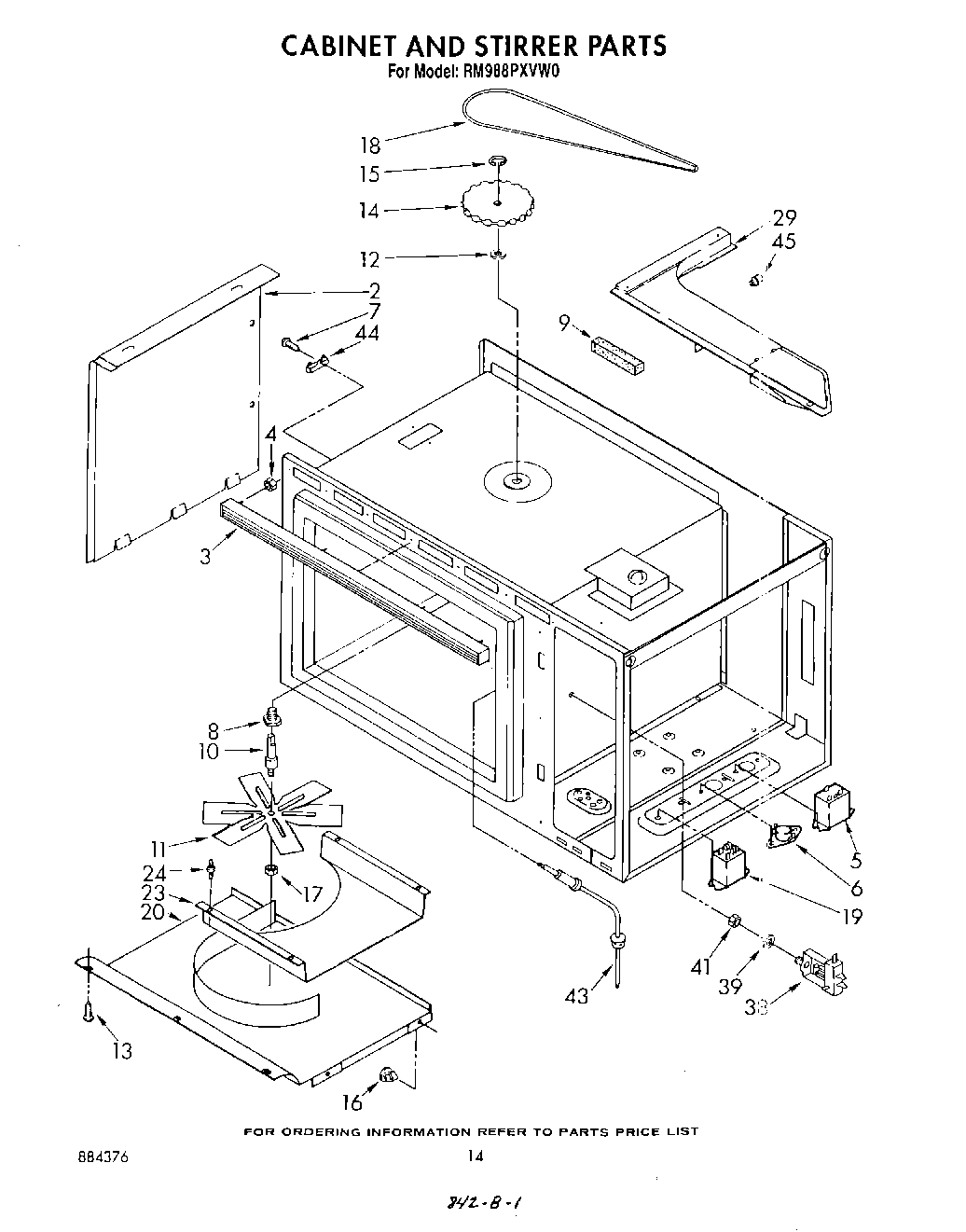

RM988PXVW0 08 – CABINET AND STIRRER

RM988PXVW0 08 – CABINET AND STIRRER

Written by

in

RM988PXVW0 08 – CABINET AND STIRRER

Products

PositionProduct
2WP488729 Whirlpool Refrigerator Door Screw
2Cover, Side
3Deflector, Air
4Nut (3)
5Relay, Vent (24V, Clear)
6Screw, 6AB x 3/8 (2)
6Thermostat
7screw
8Bushing, Stirrer
9Seal, Foam
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
13screw, 8-32 x 1/2 (3)
14Pulley, Stirrer Blade
15“E“ Ring
16Fastener (4)
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
19Screw
19697811 Whirlpool Relay
20Silicone Rubber Gasket
23Plate, Tuning
24Support (4)
29Baffle, Air Exhaust
38Jack, Probe
39Washer, Internal Lock
41Nut
43(Alt.)
44Fuse, Thermal
45Sensor, Gas
