RM988PXVW0 11 – CONTROL – Aparts

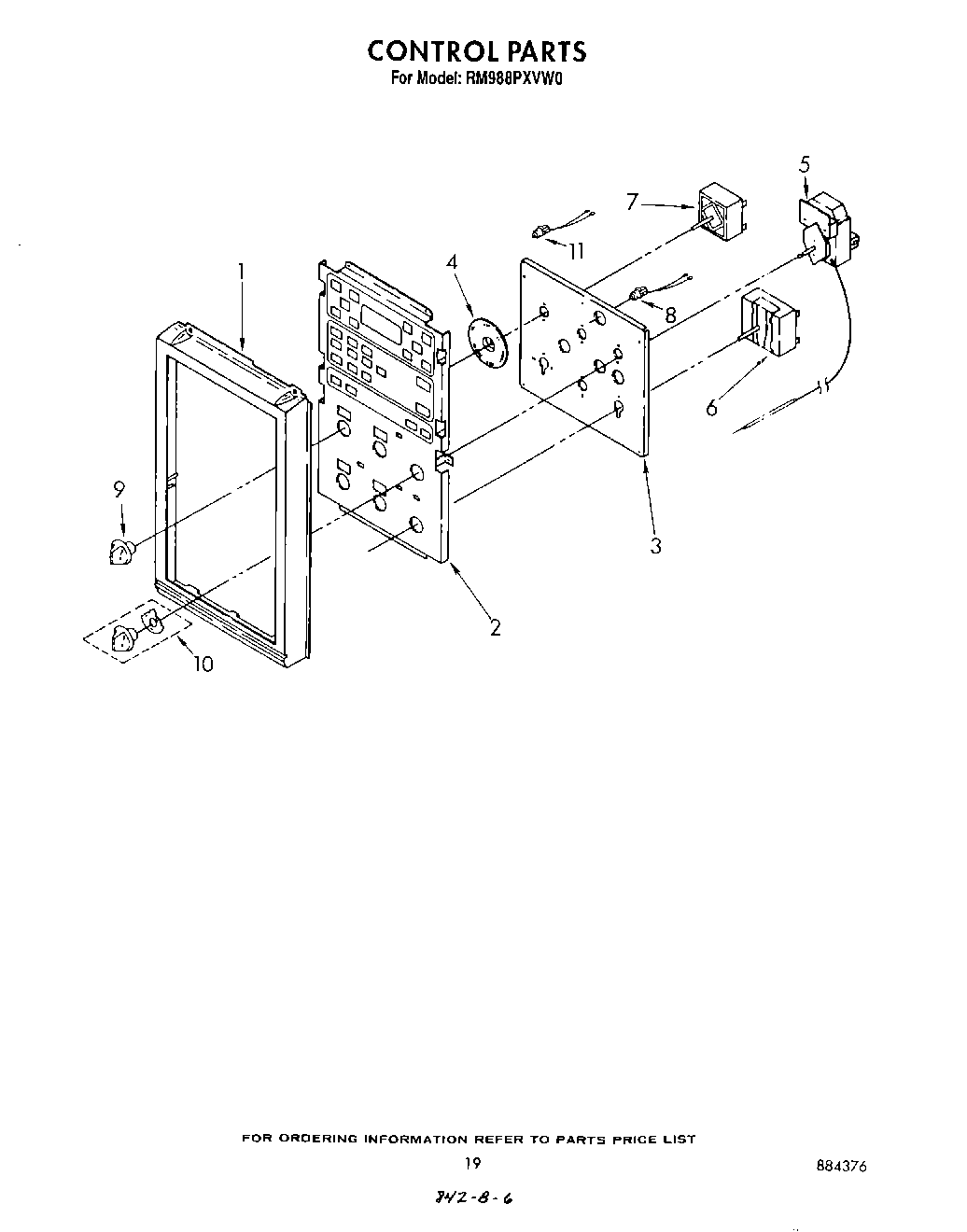

RM988PXVW0 11 – CONTROL

Products

Position	Product
1	Frame, Control Panel
2	Module, Control
3	Screw
3	bracket, control (mounting)
4	Skirt, Dail (4)
5	WP313808 Whirlpool Screw
5	thermostat
6	Switch, Selector
7	Screw, 8-32 x 3/16 (2)
7	switch, infinite (4)
8	light, indicator (3)
9	Knob, Control (4)
10	knob, selector (2)
11	light, indicator
