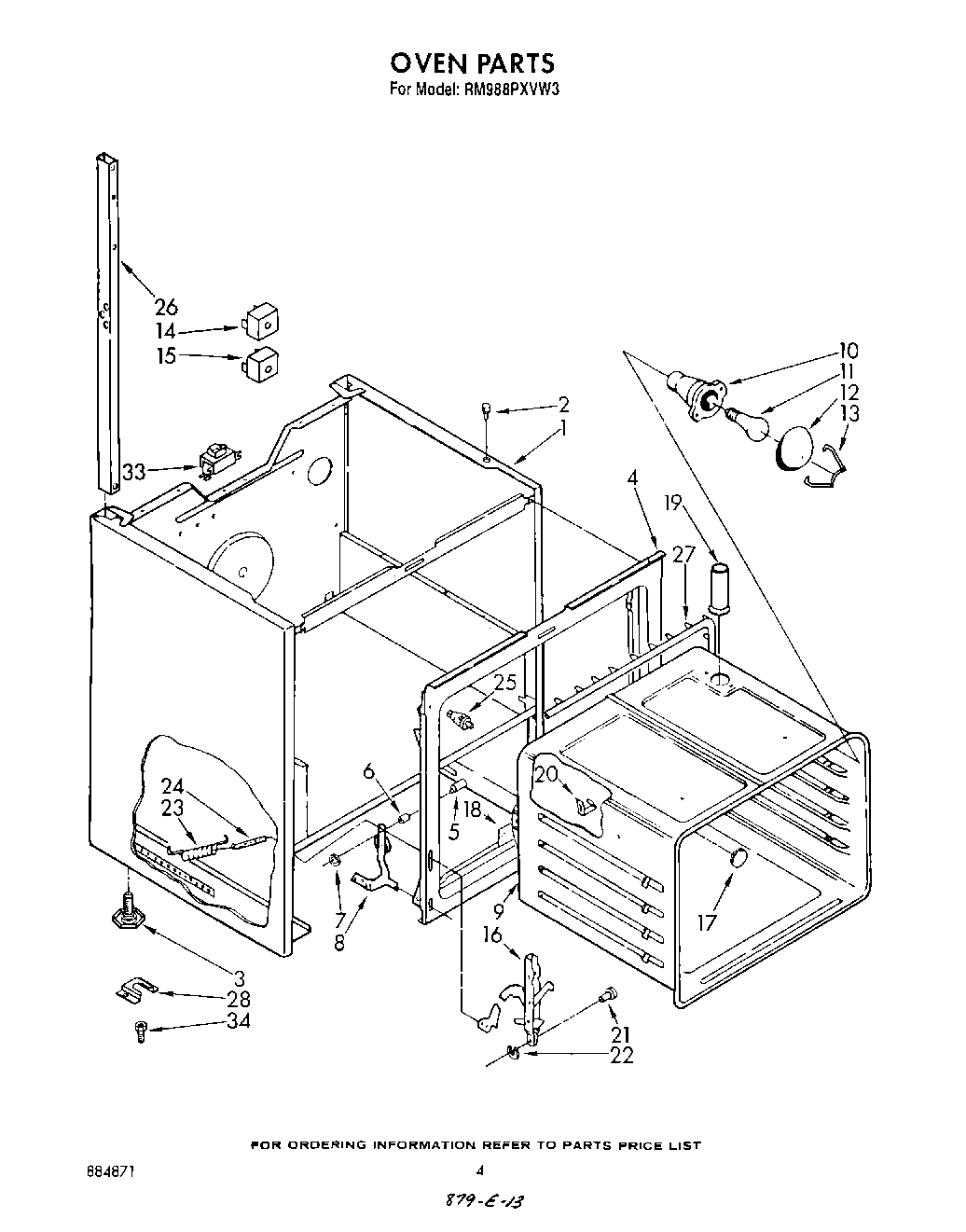

RM988PXVW3 03 – OVEN

Products

Position	Product
	WPL LIT884871
	WPL LIT3147575
	Use & Care Guide (Microwave)
	WPL LIT3148614
	WPL LIT3147571
	WPL LIT313358
	Use & Care Guide
	Tech She
	Cook
1	Main Chassis (Almond)
1	Main Chassis (Toast)
1	Main Chassis (Platinum)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
10	Screw (10-12 x .875)
10	Socket, Oven Light
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	WPL 314215
15	Switch, Bake
16	Channel, Arm (2)
17	Plug Button
18	Screw (3)
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	support, tubing L.H.
26	Support, Tubing R.H.
27	WP313808 Whirlpool Screw
27	Seal, Door
28	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
28	Screw
33	Ballast
33	SCREW
34	WPL 310433
34	WPW10208653 Whirlpool Insulation
34	Anchor, Plastic
