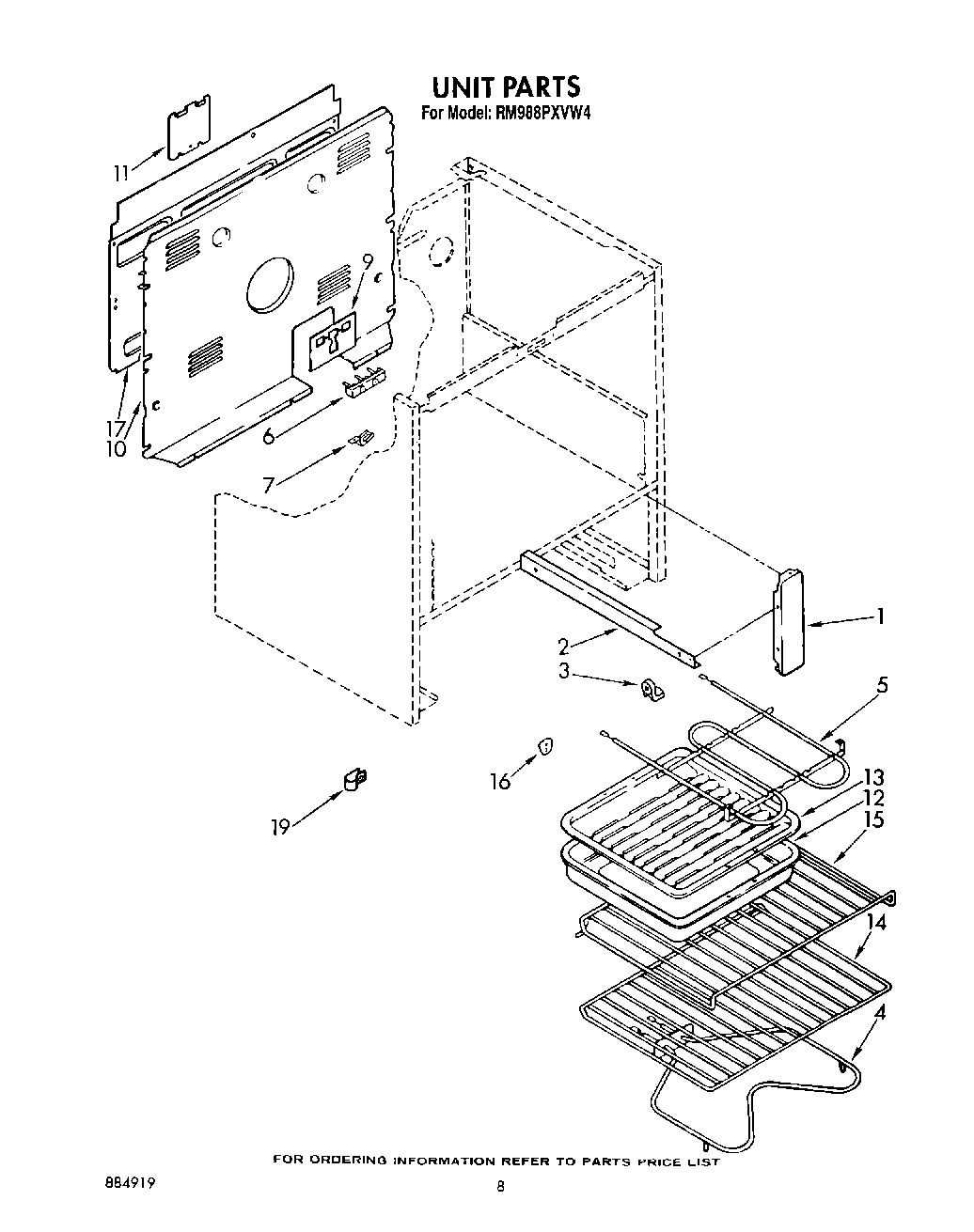

RM988PXVW4 05 – UNIT

Products

Position	Product
	Screw (2)
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Barrier, Shield
10	Cover, Rear
11	Cover, Service
11	WP112432 Whirlpool Nut Assembly
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	WPL 311982
17	Strain Relief (3)
17	WP488729 Whirlpool Refrigerator Door Screw
17	Cover
17	SCREW
