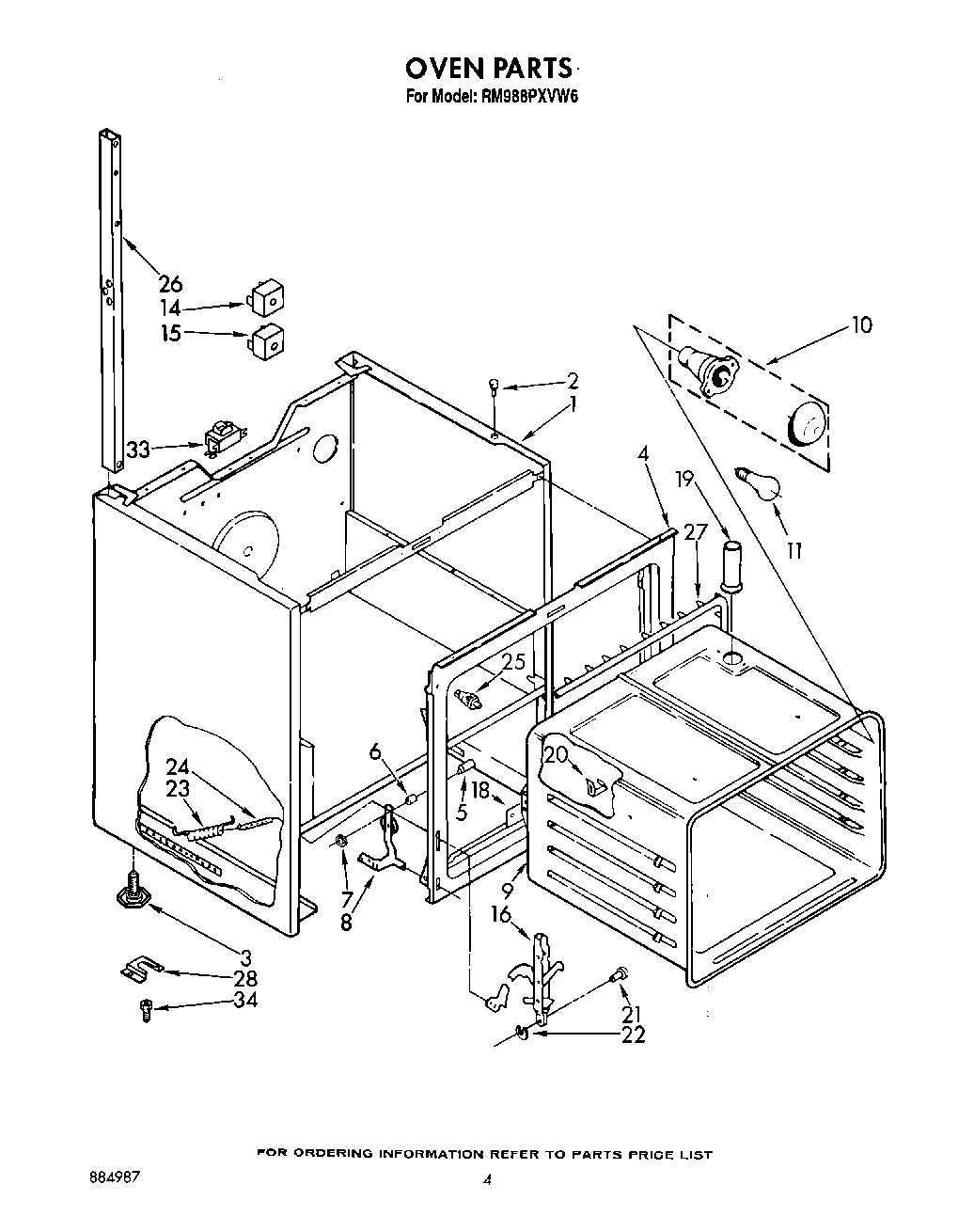

RM988PXVW6 03 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3147391
	Use & Care Guide
	Cook
	Repair Parts List
	WPL LIT312913
	Tech Sheet
	WPL LIT3150400
	WPL LIT3149507
	Chart, Sensor Cooking
1	Main Chassis (Almond)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
18	Screw (3)
18	Bracket, Oven (Mounting)
19	9755804 Whirlpool Oven Vent Tube
19	Screw, 10A x 1/2 (2) (Black)
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Support, Tubing R.H.
26	support, tubing L.H.
27	Seal, Door
28	Screw
28	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
33	SCREW
33	WPL 3147001
33	Ballast
34	WPL 3169094
34	WPL 3169093
34	Anchor, Plastic
