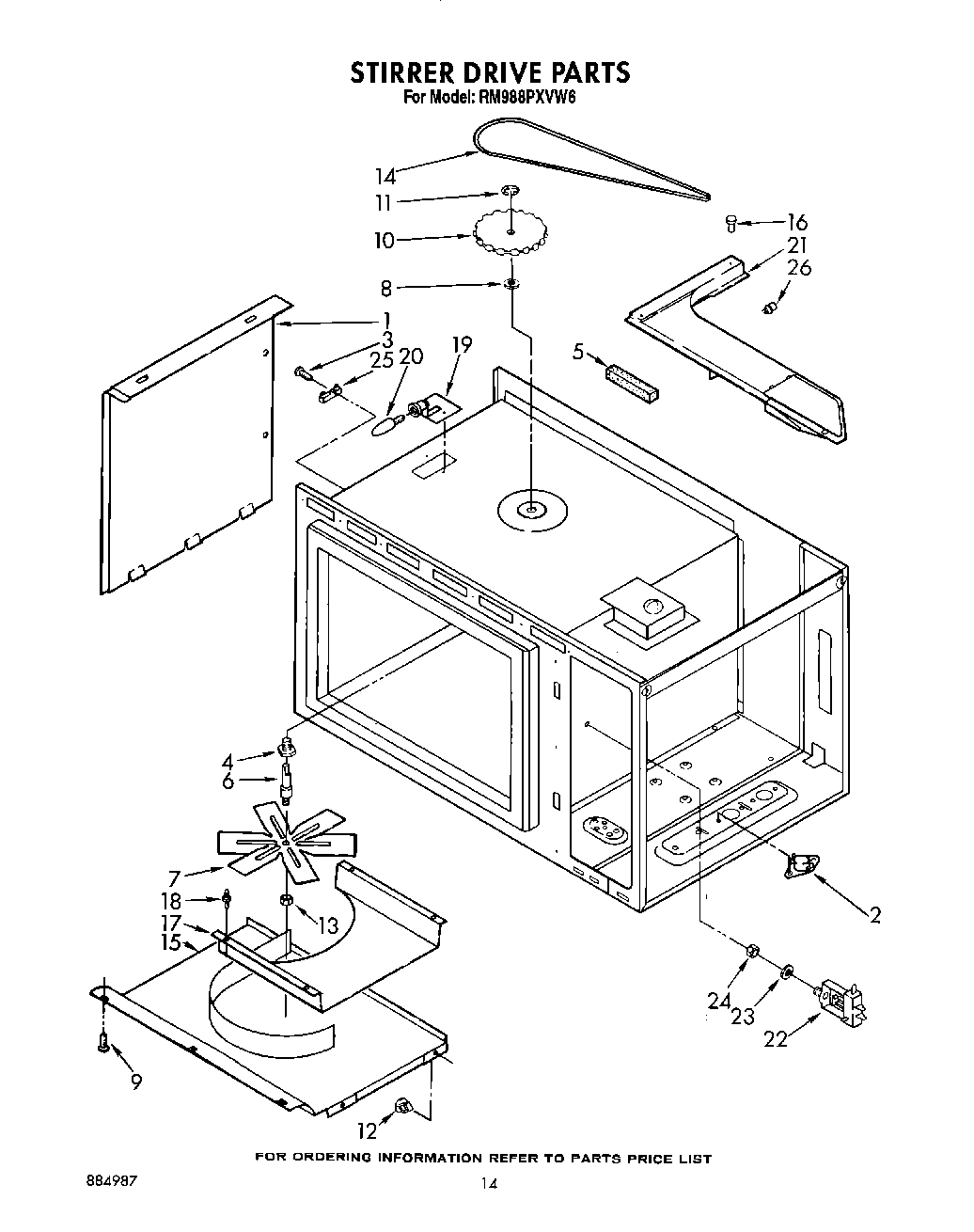

RM988PXVW6 09 – STIRRER DRIVE

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
1	Cover, Side
2	Thermostat
4	Bushing, Stirrer
5	Seal, Foam
6	Shaft, Stirrer
7	Stirrer Blade
8	Washer, Nylon
9	screw, 8-32 x 1/2 (3)
10	Pulley, Stirrer Blade
11	``E`` Ring
12	Fastener (4)
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	Silicone Rubber Gasket
16	Fastener (2)
17	Plate, Tuning
18	Support (4)
19	Snap-In Socket
20	WP3395618 Whirlpool Light Bulb
21	Baffle, Air Exhaust
22	Probe Jack
23	Washer, Internal Lock
24	Nut
25	Fuse, Thermal
25	screw
26	Screw
26	Sensor, Gas
