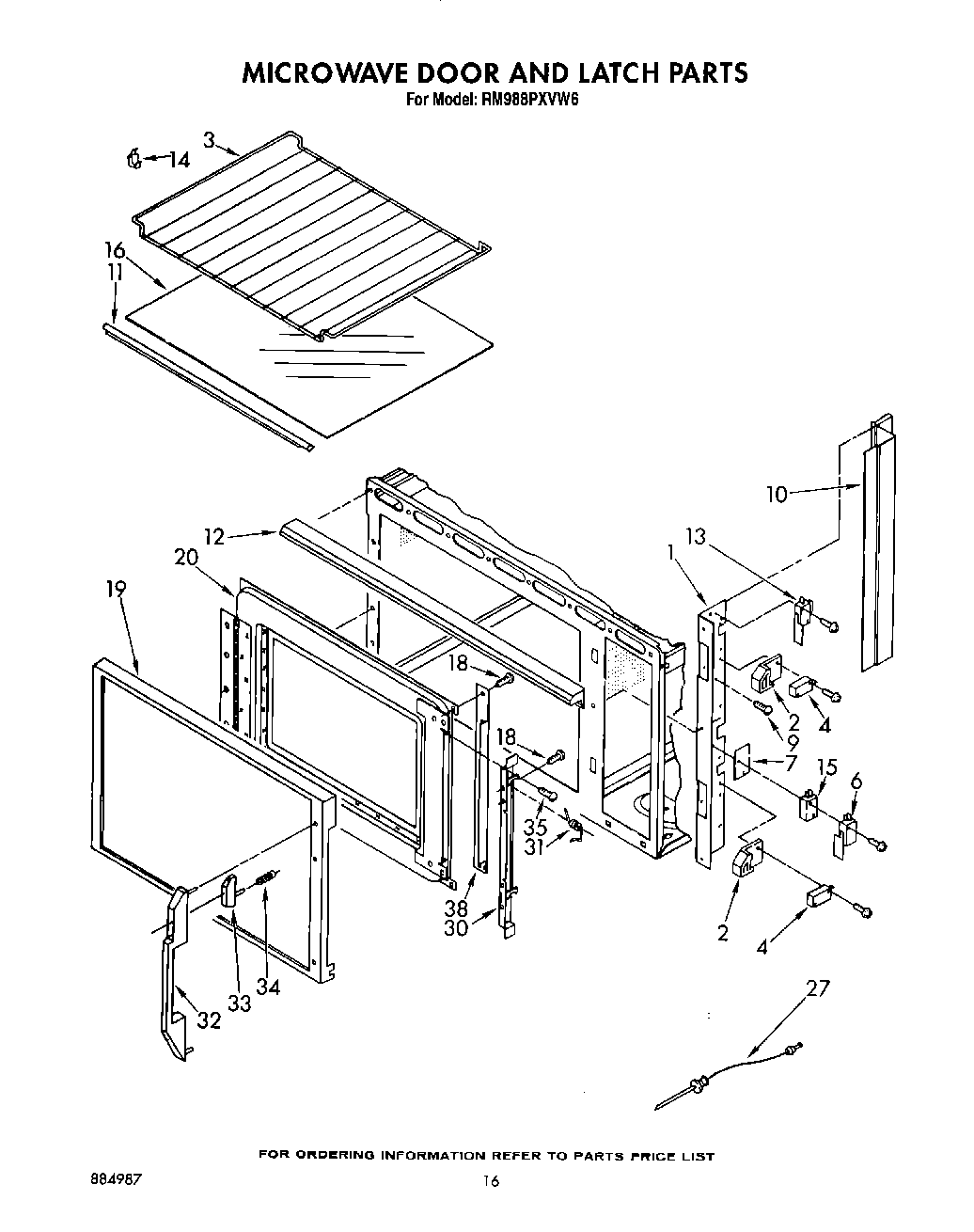

RM988PXVW6 10 – MICROWAVE DOOR AND LATCH, OPTIONAL

Products

Position	Product
1	Bracket, Catch
1	screw
2	Catch (2)
3	rack, wire
4	814037 Whirlpool Microwave Switch
6	Switch, Light/ Monitor
6	Screw, 4-40 x 10 (2)
7	Insulator
9	WPL 309080
10	Fastener (4)
10	shield
11	Trim, Shelf (Front)
11	Trim, Shelf (Rear)
12	Grille, Air
12	screw (3)
13	Switch, Miniature
13	WPL 312717
14	WP3149478 Whirlpool Microwave Support
15	Switch
16	Shelf, Microwave (Install with Silastic 482338)
18	303776 Whirlpool Dishwasher Screw
19	Frame, Door
20	WPW10068250 Whirlpool Dishwasher Screw
20	Door, Inner
27	(Alt.)
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	Button, Door Handle
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	Screw (2)
38	Recirculating Kit
38	WP75614 Whirlpool Connector
38	W10841140 Whirlpool Dishwasher Adhesive
38	Wire (14 Ga. 150 c Blue)
38	Golden Harvest (Uncut)
38	Screw, 8-22 (5)
38	Touch-Up, Oven
38	End Cap
38	261900 Whirlpool Microwave Spray
38	Grease
38	Leveler (Thinner) (2oz.)
38	511873 Whirlpool Refrigerator Paint
38	350942 Whirlpool Spray Paint
38	WPL 72112
38	Platinum (Uncut)
38	Enamal, Toast (1 Qt. Uncut)
38	Paint, Spray (13 Oz.) (Platinum)
38	Toast
38	Golden Harvest
38	72113 Whirlpool Touch-Up Paint
38	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
38	Almond (Uncut)
38	WP72107 Whirlpool Touchup
38	799344 Whirlpool Refrigerator Paint
38	72017 Whirlpool Appliance Touch-Up Paint White
38	350956 Whirlpool Spray Assembly
38	Enamel, Black (1 Qt. Uncut)
38	WPL 799832
38	Wire, 25` Roll (Black 14 Ga.)
38	WPL 591014
38	1
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	WP261869 Whirlpool Microwave Paint
38	242831 Whirlpool Oven Wire
38	72032 Whirlpool Touch Up Paint Black
38	285006 Whirlpool Spray
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	350930 Whirlpool White Spray Paint
