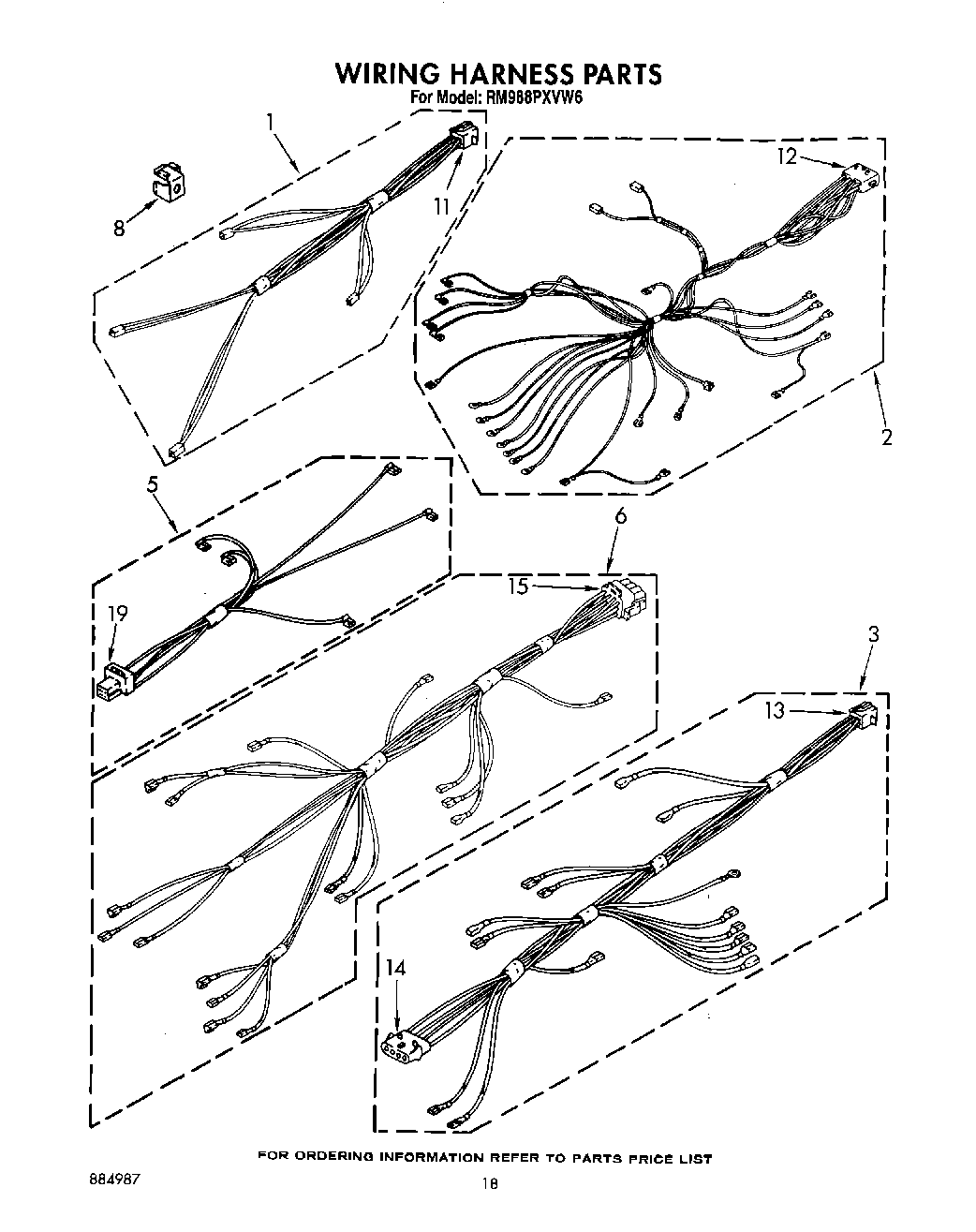

RM988PXVW6 11 – WIRING HARNESSES

Written by

Products

Position	Product
1	Harness, Wiring Surface Unit
2	16515 Whirlpool Clip
2	Wiring Harness (Main, Oven)
3	Harness Wiring Vent Motor
5	Harness Wiring Switch, Rocker
6	Wiring Harness (Select/Therm)
8	screw
8	Adapter, Terminal
11	Plug, Male
12	Disconnect Block
13	Disconnect Block
14	Disconnect Block, Female
15	Disconnect Block
19	WPL 3147361
