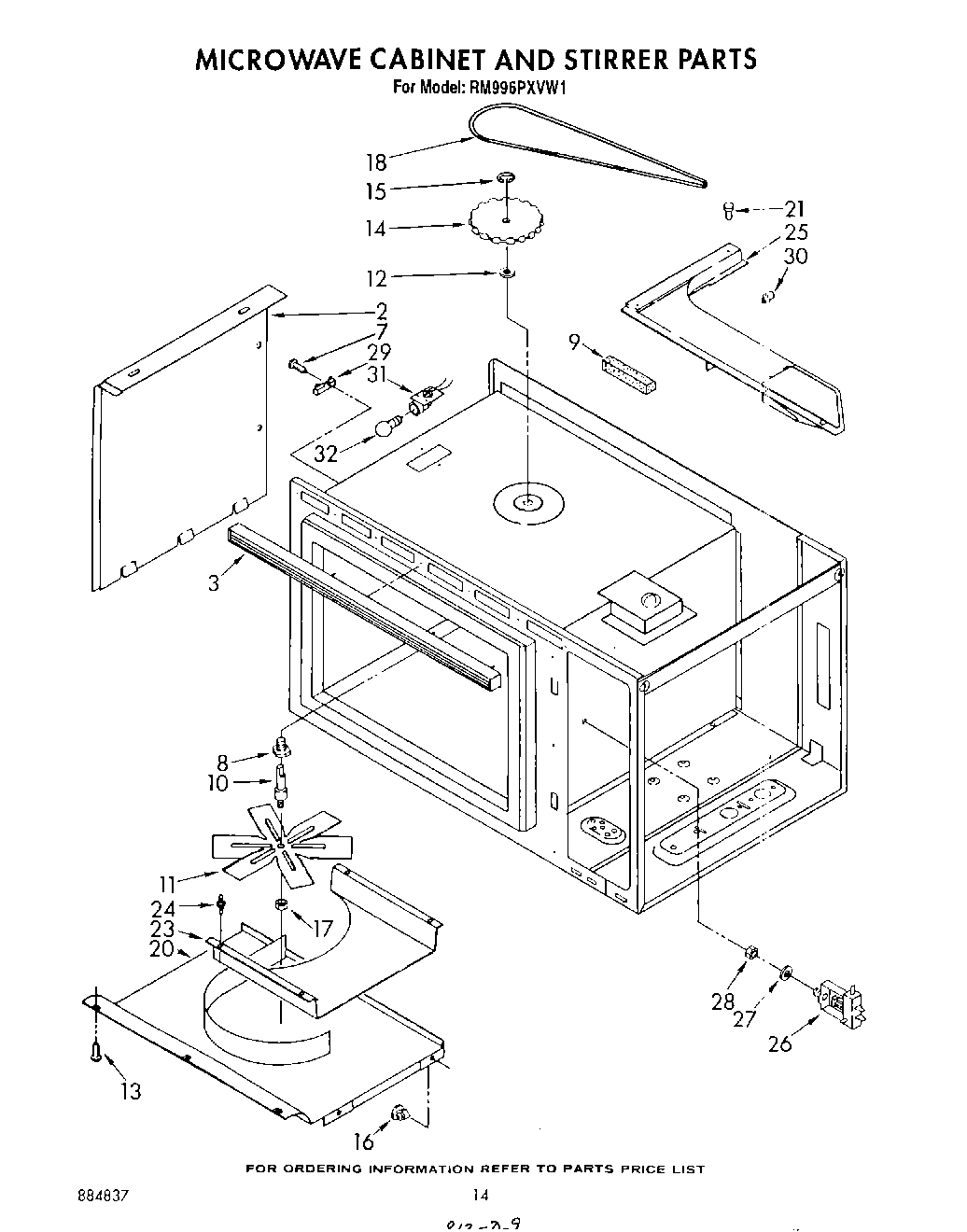

RM996PXVN1 09 – MICROWAVE CABINET AND STIRRER

Products

PositionProduct
2WP488729 Whirlpool Refrigerator Door Screw
2Cover, Side
3grille, air
8Bushing, Stirrer
9Seal, Foam
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
13screw, 8-32 x 1/2 (3)
14Pulley, Stirrer Blade
15“E“ Ring
16Fastener (4)
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Silicone Rubber Gasket
21Fastener (2)
23Plate, Tuning
24Thermostat
24Screw
24Support (4)
25Baffle, Air Exhaust
26Probe Jack
27Washer, Internal Lock
28Nut
29Fuse, Thermal
30Sensor, Gas
31Snap-In Socket
31screw
32WP3395618 Whirlpool Light Bulb
